MACHINE TOOL SALES

DETAIL

Item No

0000001002

Type

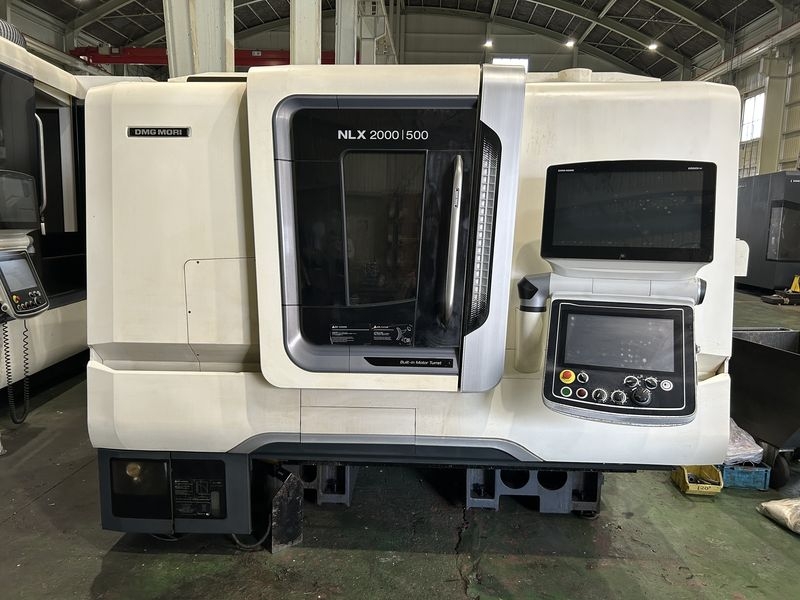

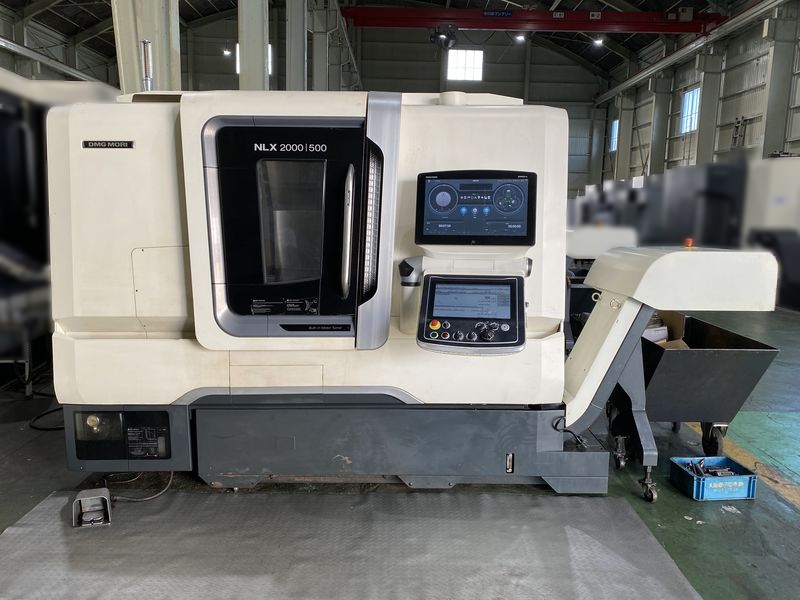

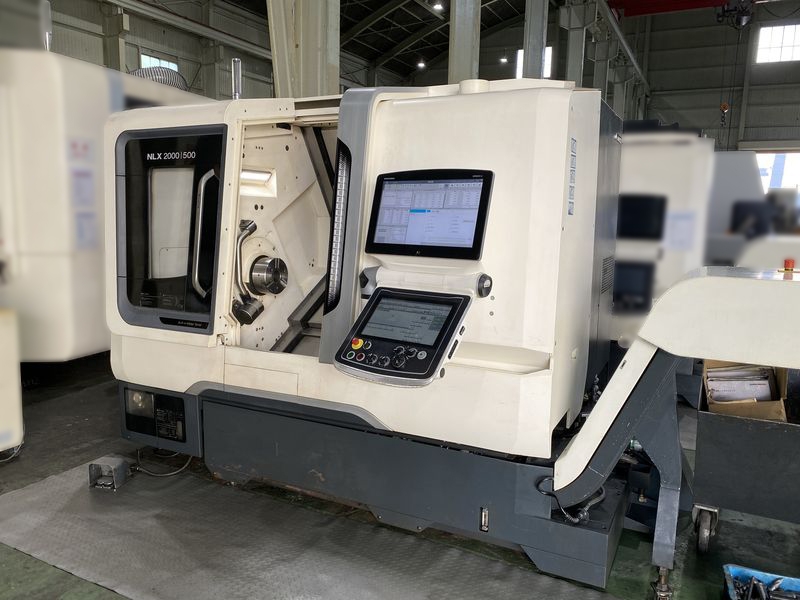

CNC Multi-tasking Lathe
Maker
MORI SEIKI
Model

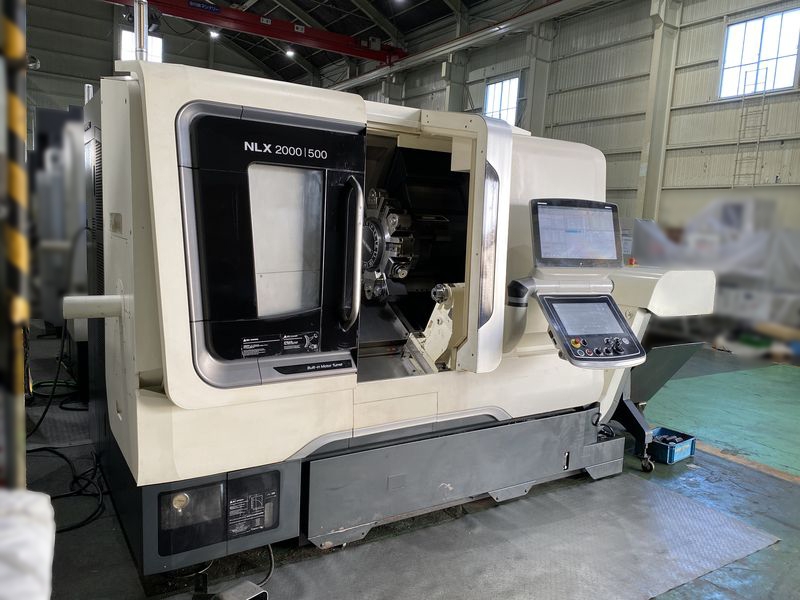

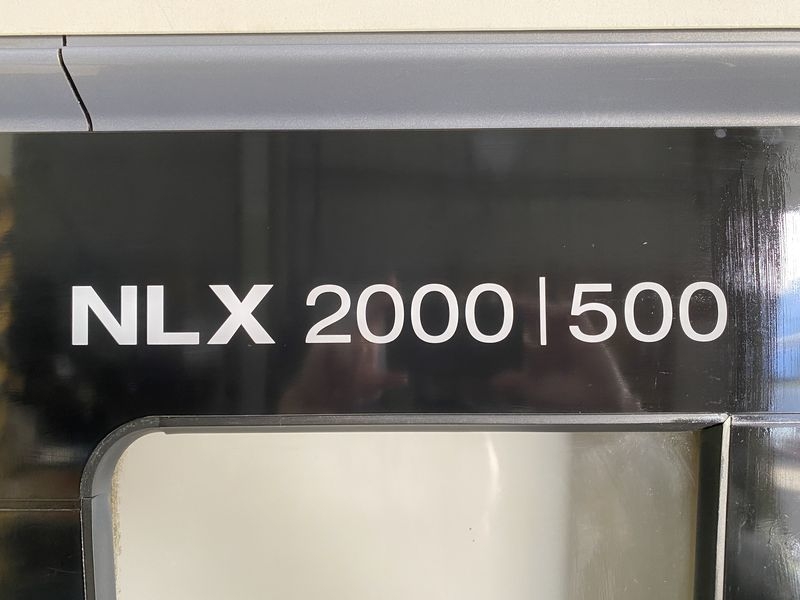

NLX2000Y/500
MFG Year
2016
Movie
Specification
1 2
Comment

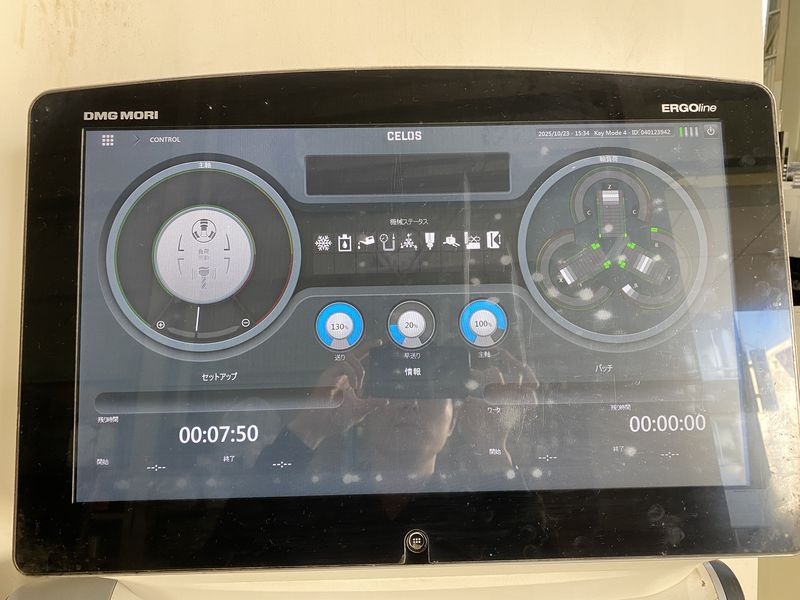

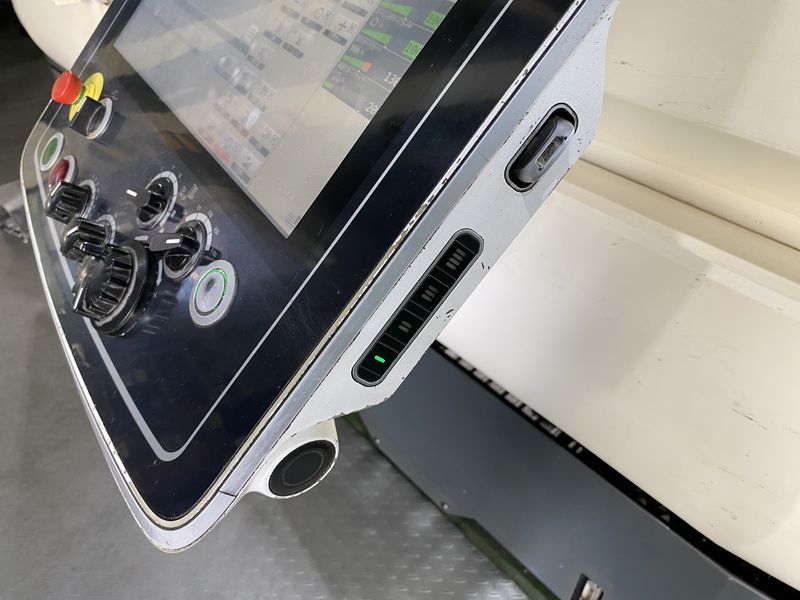

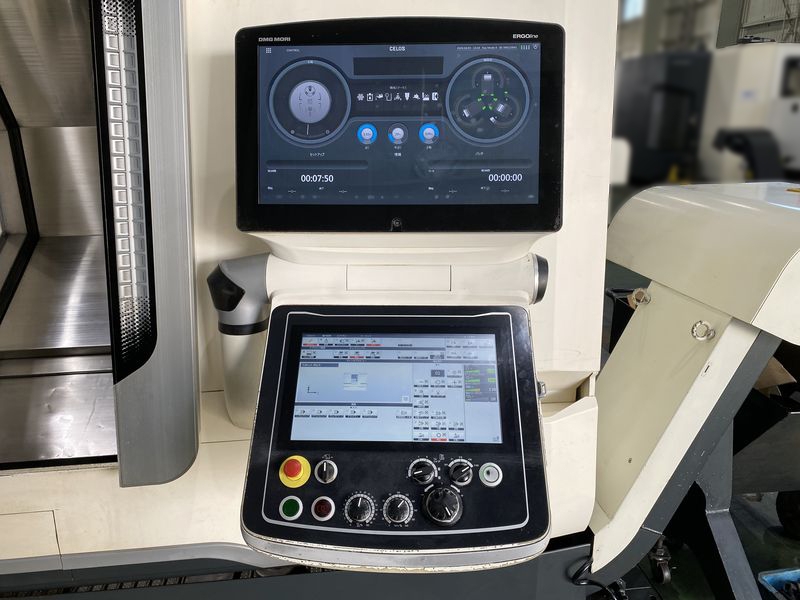

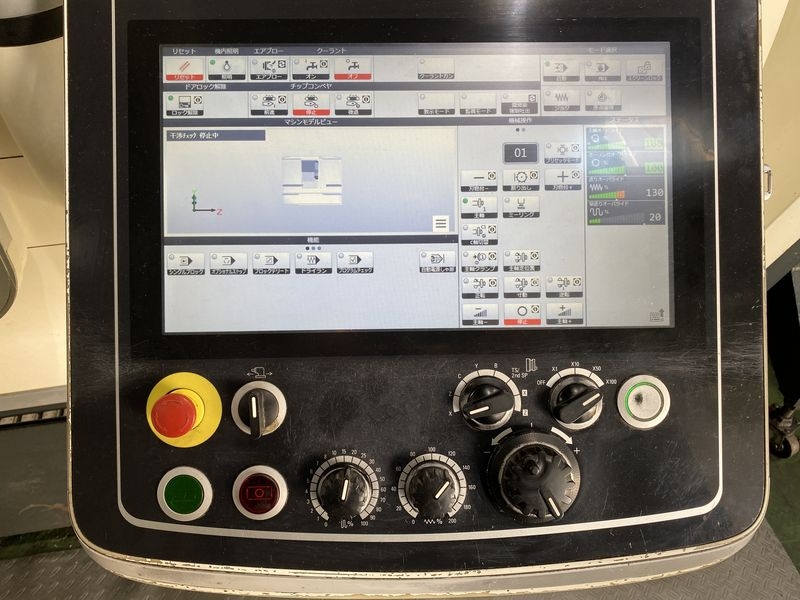

Control unit: CELOS ERGOline Meldas M730UM
Swing over bed: 923.8 mm
Swing over cross slide: 755 mm
Maximum turning diameter: 366 mm
Standard turning diameter: 271 mm
Maximum turning length: 510 mm
Travel X: 260 Y: 100 (±50)
Z: 590 mm C: 0.001°
Spindle speed: 5,000 rpm
Through-spindle hole diameter: φ73 mm
Spindle nose shape: JIS A2-6

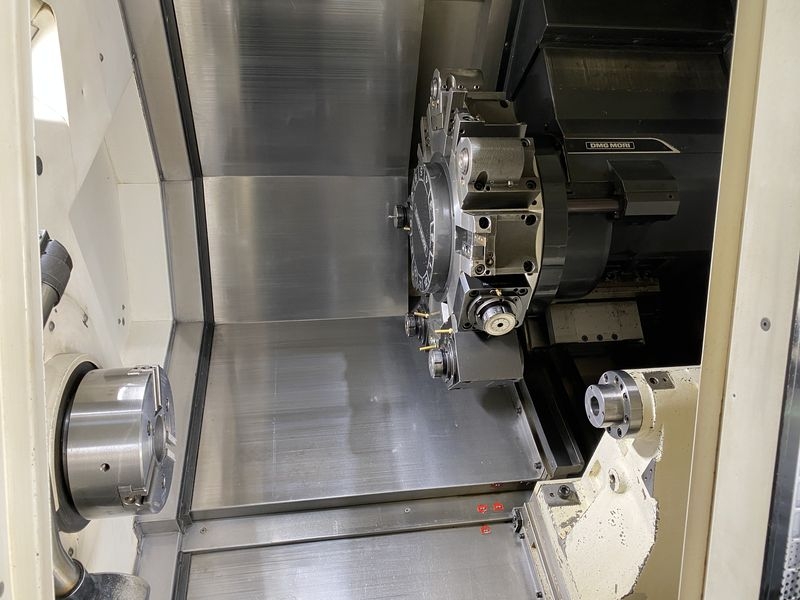

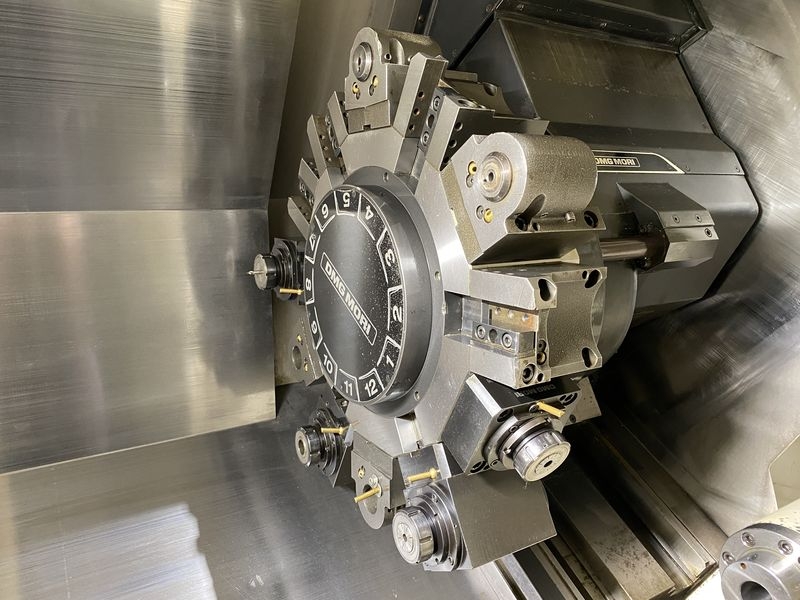

Turret: 12 stations
Turret tool speed: 10,000 rpm

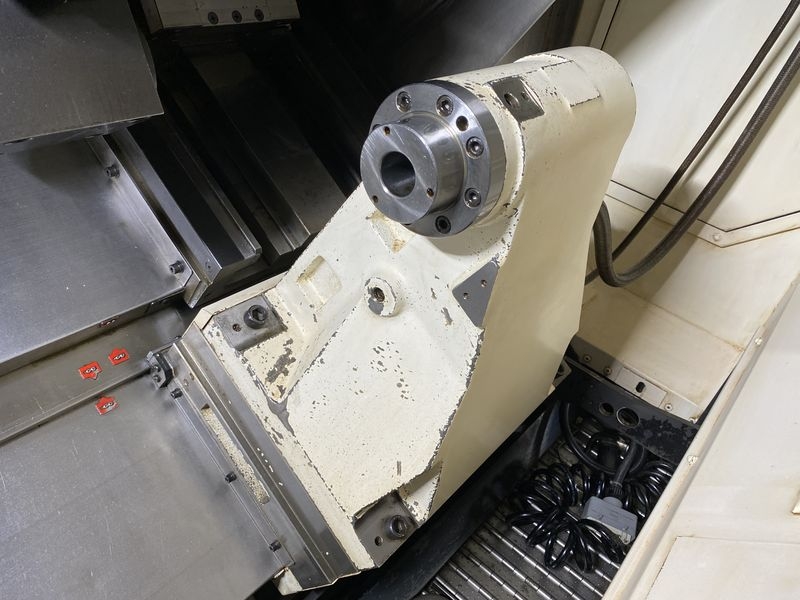

Tailstock travel: 564 mm
Tailstock taper hole: MT4

Required floor space: 3,526 x 2,082 mm
Machine height: 2,145 mm
Machine weight: 5,100 kg

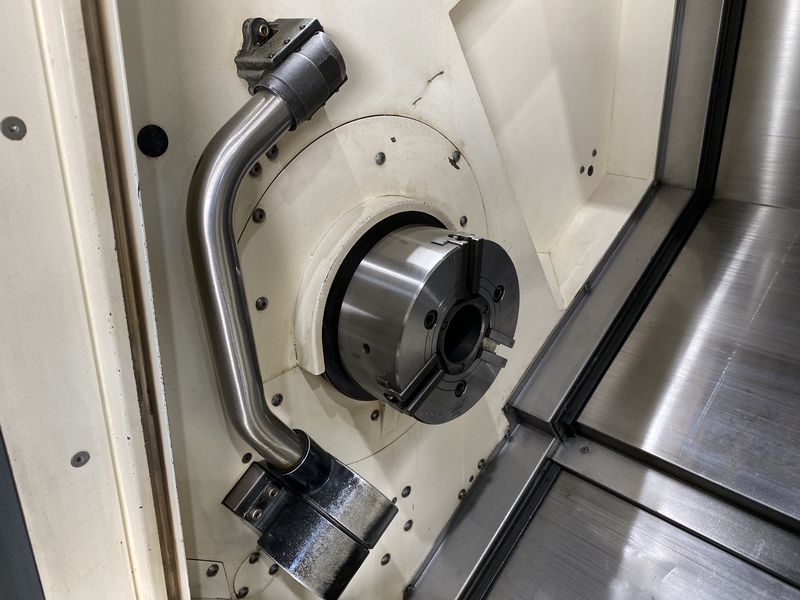

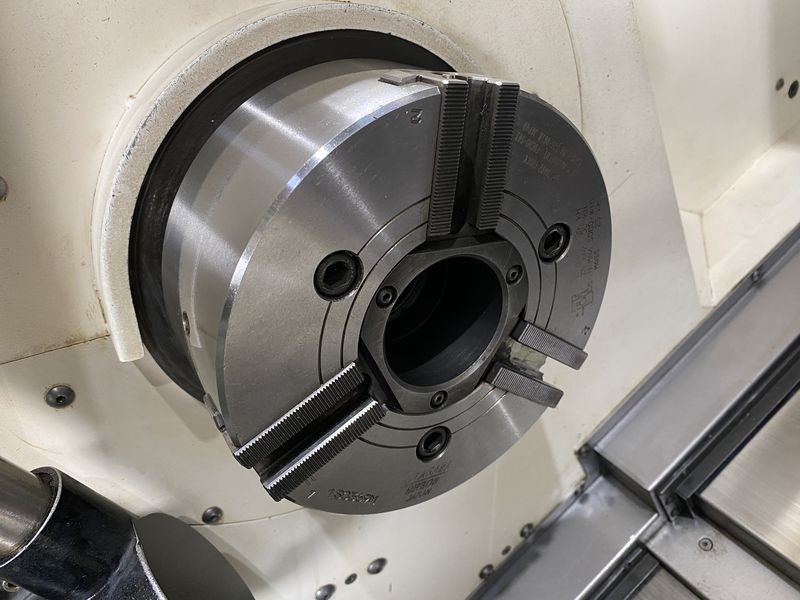

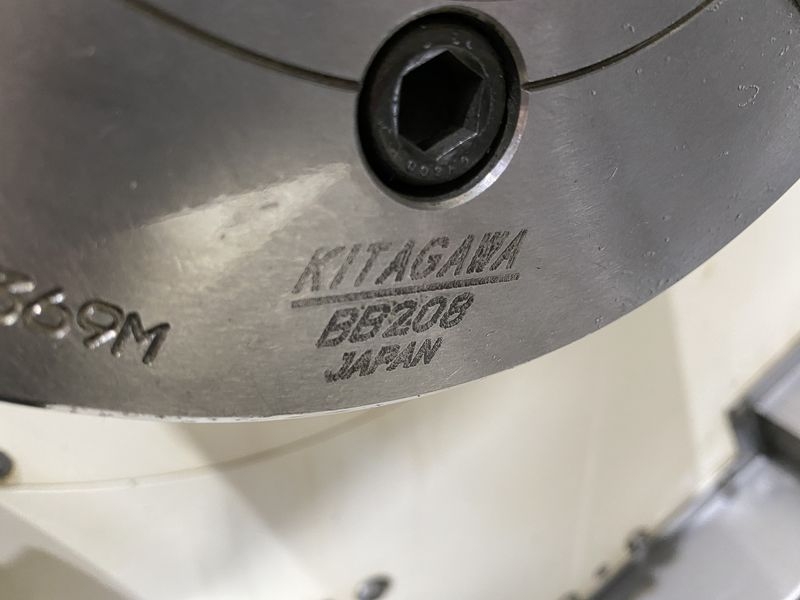

8-inch 3-jaw hollow chuck BB-208 (Kitagawa)

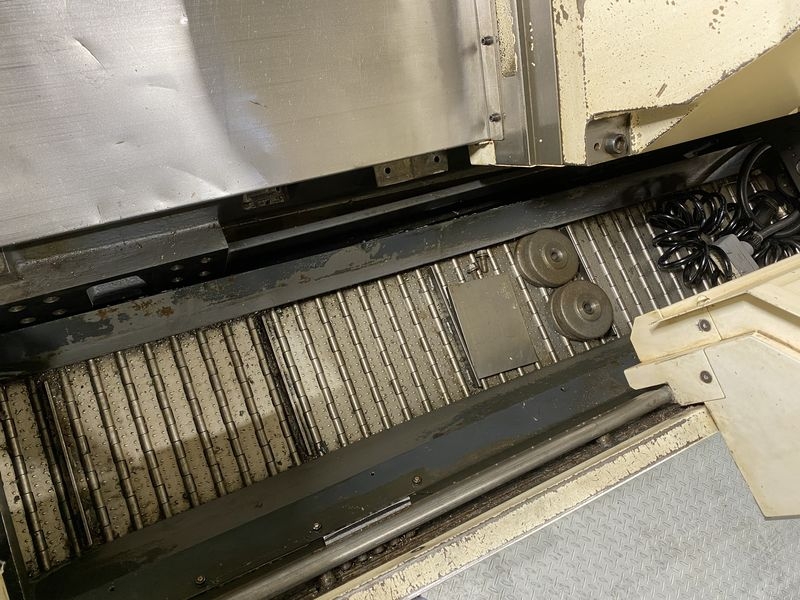

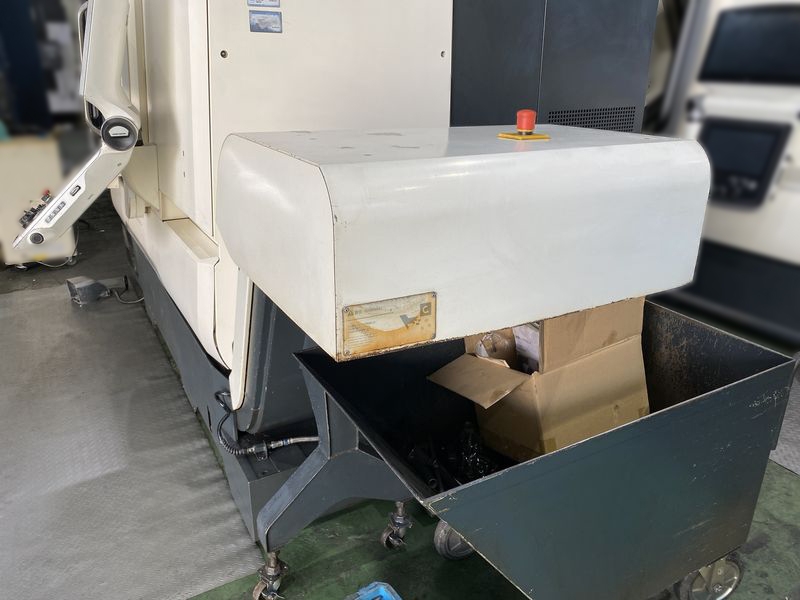

Chip conveyor (front right discharge)
On-board tool printer
MAPPS V (interactive)
Rigid tap
Relocation detection function

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
