DETAIL
- Item No
0000001032
- Comment

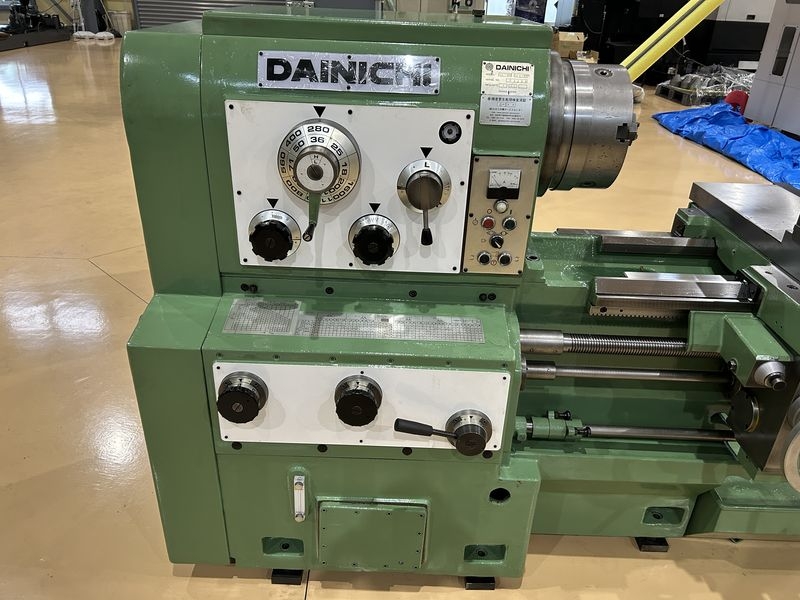

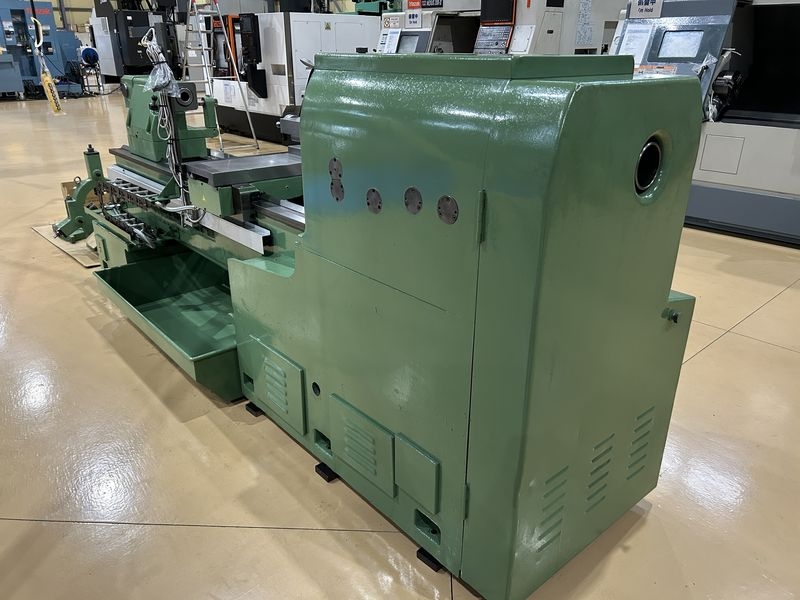

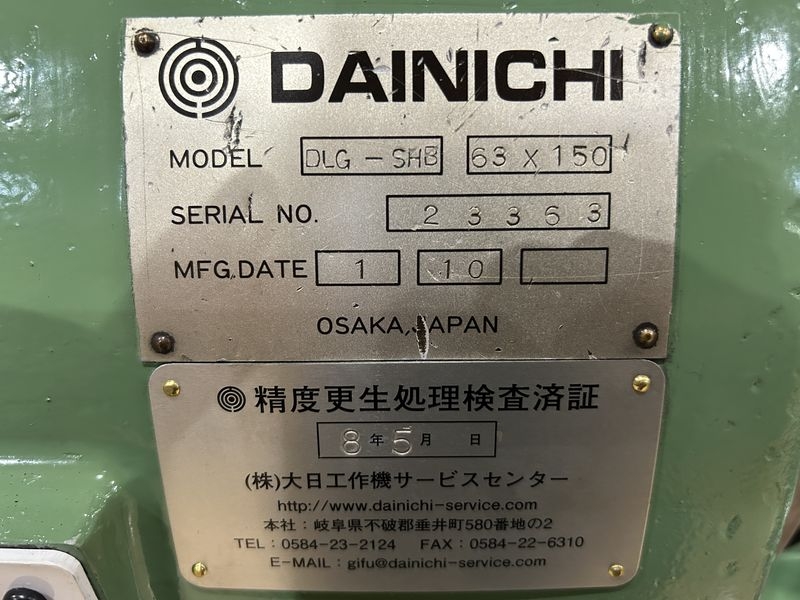

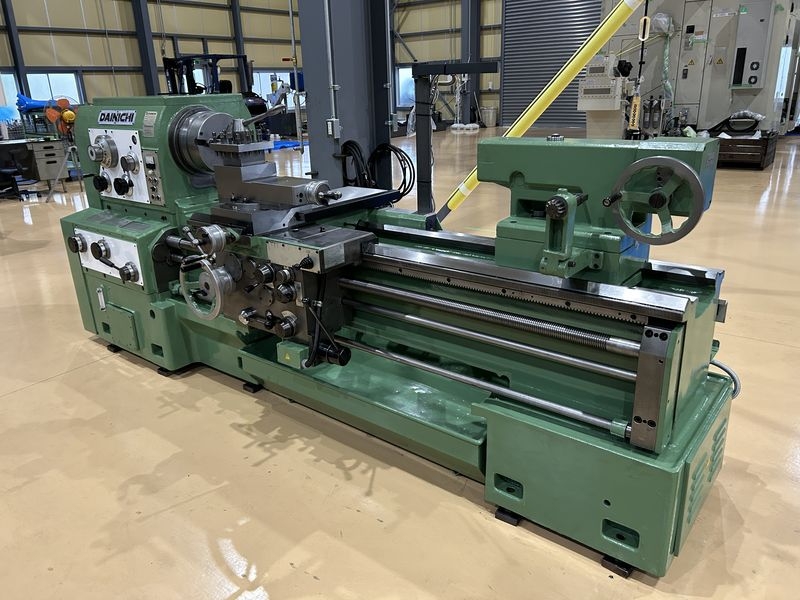

- Renewal machine (1989year Bass)
Swing over bed: φ630 mm
Swing over cross slide: φ400 mm

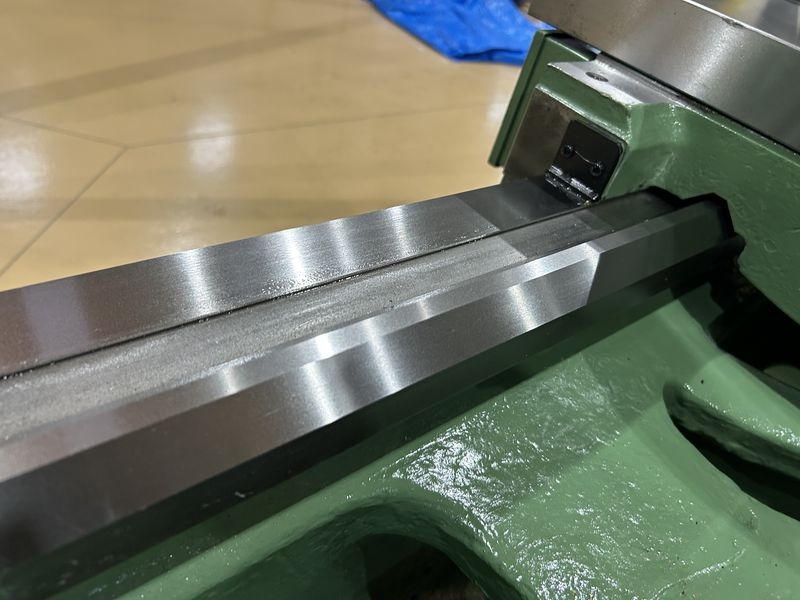

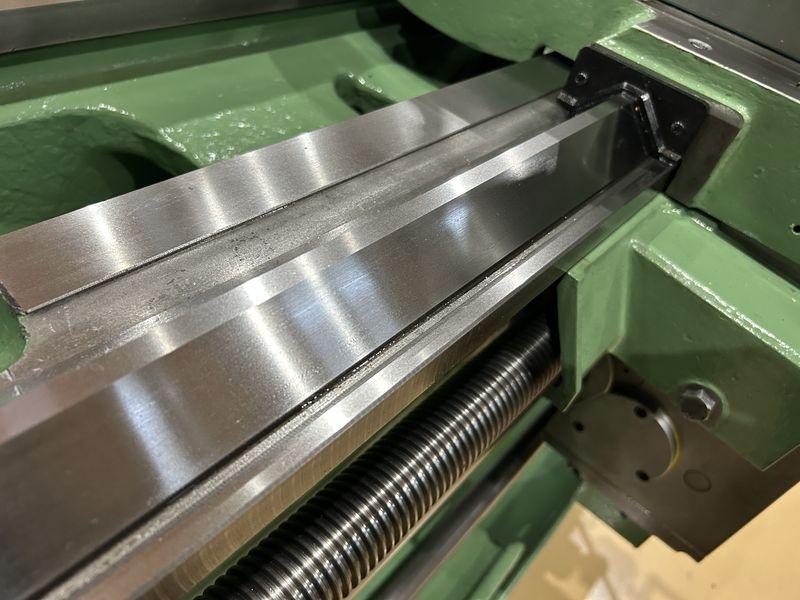

Bed width: 425 mm
Spindle nose type: JIS A1‑11
Spindle bore diameter: φ84 mm

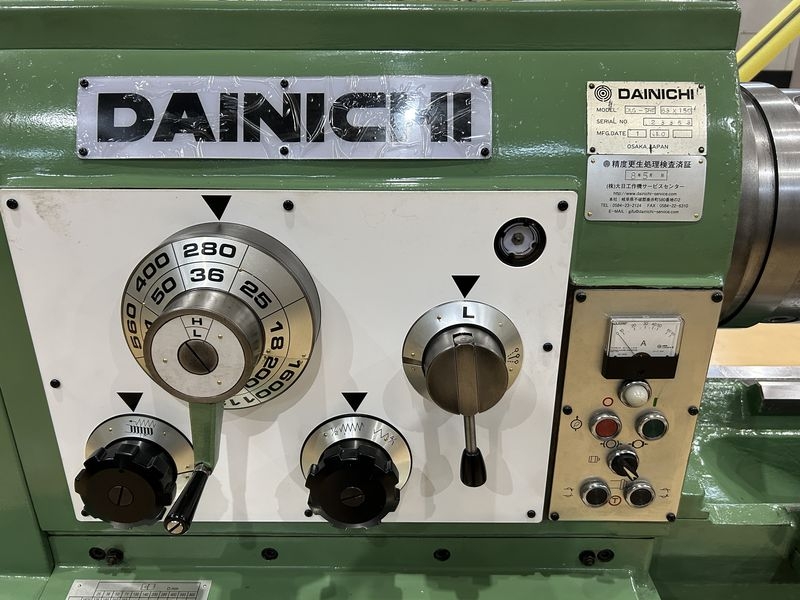

Spindle speed: 18–1,600 rpm (14 steps)
Cross slide travel: 380 mm
Top slide travel: 200 mm
Center size: Morse Taper No.5

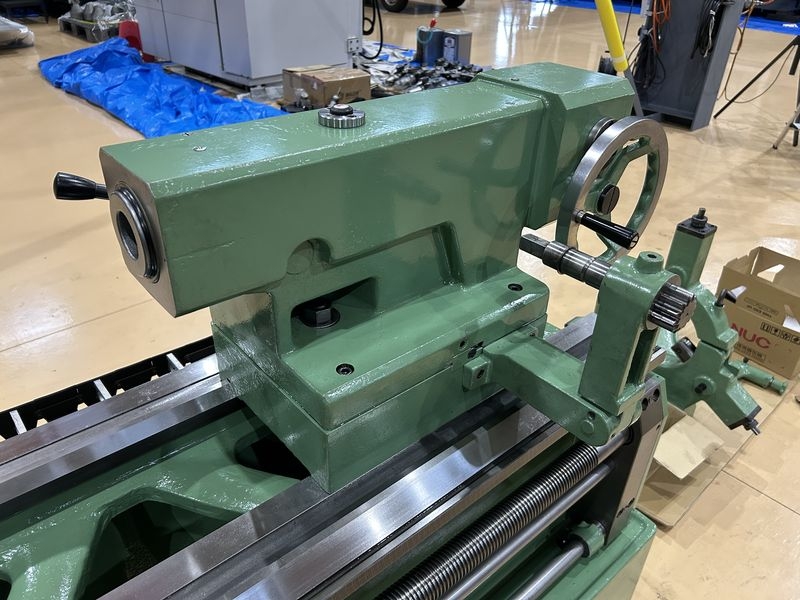

Tailstock quill travel: 200 mm (2‑step switching)
Maximum distance between centers: 1,500 mm

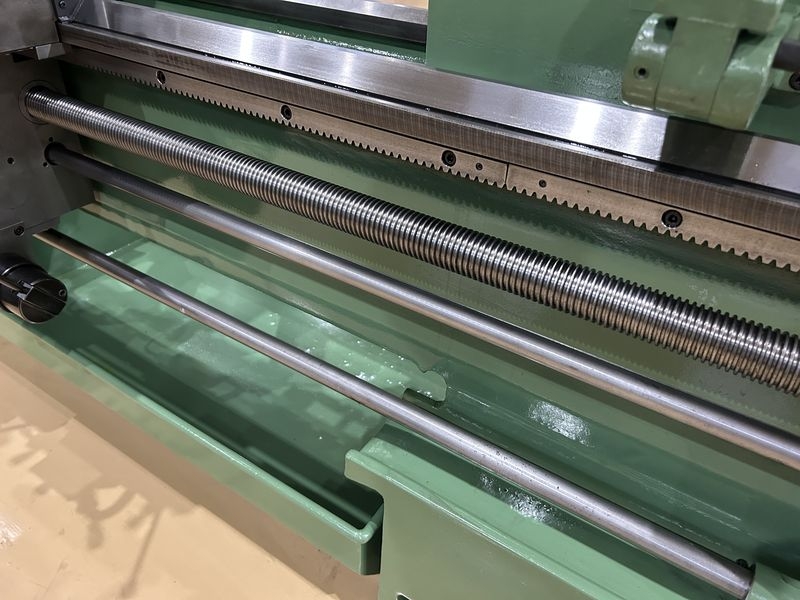

Leadscrew: Metric
Required floor space: 3,250 × 1,050 mm
Machine weight: 2,800 kg

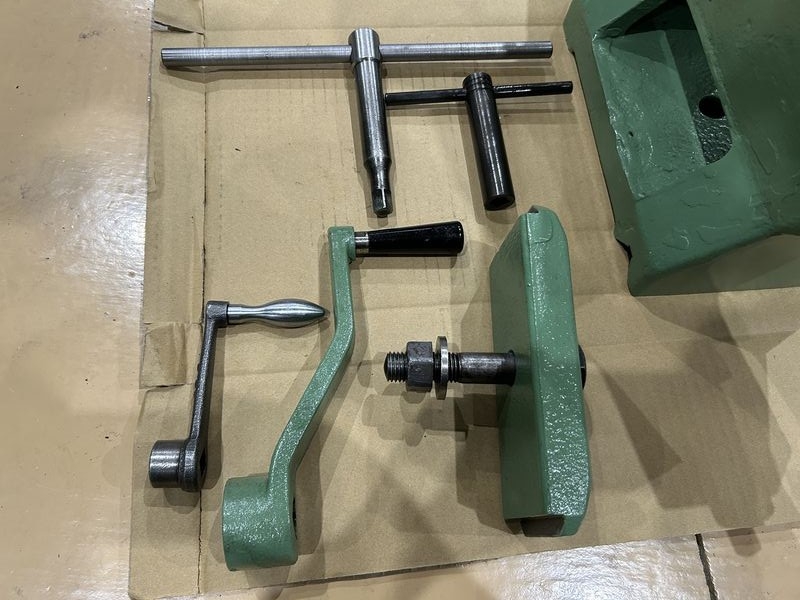

Accessories / Equipment

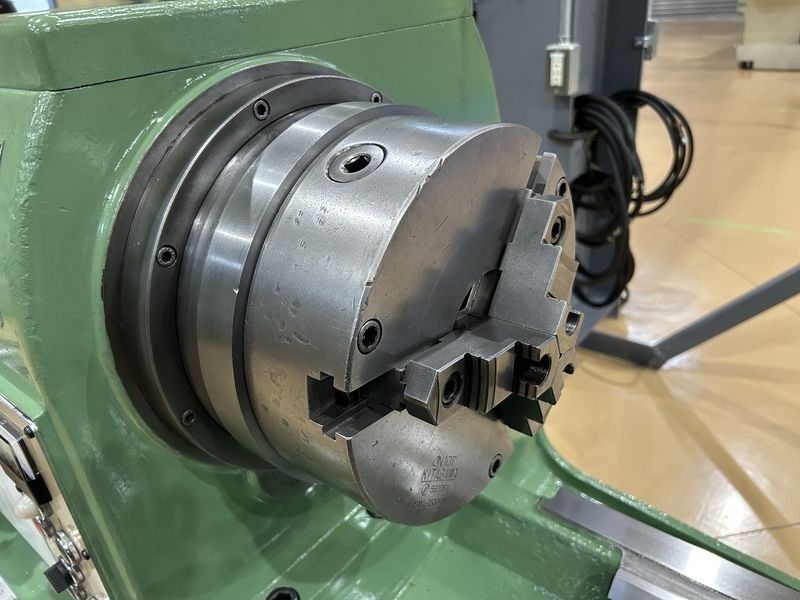

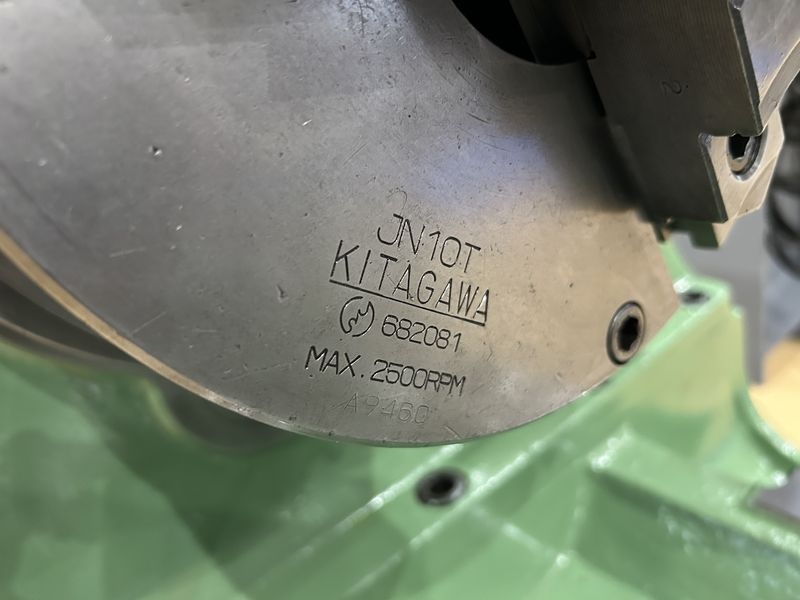

3‑jaw chuck, φ273 mm

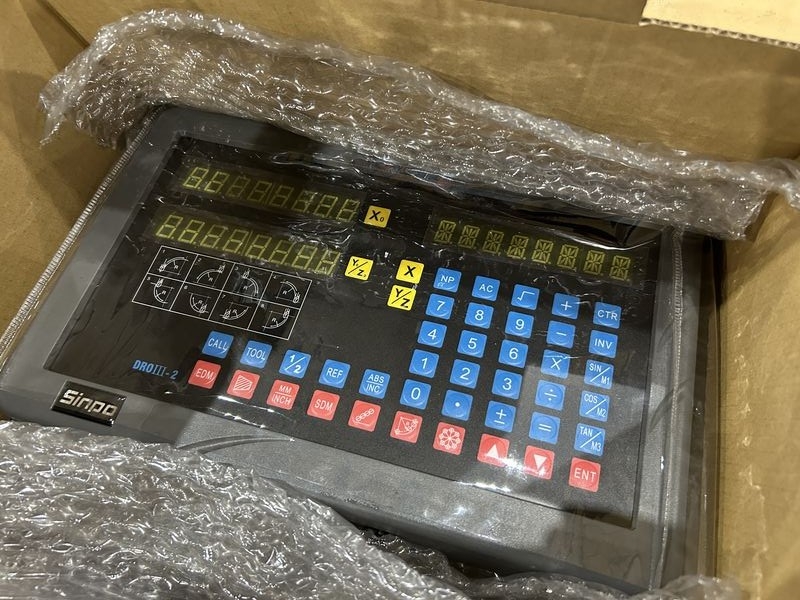

Z‑axis presetting device

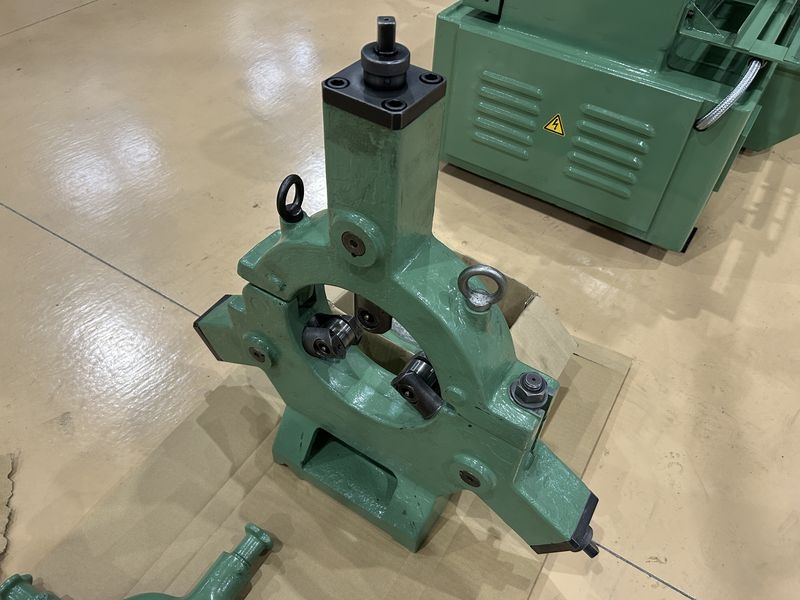

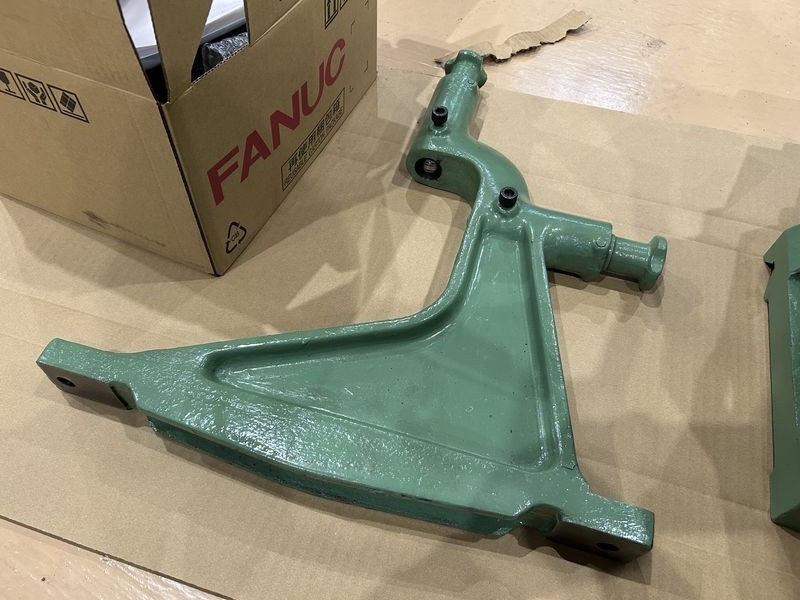

Fixed steady rest, φ200 mm
Travelling steady rest

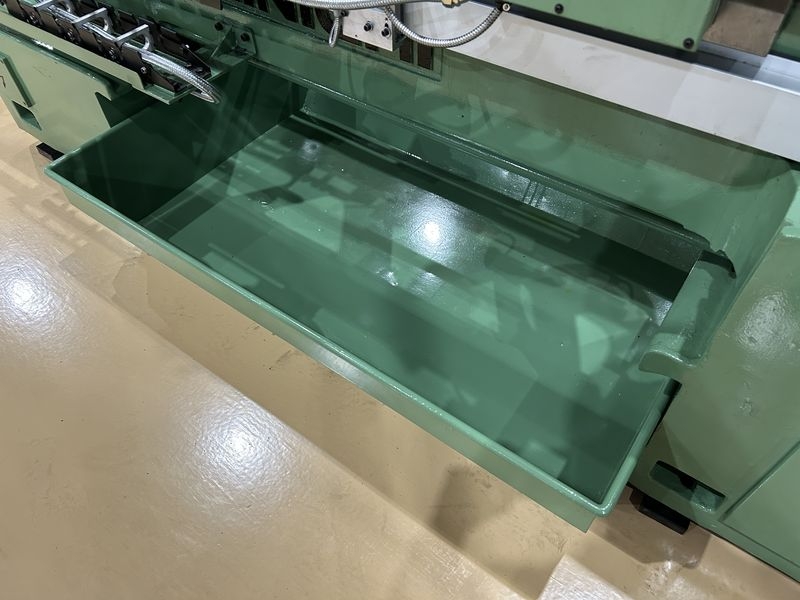

Chip tray
No cutting‑oil unit
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
