DETAIL
- Item No
0000001034
- Comment

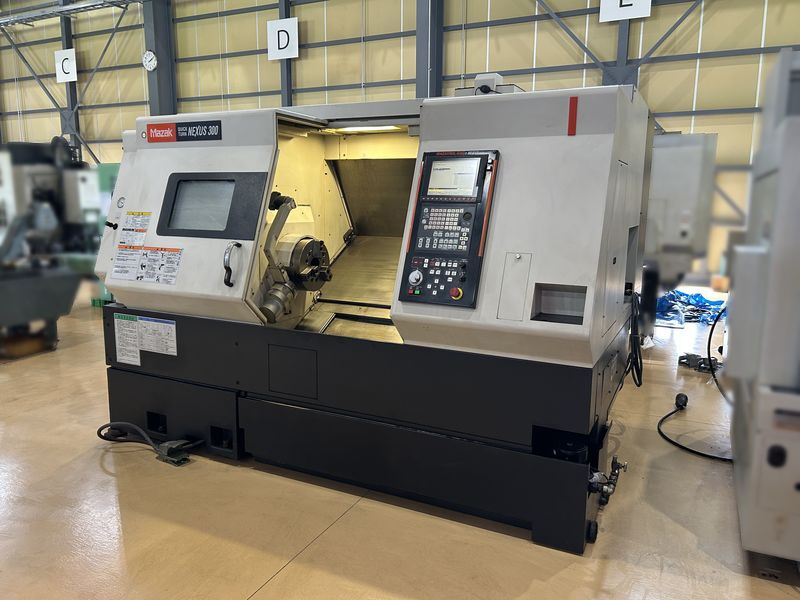

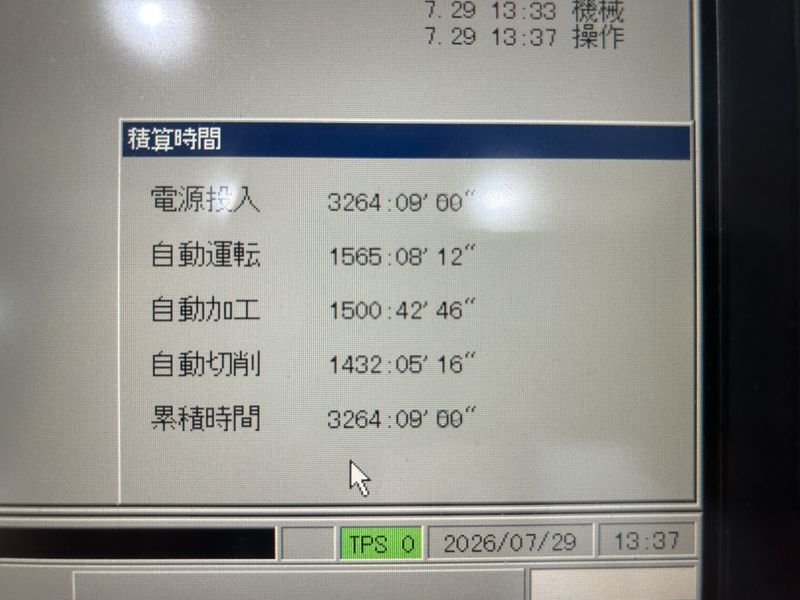

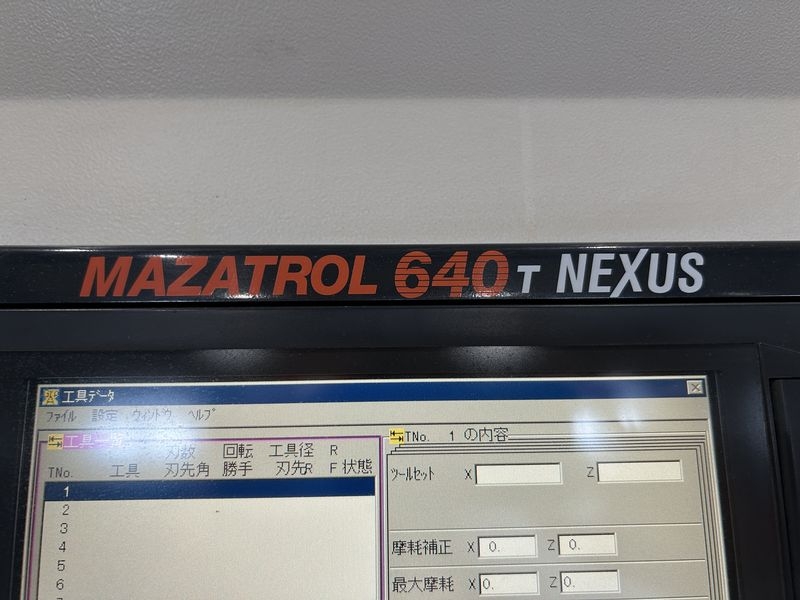

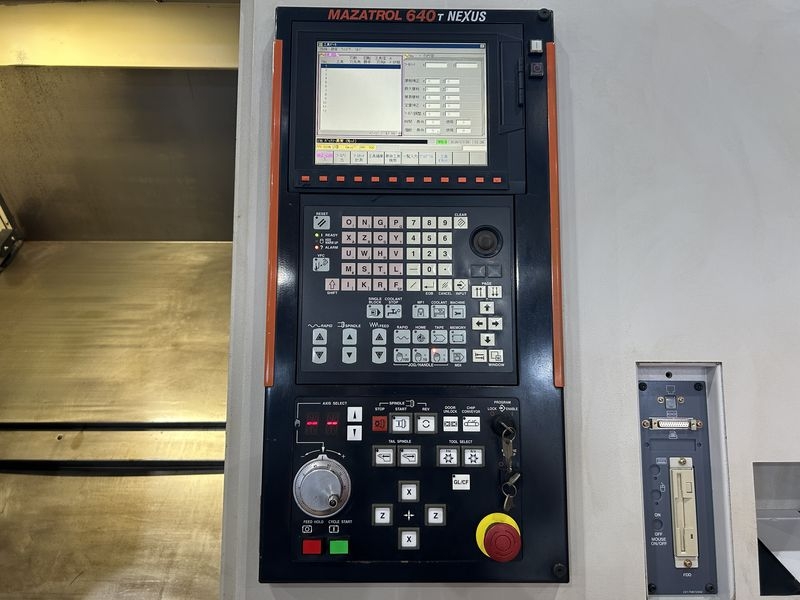

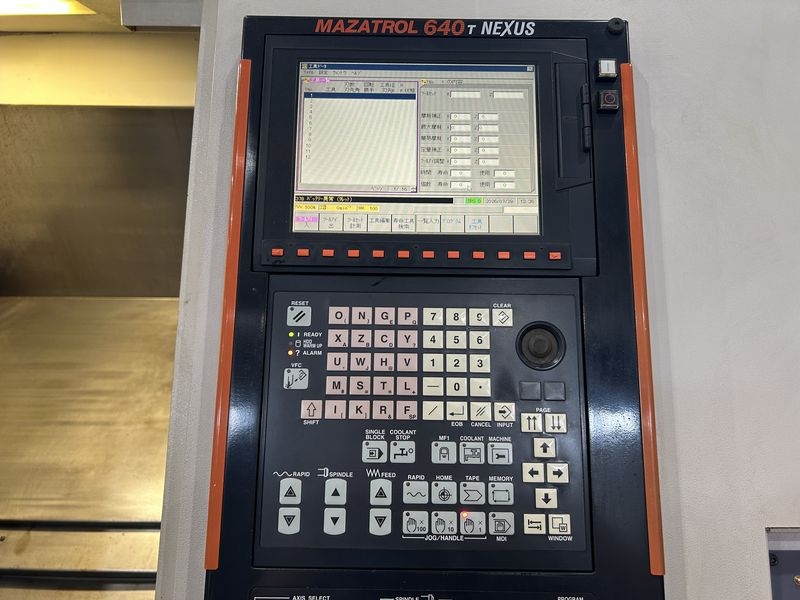

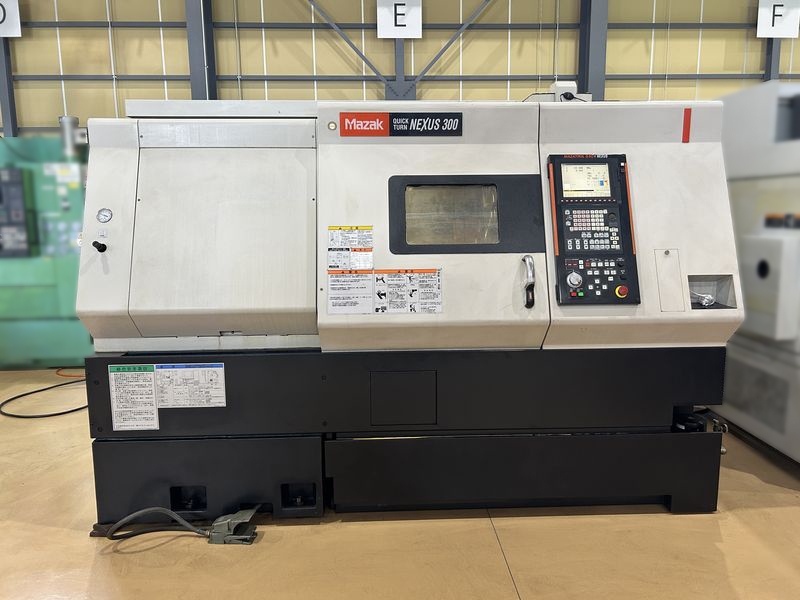

- Control unit: MAZATROL 640T NEXUS
Maximum swing: φ680 mm
Standard machining diameter: φ264 mm
Maximum machining diameter: φ420 mm
Distance between spindle nose and turret : 142～822 mm
Travel X, Y: 225 ｘ 680 mm
Maximum spindle speed: 35～4000 rpm
Spindle through-hole diameter: φ88 mm

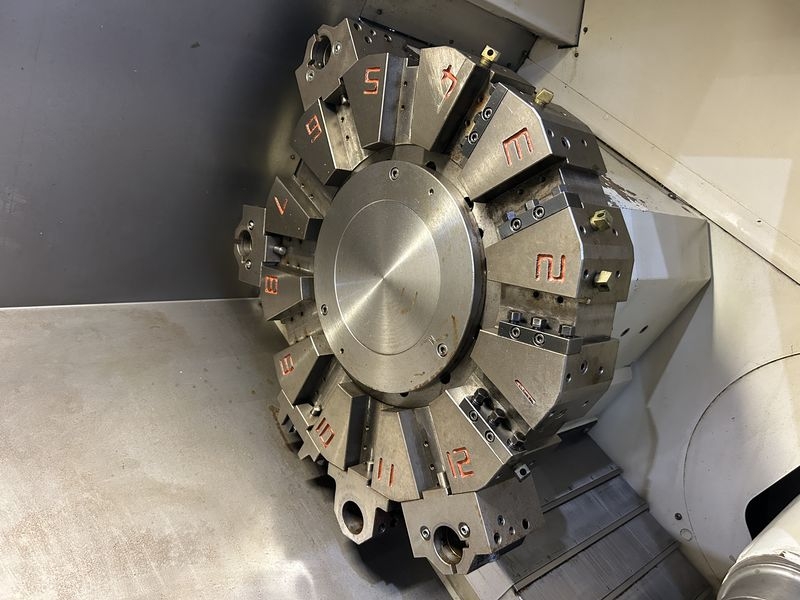

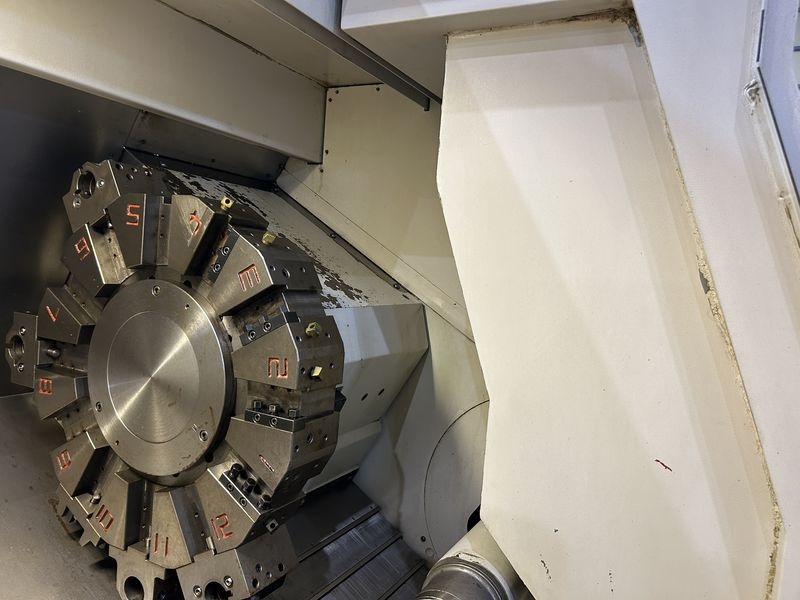

Turret type: 12‑station drum turret

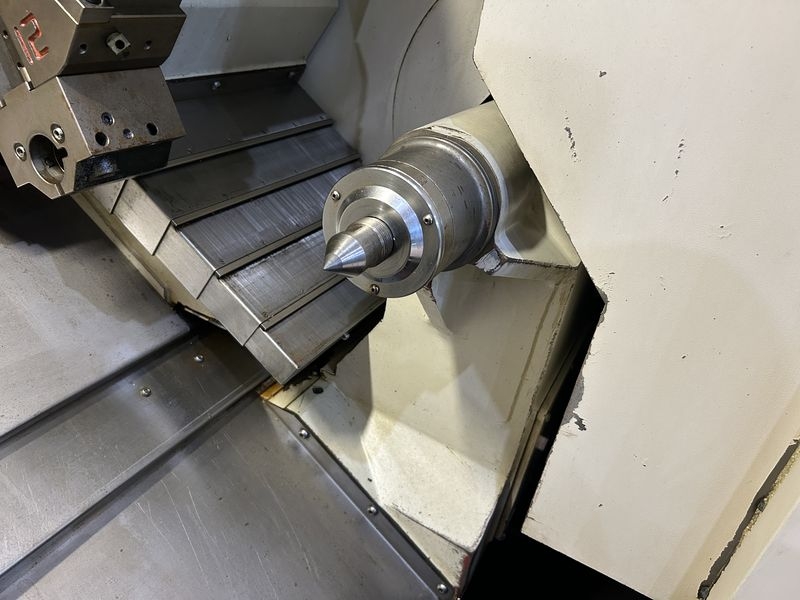

Tailstock travel: 645 mm

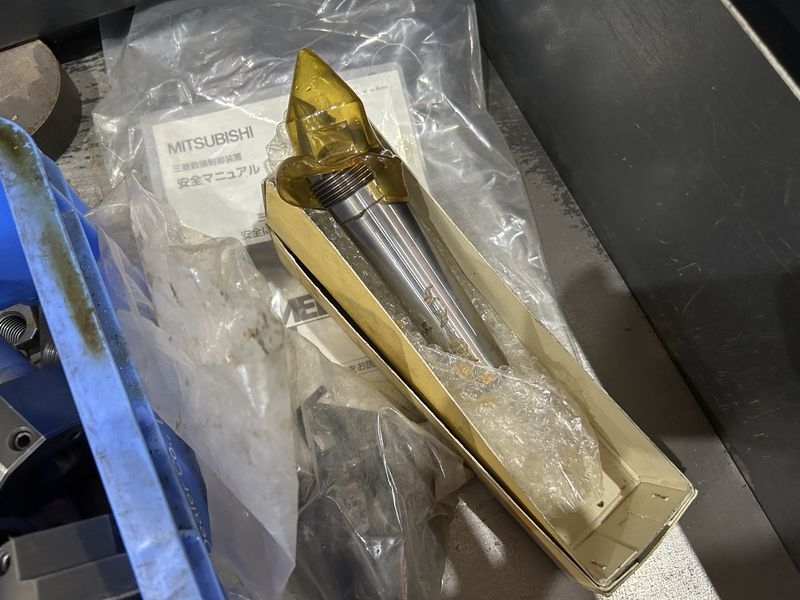

Tailstock taper: MT No.5
Center distance: 650 mm
Required floor space: 2,050 × 2,880 mm
Machine height: 2,000 mm

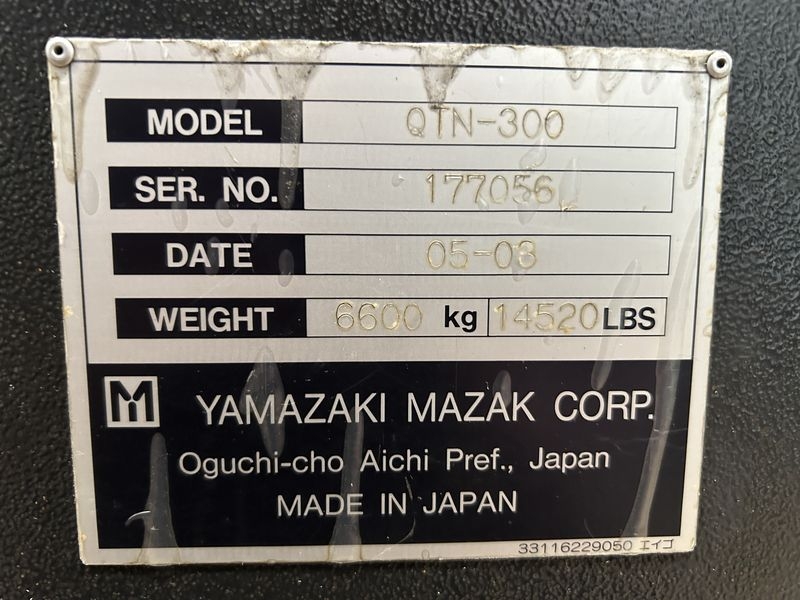

Machine weight: 6,600 kg

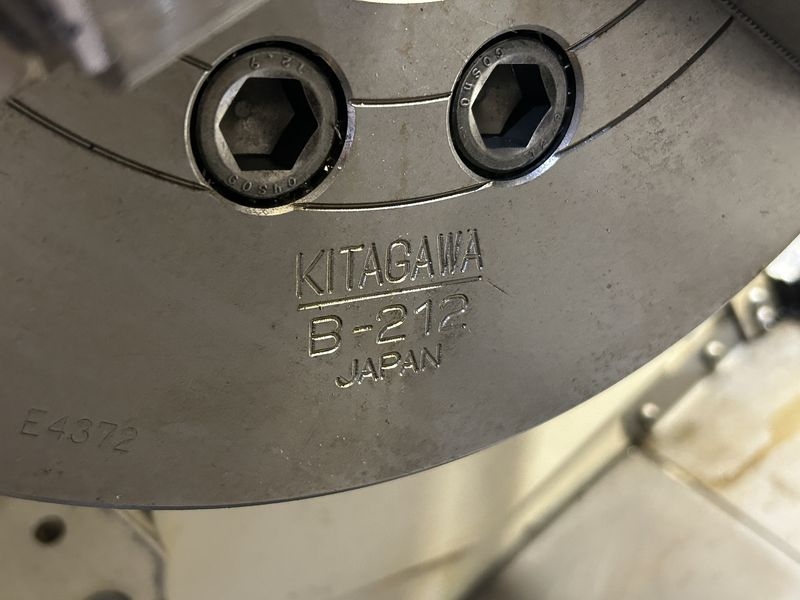

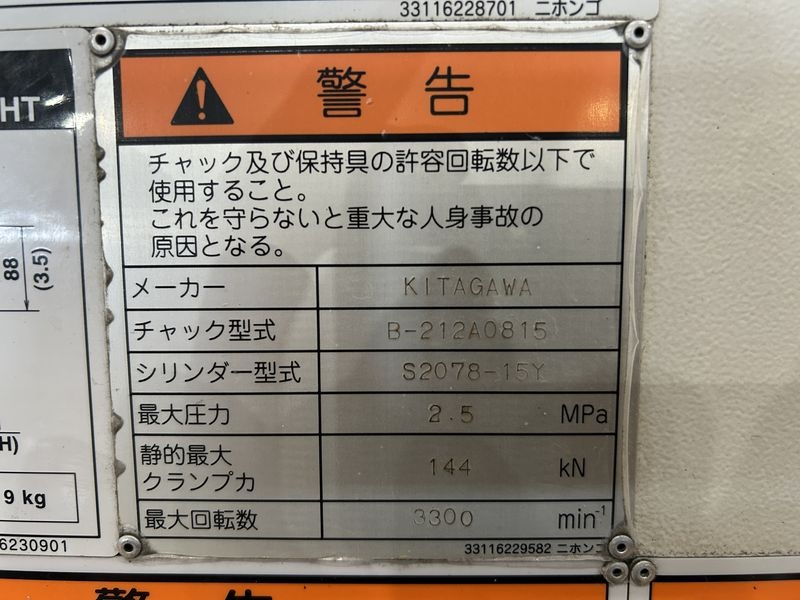

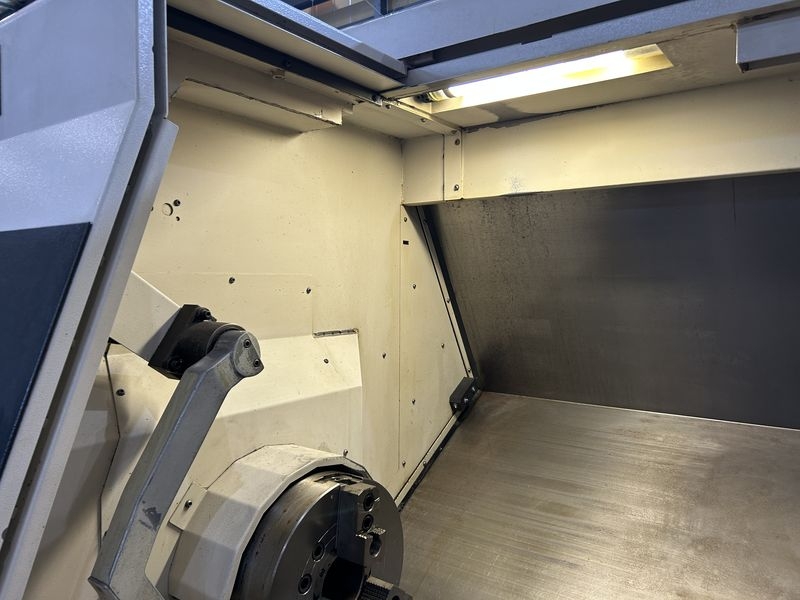

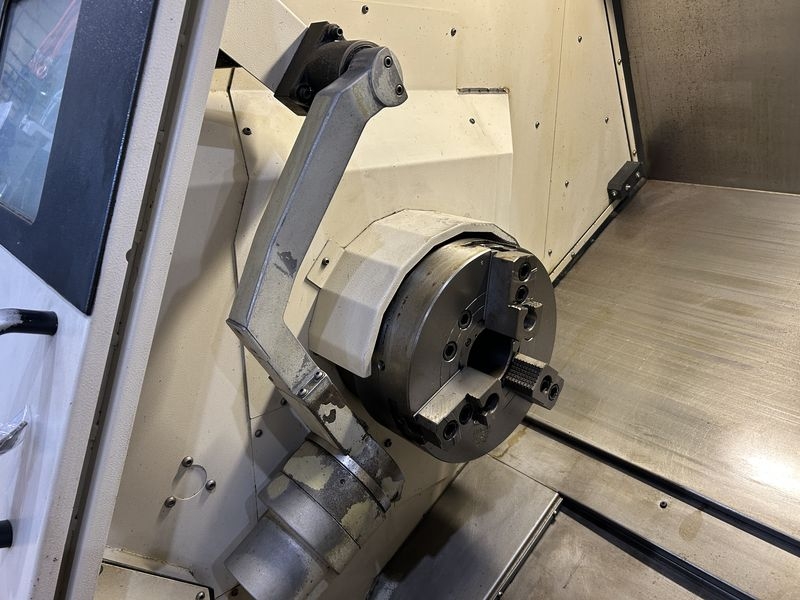

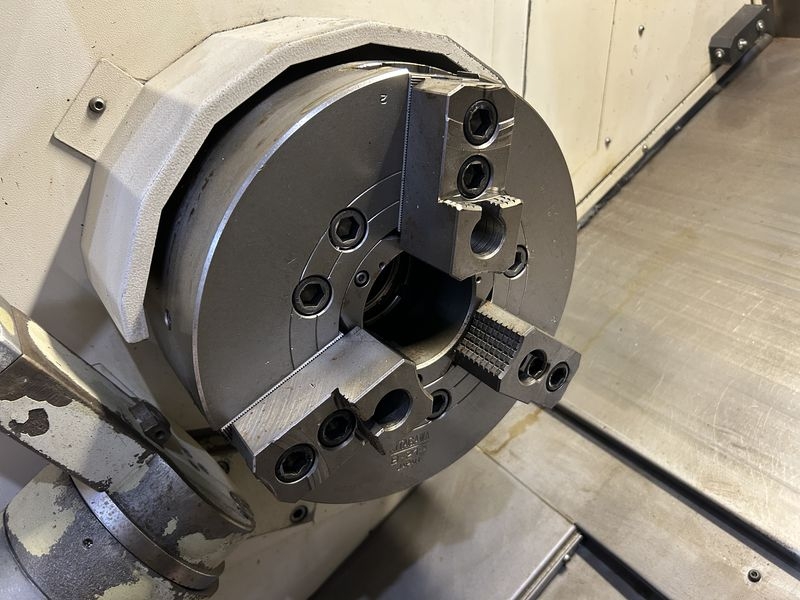

10‑inch chuck
Coolant tank: 210 L

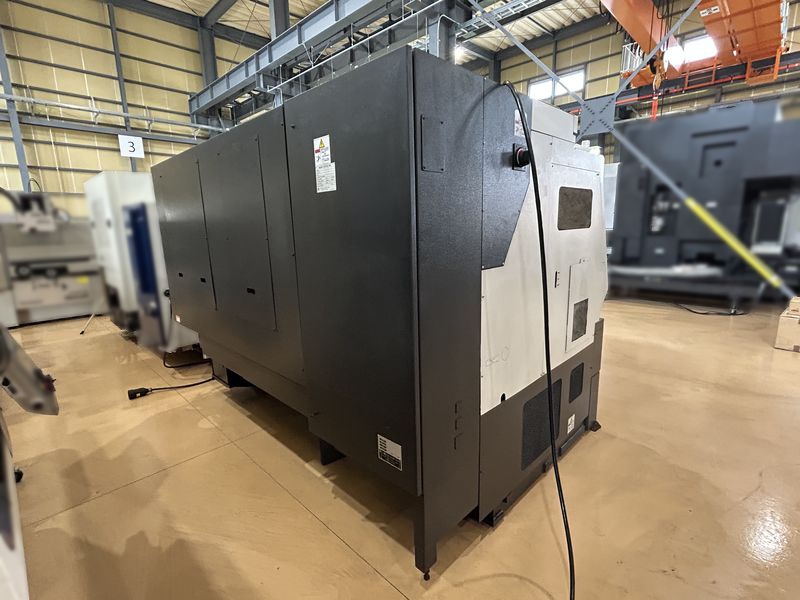

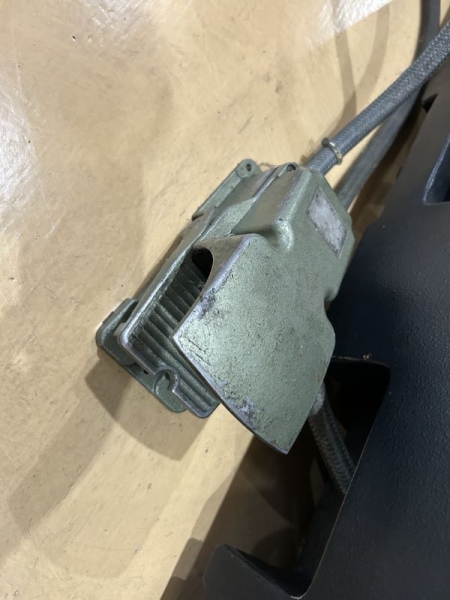

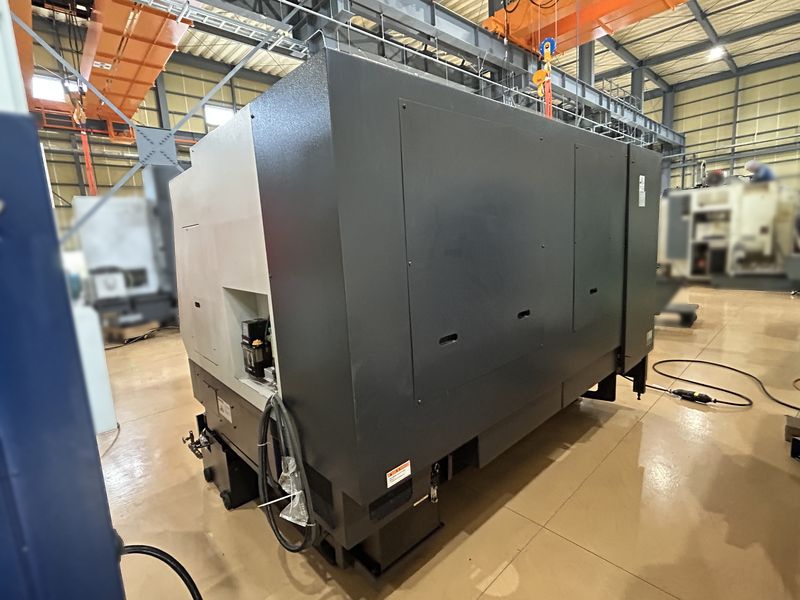

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
