DETAIL
- Item No
0000001037
- Type
- Attachment for Horizontal Boring Machine
- Maker
- TOSHIBA
- Model
- 回転面板CS
- MFG Year
- Movie
- Specification
- 1 2
- Comment

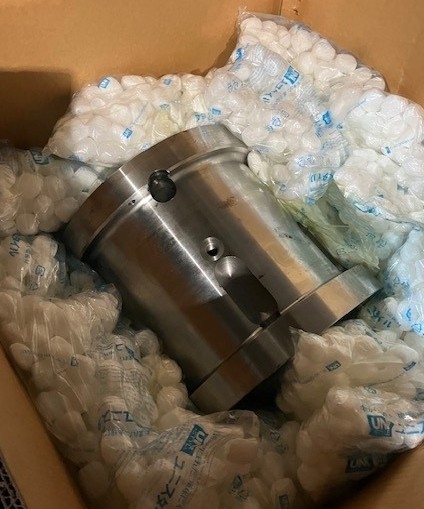

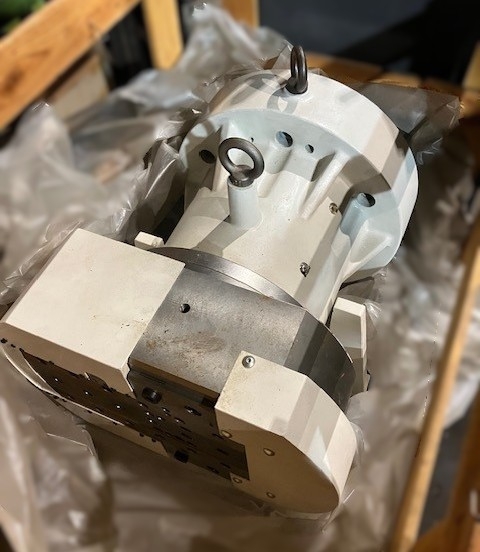

- Attachment for Horizontal Boring Machine Rotating Facing Head CS
Purchased 10 years ago, used only once for test run, almost like new
※ Main Unit Specifications
Faceplate diameter: Φ430 mm
Slide stroke: 80 mm
Slide movement: Spindle (W‑axis) feed × 1 (1:1)
Maximum rotation speed: 150 min⁻¹
Lubrication: Grease lubrication
Tool holder shank diameter: 25 mm (Option)
Applicable models: BP‑130/ BP‑150/ R22 series

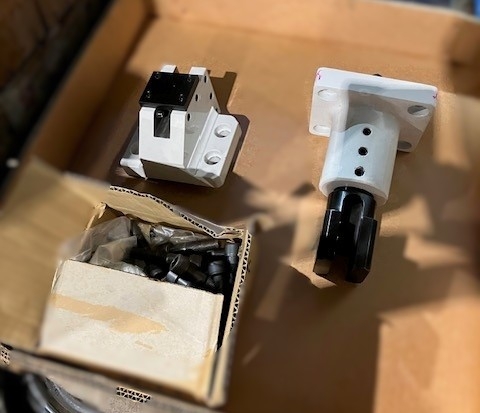

※ Optional Attachments
Tool Holder CS – S‑0E004
（Type: Standard tool holder
Compatible machines: BTD / BP series）
Telescopic Tool Holder CS – S‑0E005
（Type: Telescopic tool holder
Compatible machines: BTD / BP series）
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
