DETAIL
- Item No
0000001045
- Comment
- Cutting Capacity Round Stock: φ30 to φ430 mm
Square Stock: □30 to □430 mm
Saw Blade Speed: 15–120 m/min

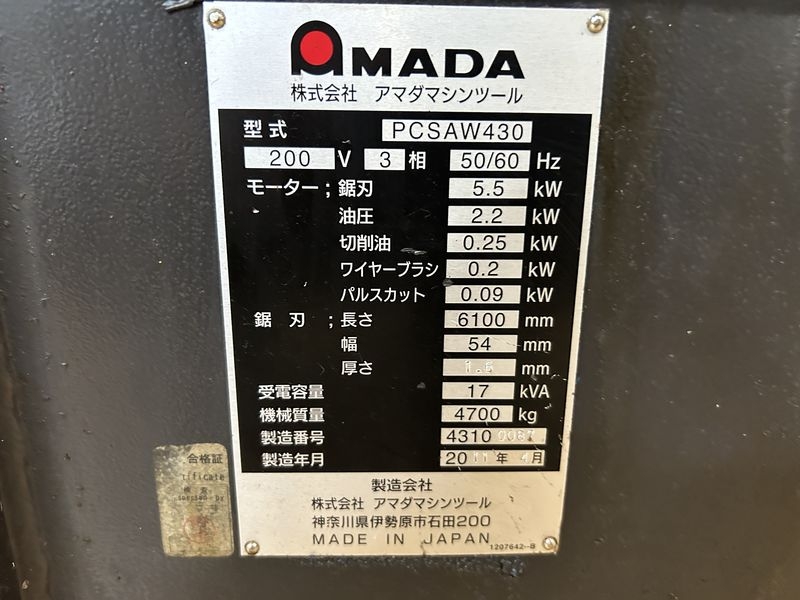

Saw Blade Dimensions: Length 6,100 mm, Width 54 mm, Thickness 1.6 mm
Feed Stroke: 0–500 mm
Installation Dimensions
(Width × Depth × Height): 2,850 W × 2,113 D × 2,034 H
Machine Weight: 4,700 kg
≪Options≫

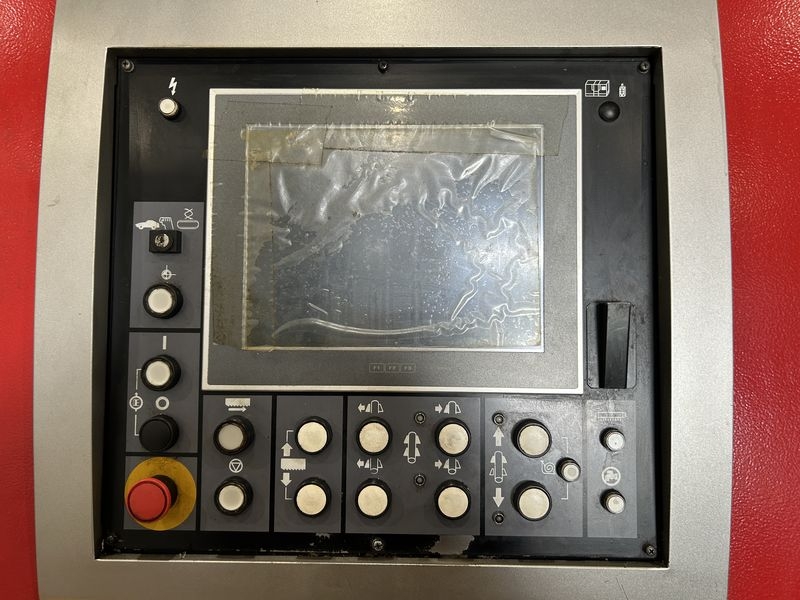

CNC Control
Hybrid Cutting Control
Double-Column Guide

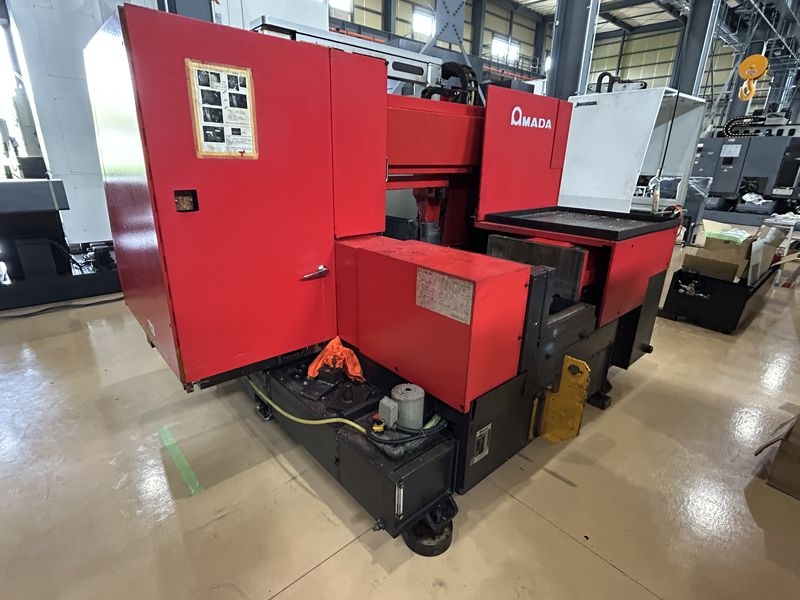

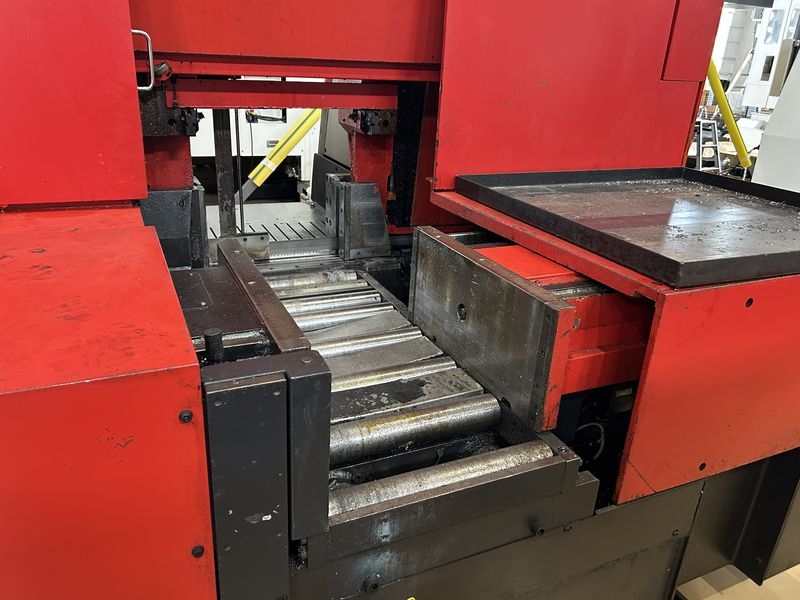

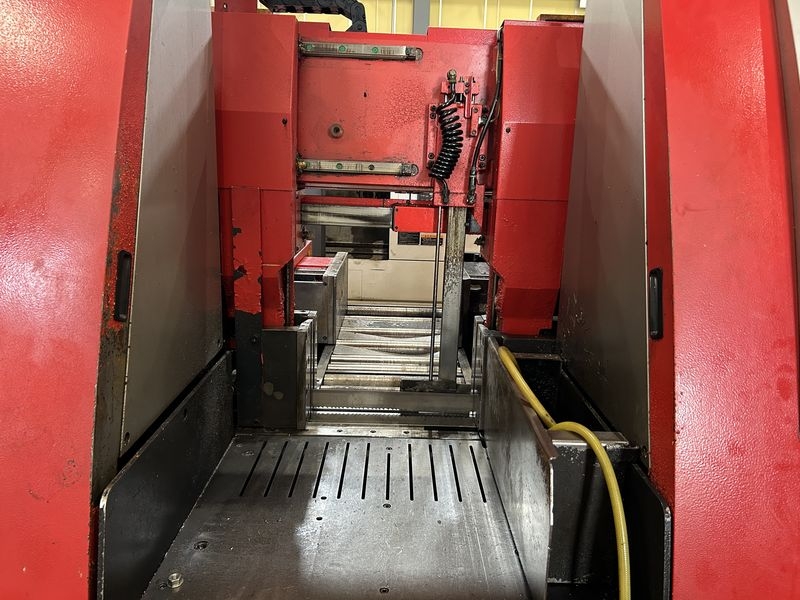

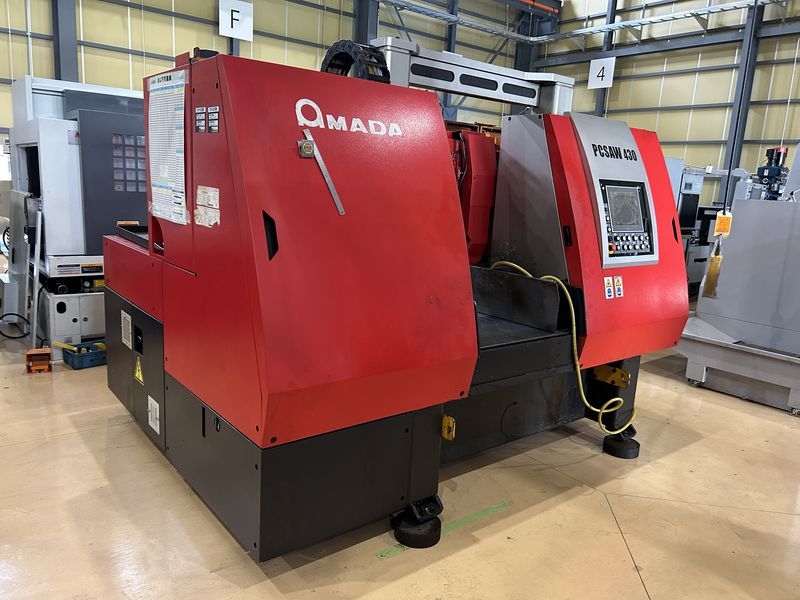

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
