DETAIL
- Item No
0000000784
- Type

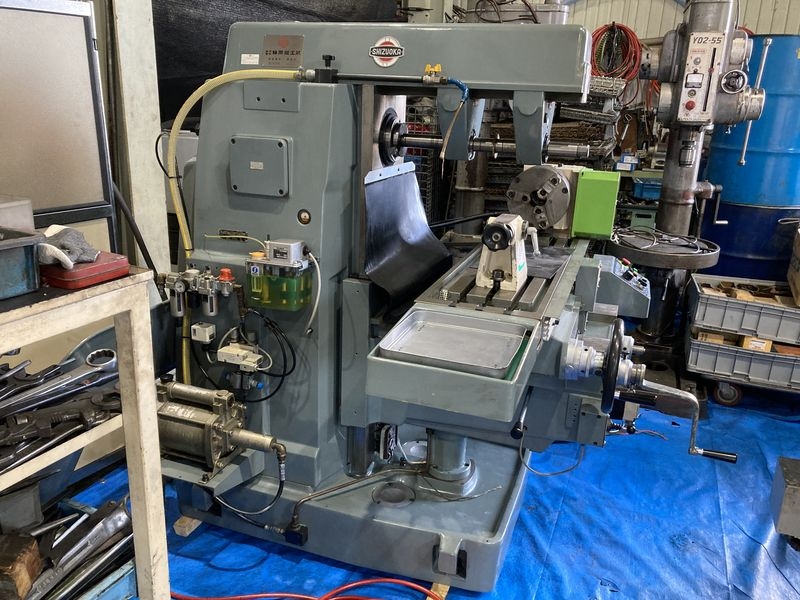

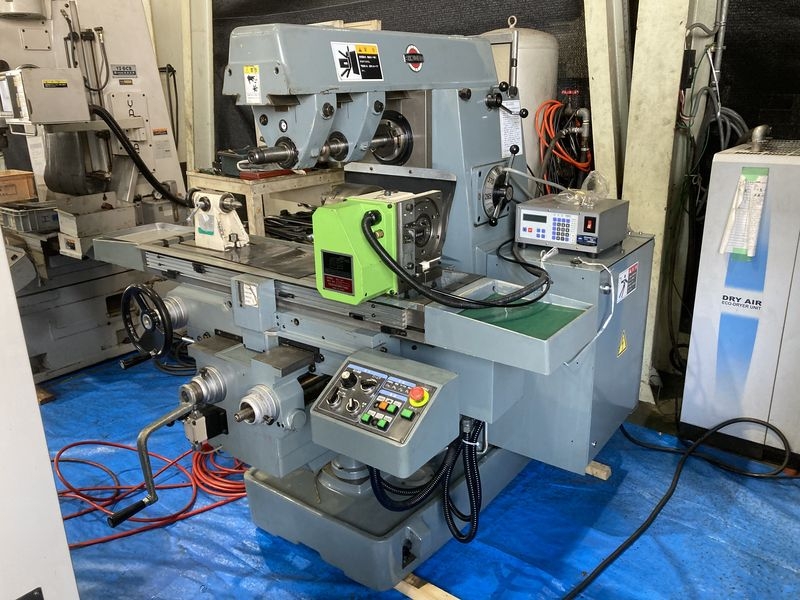

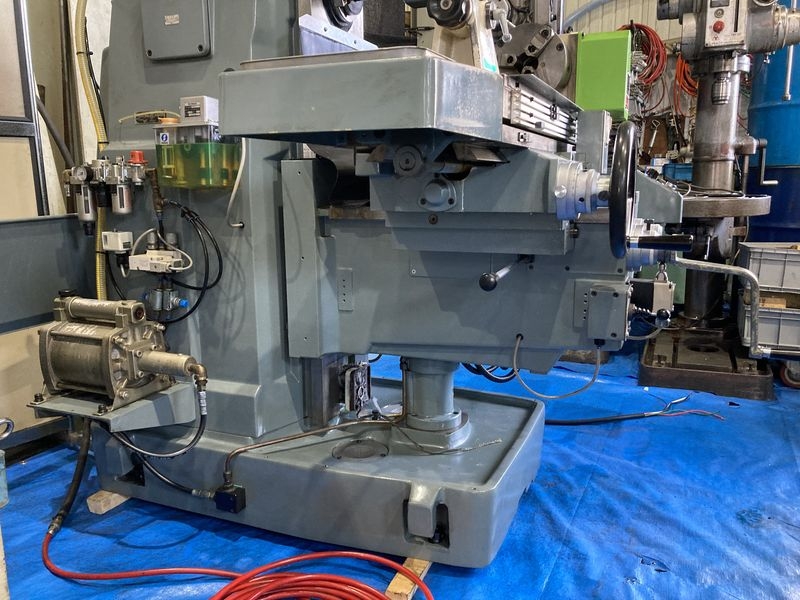

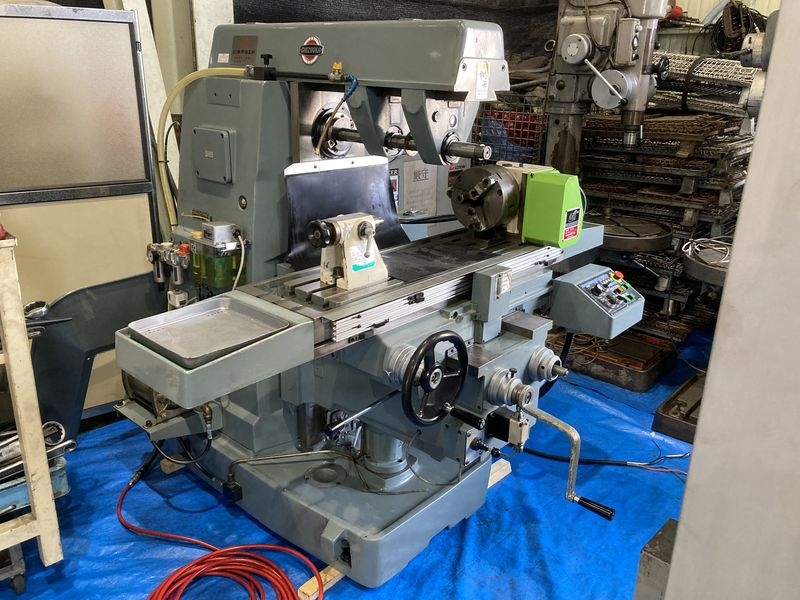

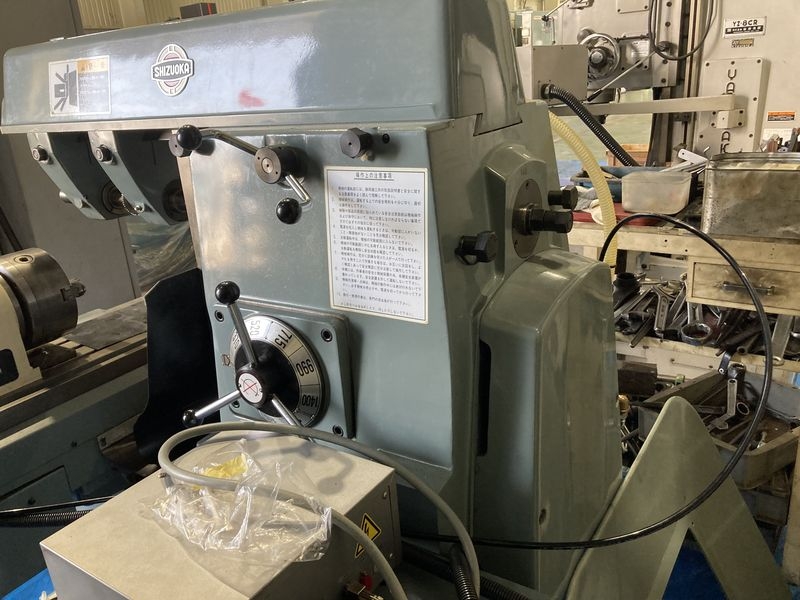

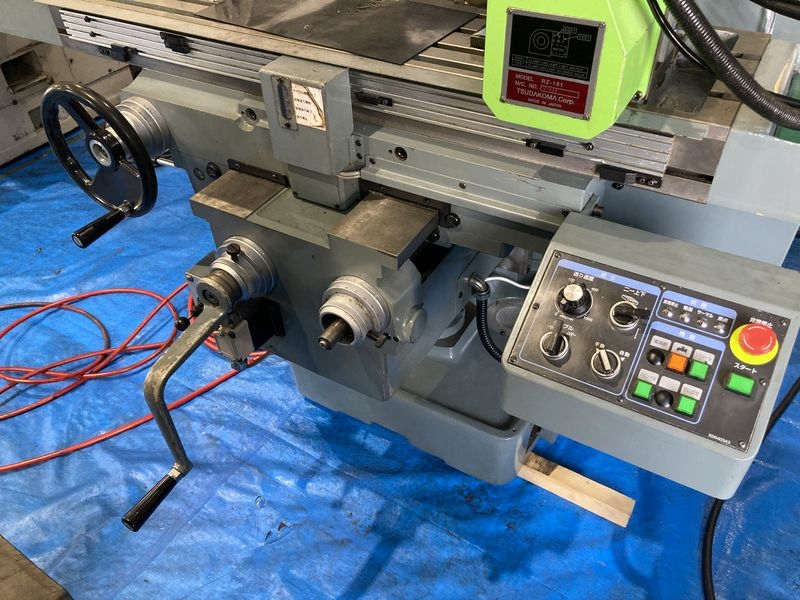

- Manual Milling Machine
- Maker

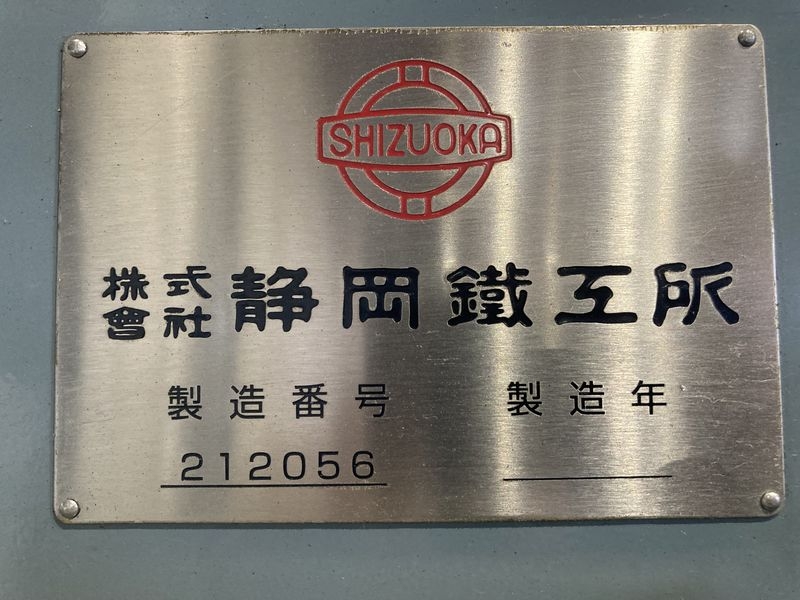

- SHIZUOKA
- Model

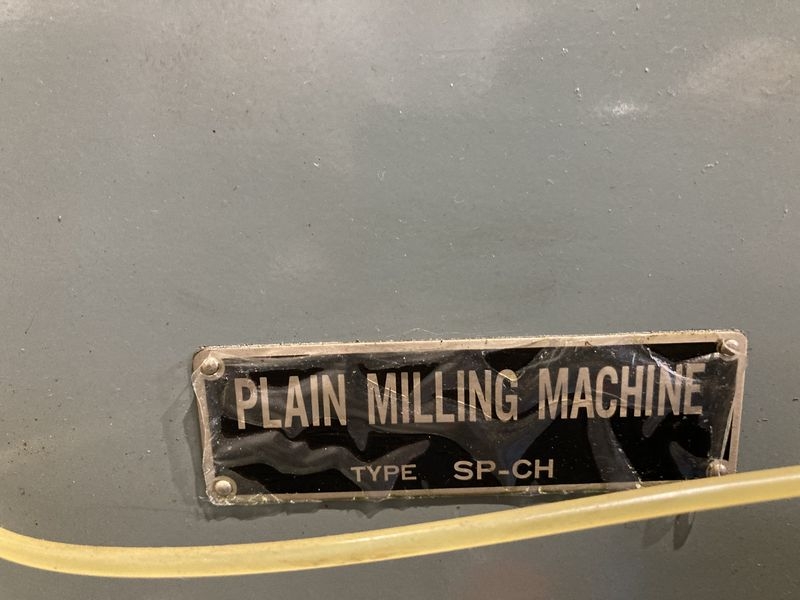

- SP-CH
- MFG Year
- 2012
- Movie
- Specification
- 1
- Comment
- Table size: 1,300×280 mm
Max. loading weight: 300 kg
Travel: X：1,000 Y：300 Z：450 mm
Table to spindle center：20～470 mm
Overarm bottom to spindle center: 125 mm
Spindle speed: 45～700 rpm (9 steps)
Spindle taper: NT50
Coolant tank (Main body)：25L
Required floor space: 2,910×1,800 mm
Machine height: 1,580 mm
Machine weight: 2,100 kg

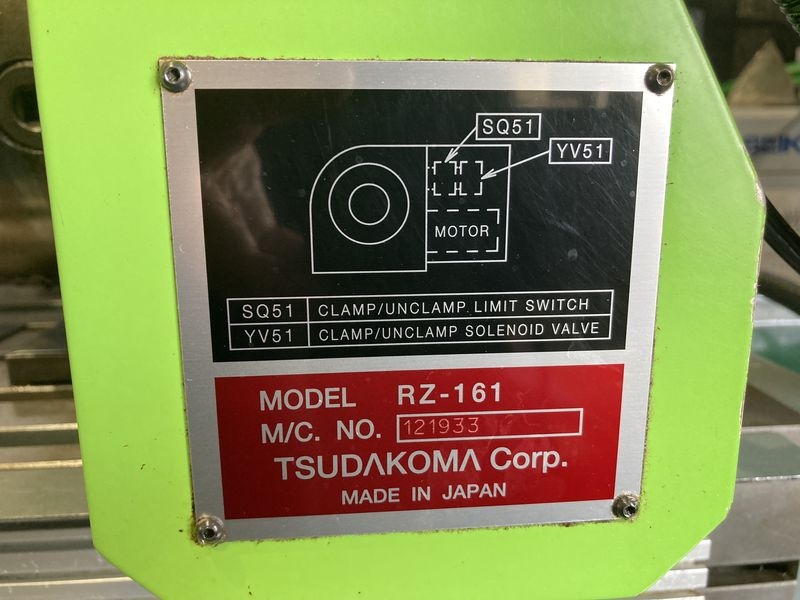

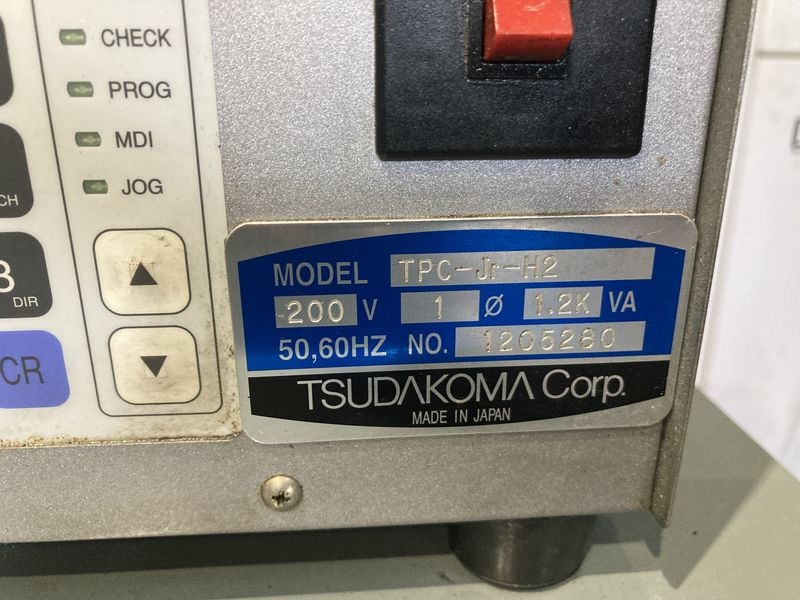

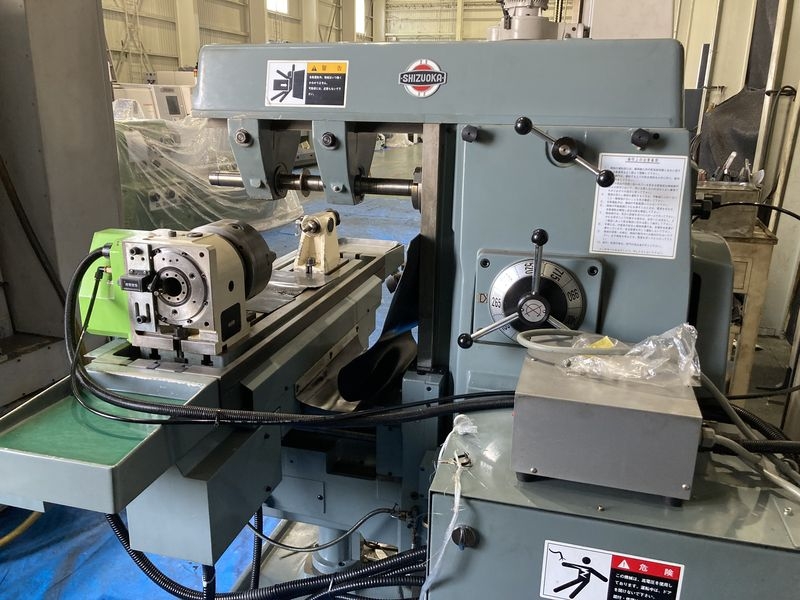

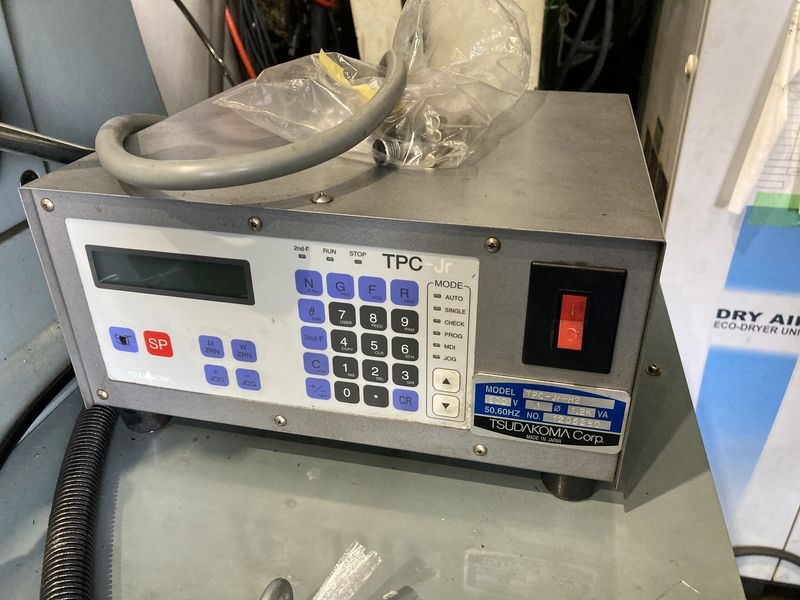

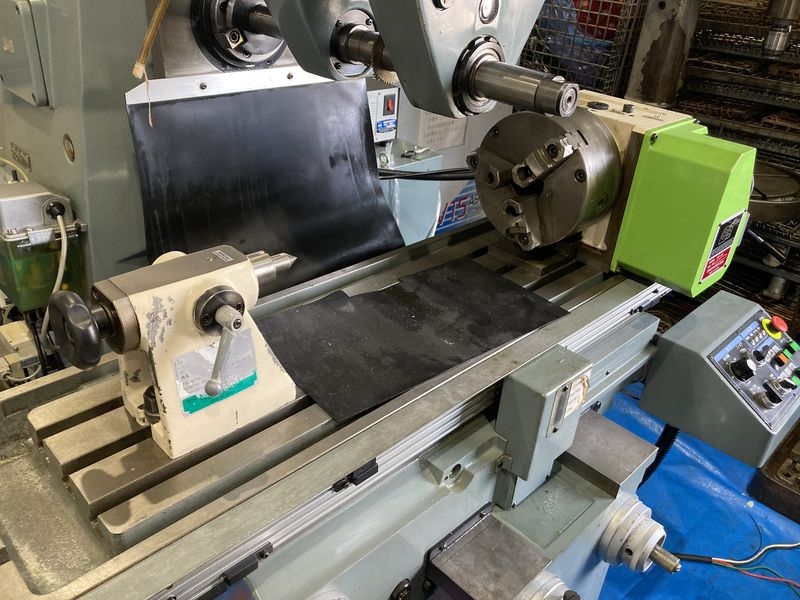

Tsudakoma brand rotary table with controller and tail stock

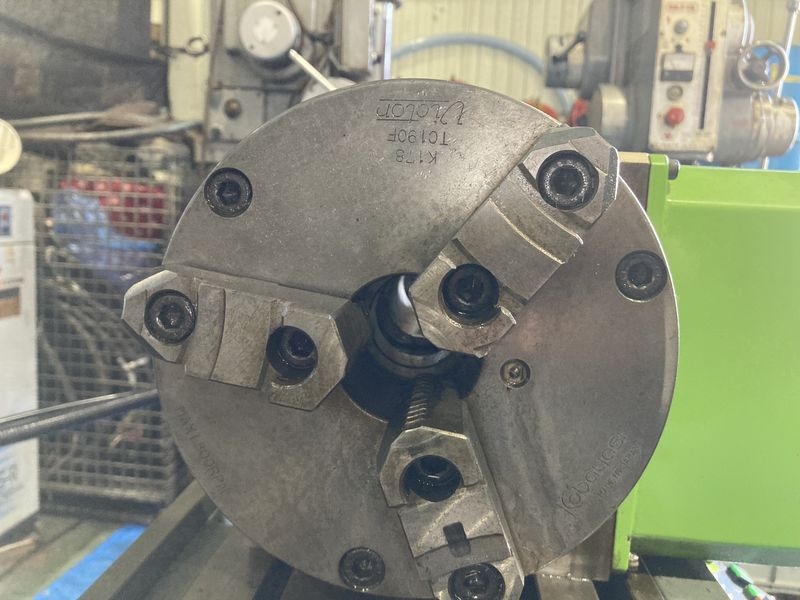

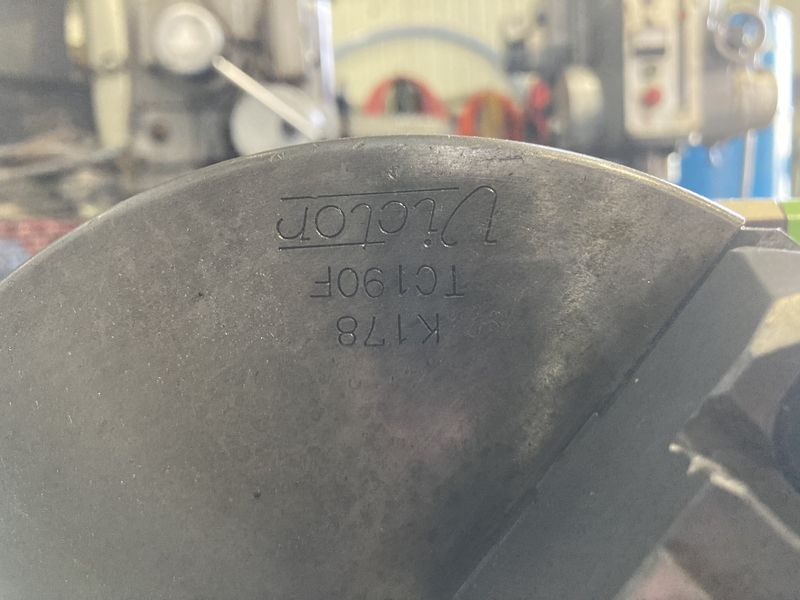

7-inch scroll chuck

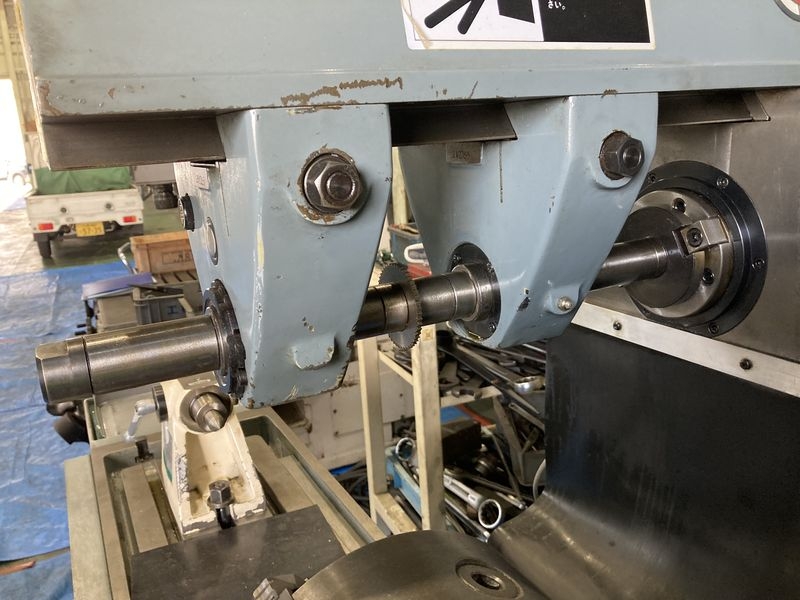

Cutter arbor
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
