DETAIL
- Item No
0000000956
- Type

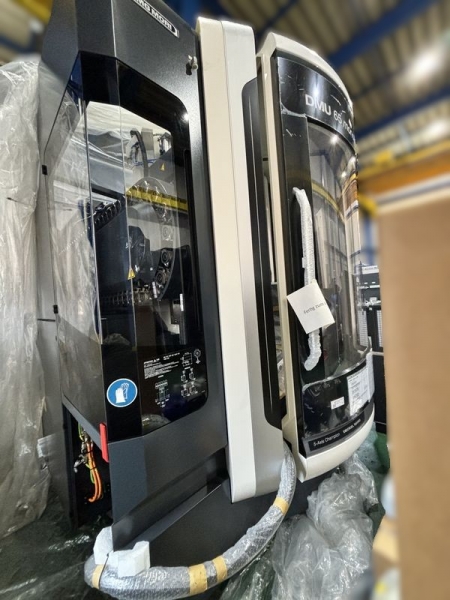

- 5-Axis Machining Center
- Maker
- DMG MORI
- Model

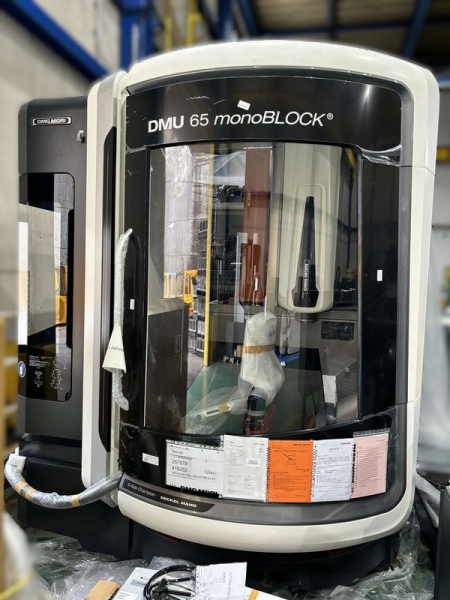

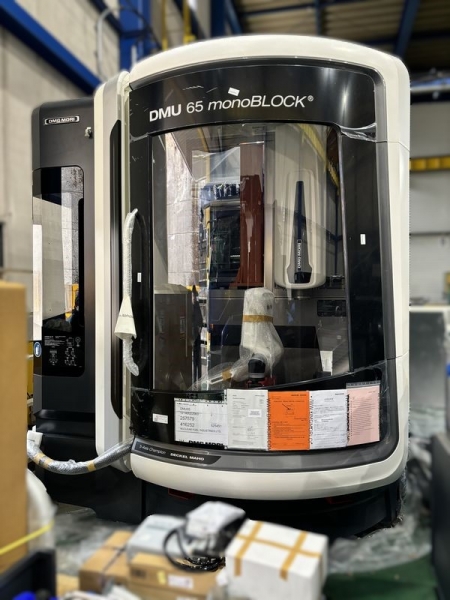

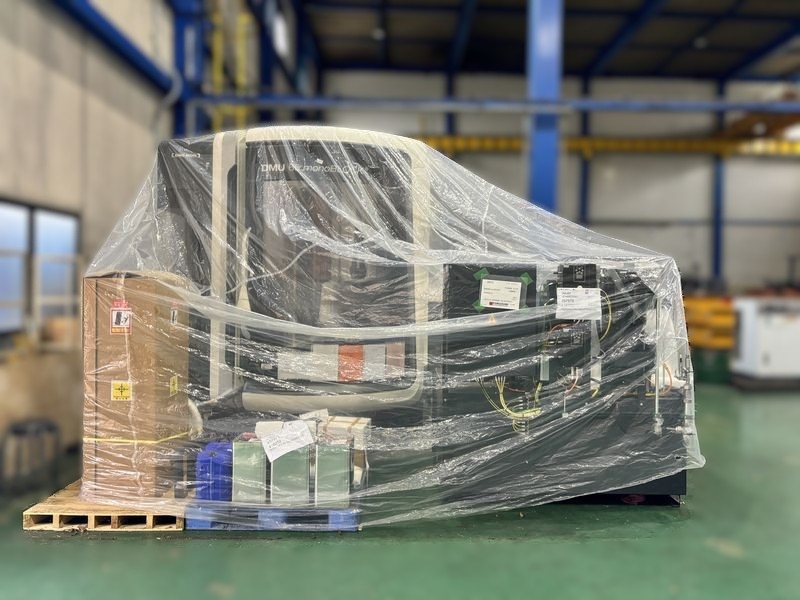

- DMU65 monoBlock
- MFG Year
- 2023【新品】
- Movie
- Specification
- 1 2
- Comment
- Controller : 840Dsl Operate(CELOS) ) Siemens
Table siz : φ650 in 800 x 650 mm
Travel X : 735 Y : 650 Z : 560 mm
A : ±120° C : 360°
Spindle taper : HSK-A63
Spindle speed : 15,000 rpm

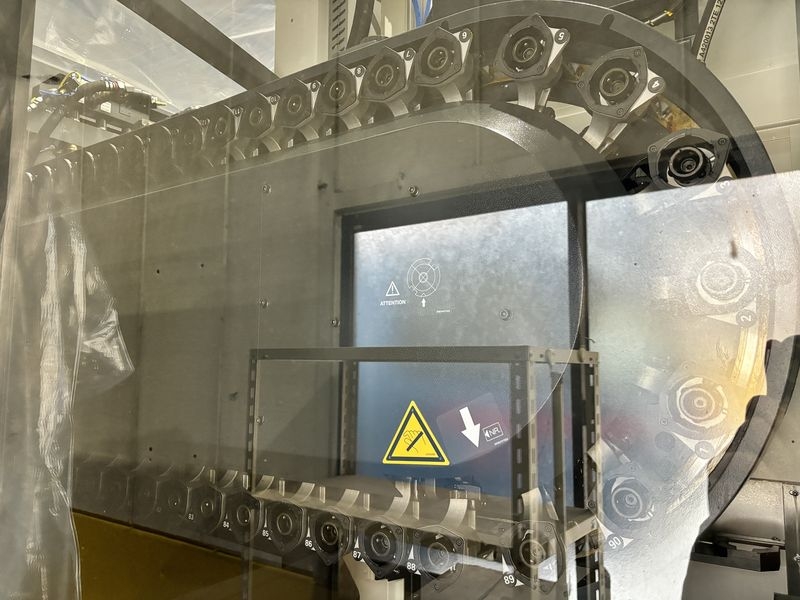

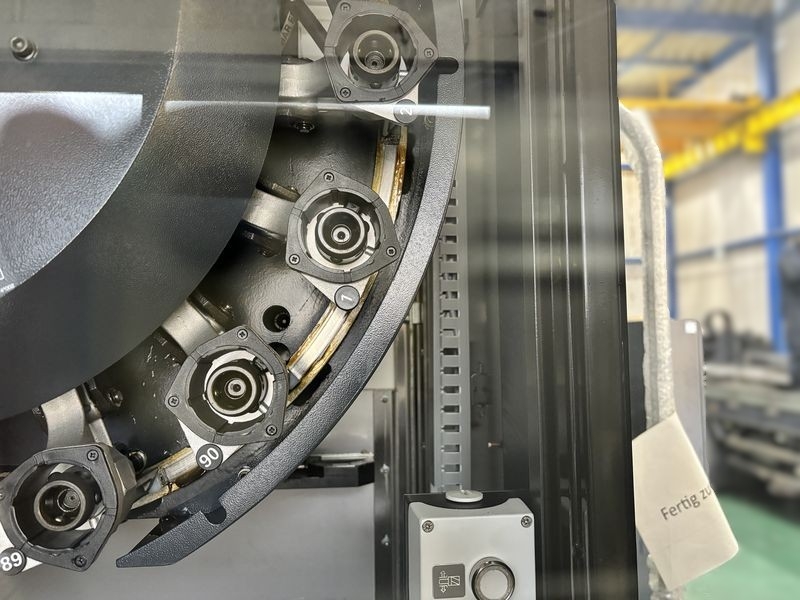

ATC : 90 stations
Machine height : 2,897 mm
Machine weight : 12,000 kg
In-machine measuring device (spindle) (SK40) Renishaw PP60
3D Quick Set
ATC (Application Tuning Cycle)
NC controlled tilt rotary table C-axis direct drive (A-axis tandem)

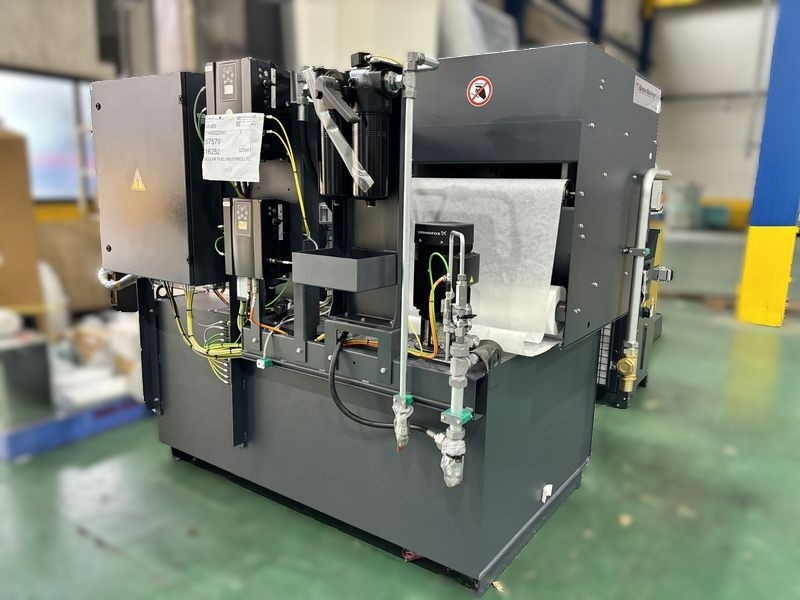

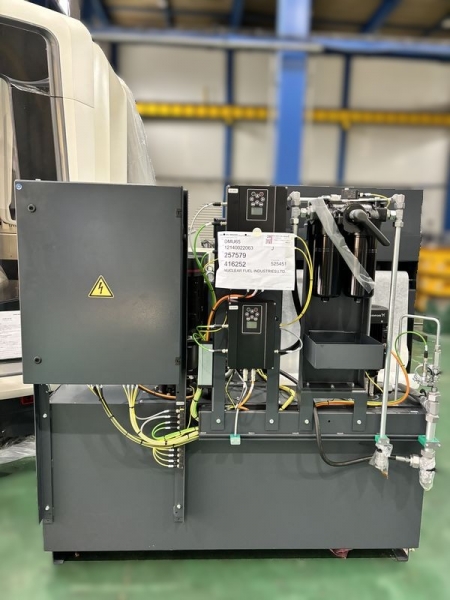

Production package 8MPa/980L, frequency control
＊Spindle center through 8MPa

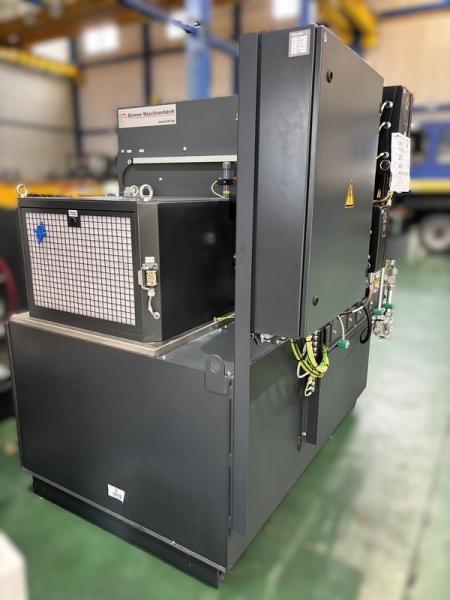

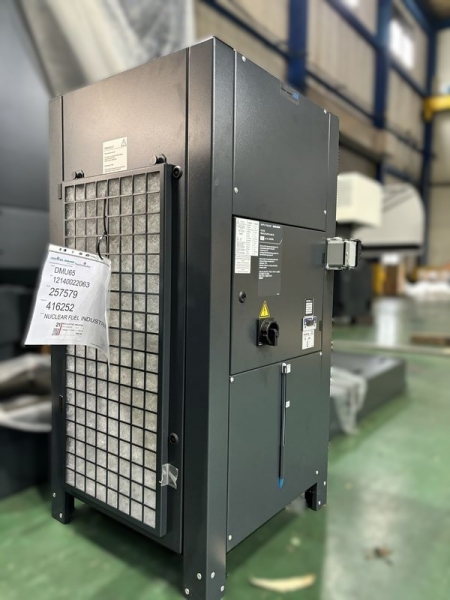

Coolant temperature control device (for 980L/1300L tank)
Air blast (spindle center through air)
Mist collector interface
In-machine tool measuring device Bloom
Operation mode 4 (conditional release of interlock)
High precision specification
Signal light 4 colors / Frequency 60 Hz specification
Tropical package (for machine ambient temperature up to 50°C)
Manual pulse handle / Coolant gun
Safety package (for power outages)
-----------------------------------------------
Comment from the person in charge!!
This is a brand new item that we are now able to offer due to a cancellation! As of 2025, the price for a new item is over 90 million yen, and we have heard that the delivery time is about one year, so this may be a good time to use your budget at the end of the fiscal year!! Please contact us!!
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
