DETAIL
- Item No
0000000974
- Comment

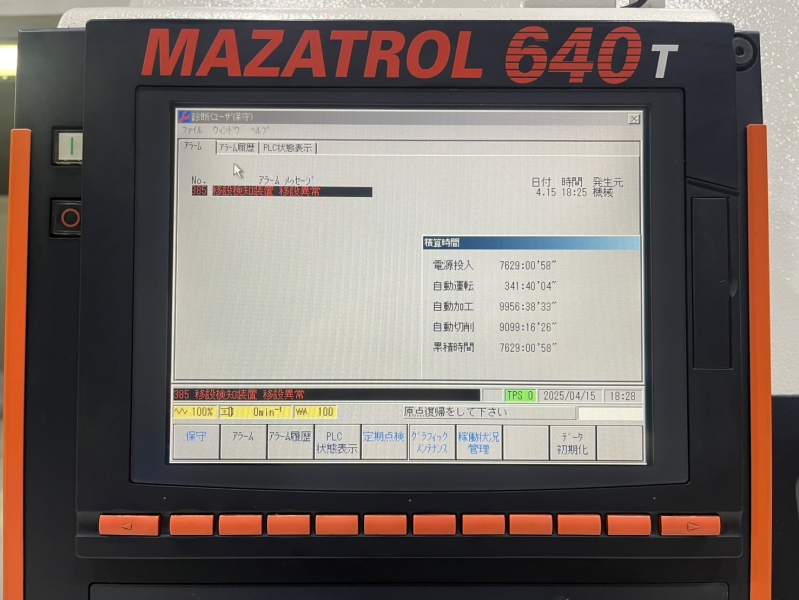

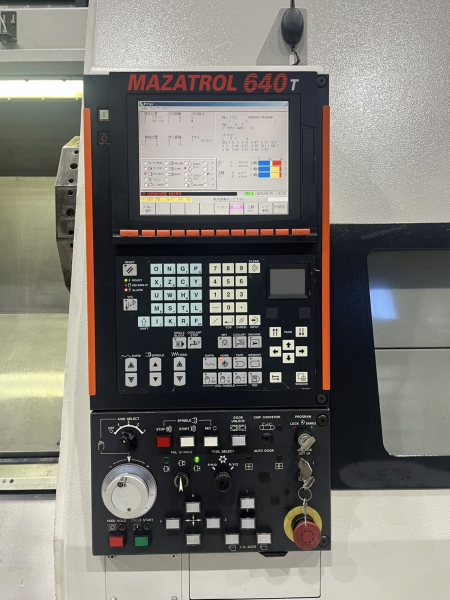

- Controller : MAZATROL 640T
Max. swing : φ716 mm
Swing on carriage : φ518 mm
Standard machining dia. : φ375 mm
Max. machining dia. : φ620 mm
Max. machining length : 1,024 mm
Travel (X, Z) : 365 x 1,100 mm
Spindle speed : 3 ～ 1,500 rpm
Spindle end shape : JIS A2-15
Spindle through hole dia. : φ180 mm

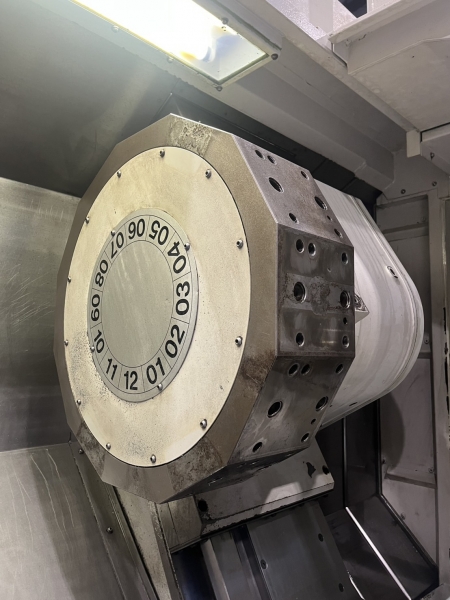

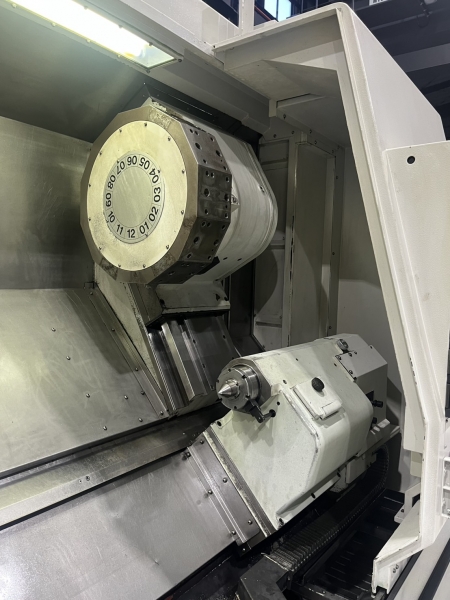

Turret : 12 stations

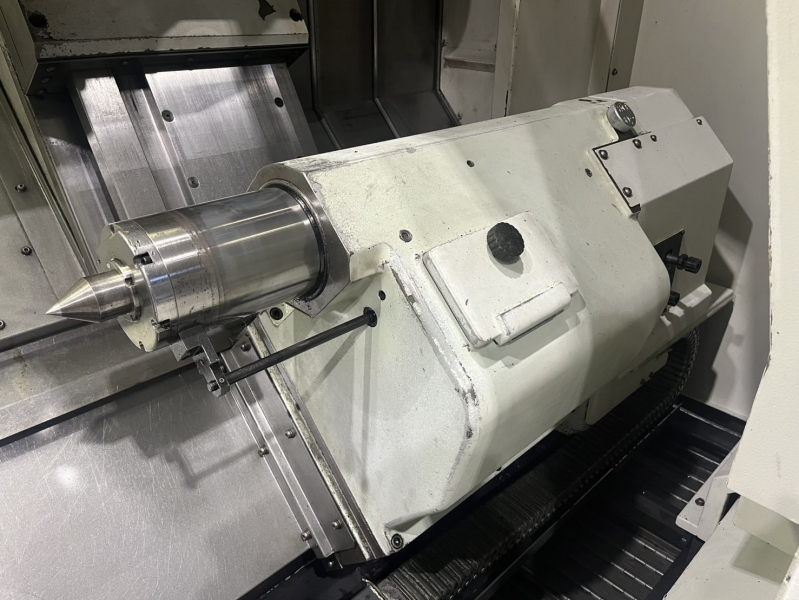

Tail stock travel : 956 mm
Tail spindle dia. : φ130 mm
Tail spindle hole type : MT5 (BUILT)
Tail spindle travel : 130 mm
Chuck size : 24 inches
Required floor space : 4,170 x 2,045 mm
Machine height : 2,517 mm (X-axis origin)
Machine weight : 9,500 kg
Chuck jaw automatic opening and closing
Chuck jaw opening and closing confirmation
Chuck jaw air blow
Powerful coolant (2.2KW)
Automatic power cut-off
Earth leakage breaker
Overload detection device
3-stage signal tower
Chip conveyor (for side-exit 1,000)
EIA/ISO option package
Spindle orientation

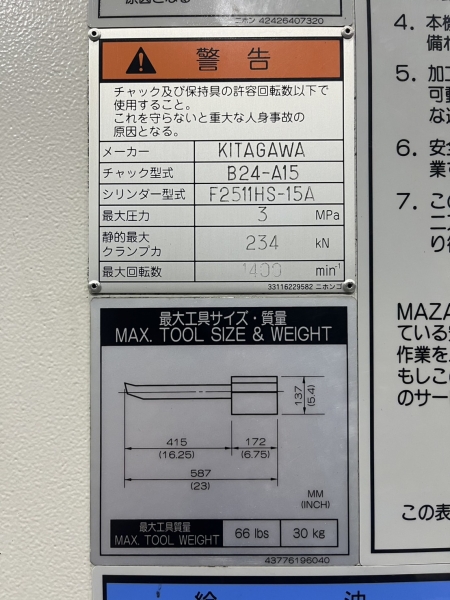

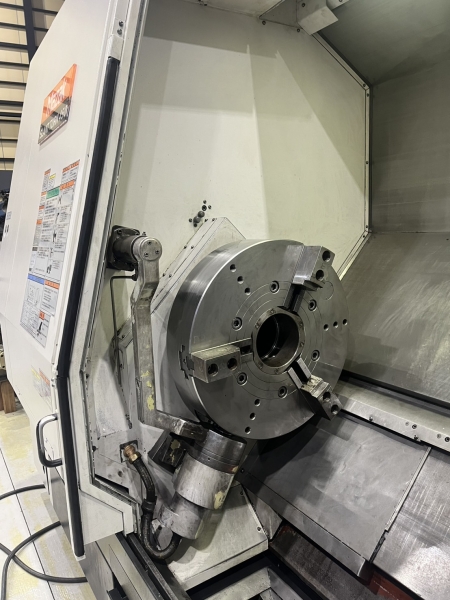

24-inch hollow hydraulic chuck
Kitagawa B-24/F2511
24-inch chuck compatible tool eye
Front door automatic opening and closing (left side only)
Two-handed start switch
Robot interface
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
