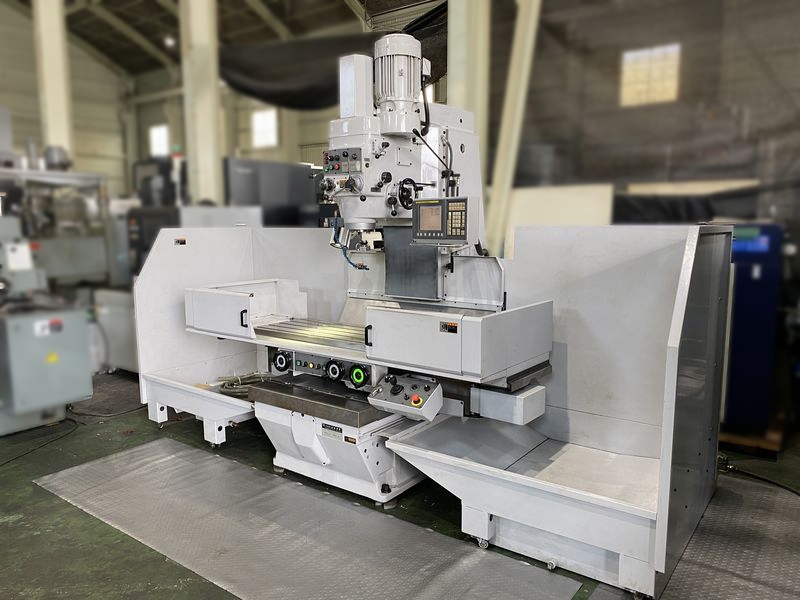

DETAIL
- Item No
0000000978
- Type
- NC vertical milling machine
- Maker

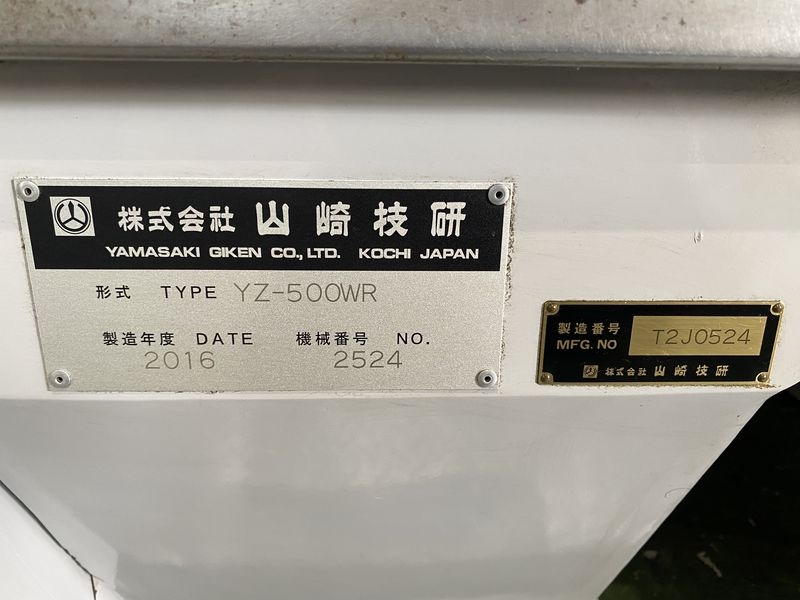

- Yamazaki Giken
- Model
- YZ-500WR
- MFG Year
- 2016
- Movie
- 1
- Specification
- 1 2
- Comment

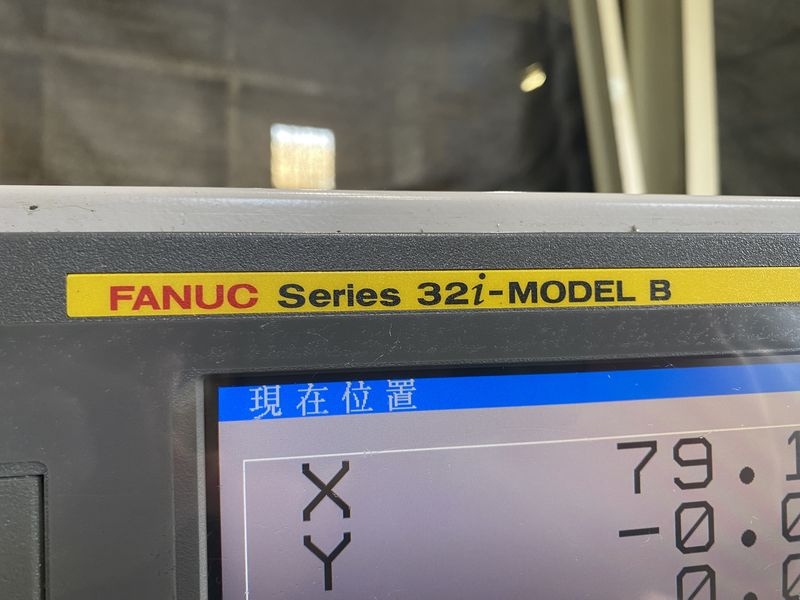

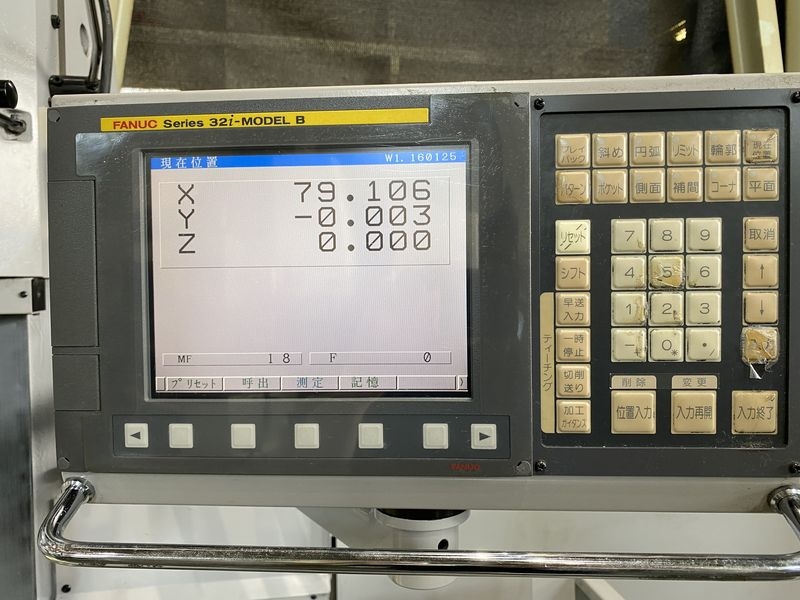

- Controller : FANUC 32i-MODEL B

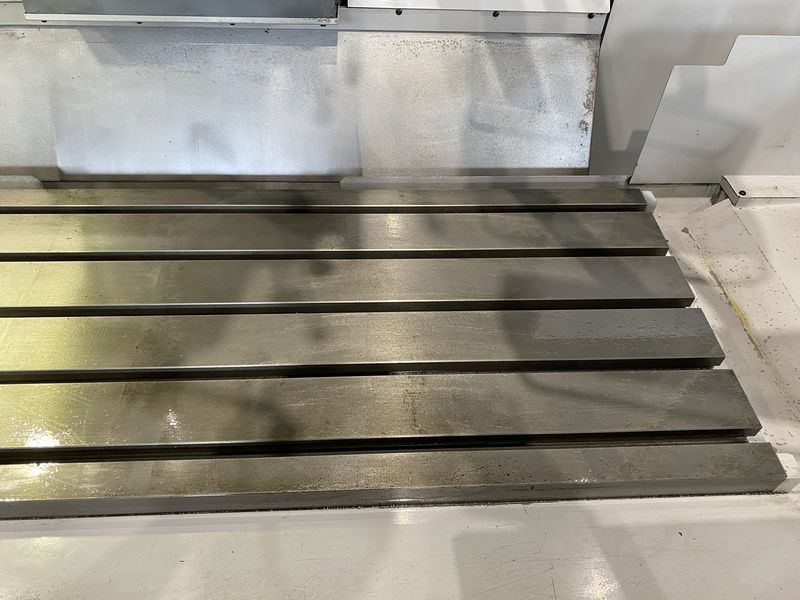

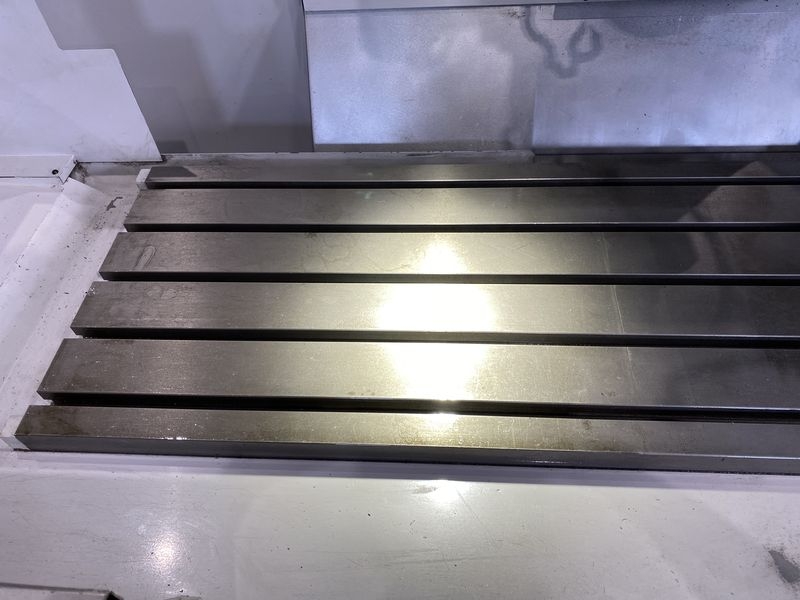

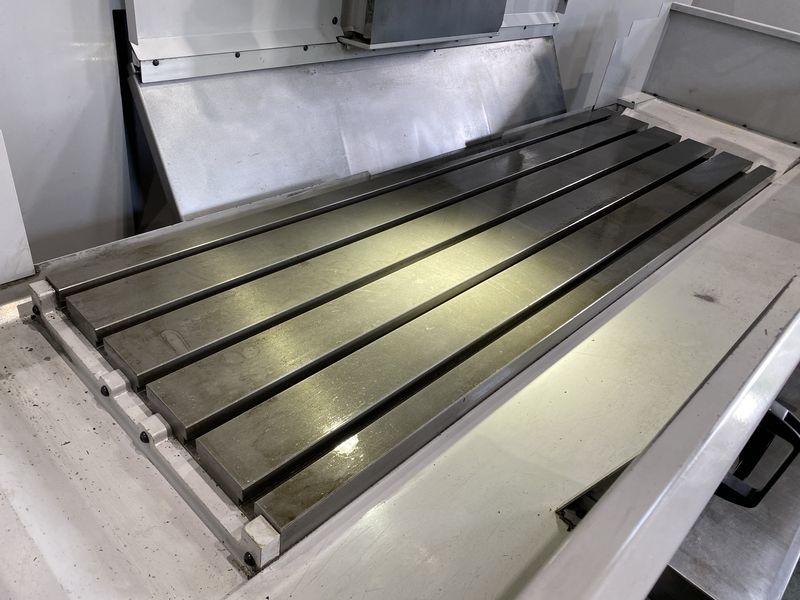

Table size: 1,600×500 mm
Max. work weight: Approximately 600 kg
Travel X : 1,250 Y : 550 Z : 520 mm
Distance from spindle to table top : 140～660 mm

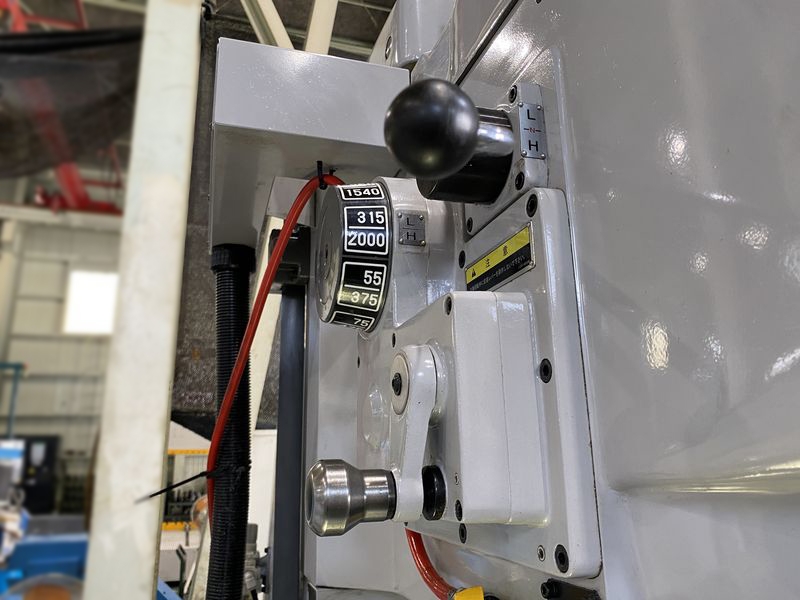

Spindle speed ： 2,000 rpm

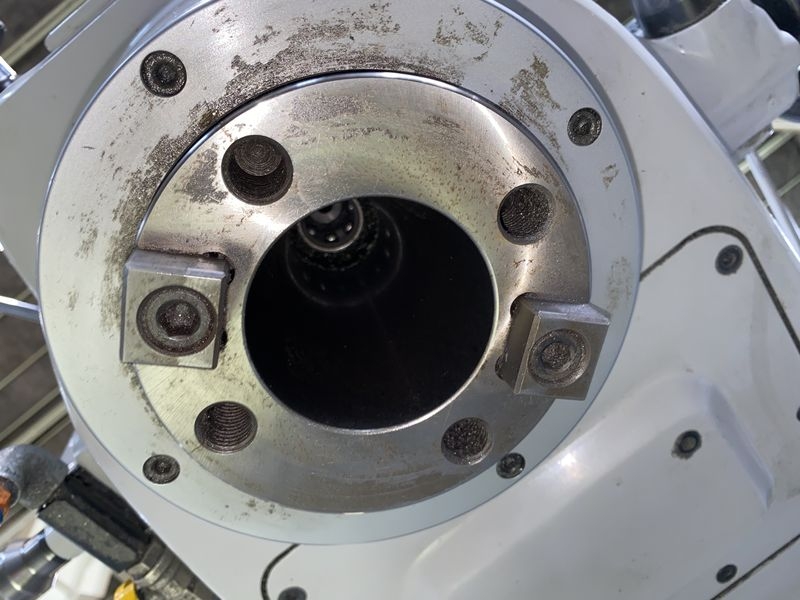

Spindle taper : BT50
Required area: 3,350×2,070 mm
Height : 2,475 mm
Machine weight ： Approximately 4,700 kg

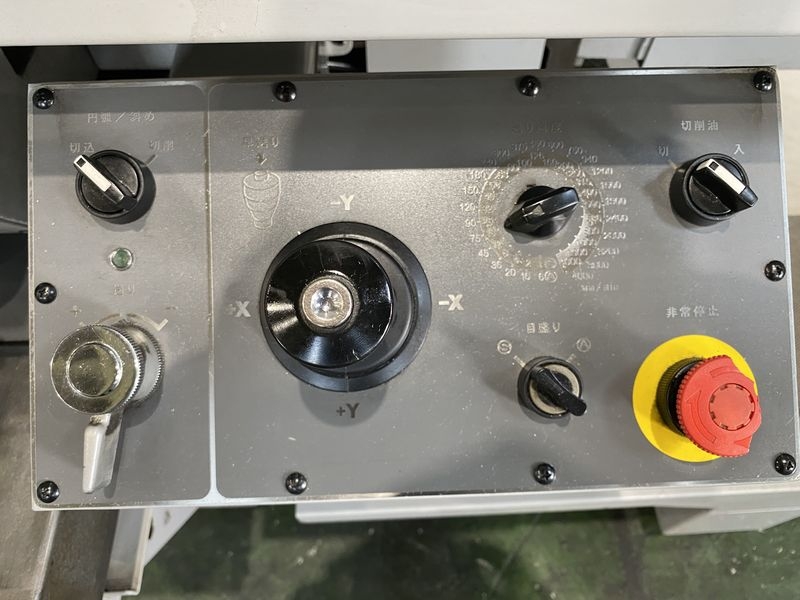

Control device operation panel : General-purpose/ Guidance
Number of controlled axes: 2 axes (X, Y)
X-axis stroke extension (stroke 1250 mm)
Chip coil conveyor (inside the machine)

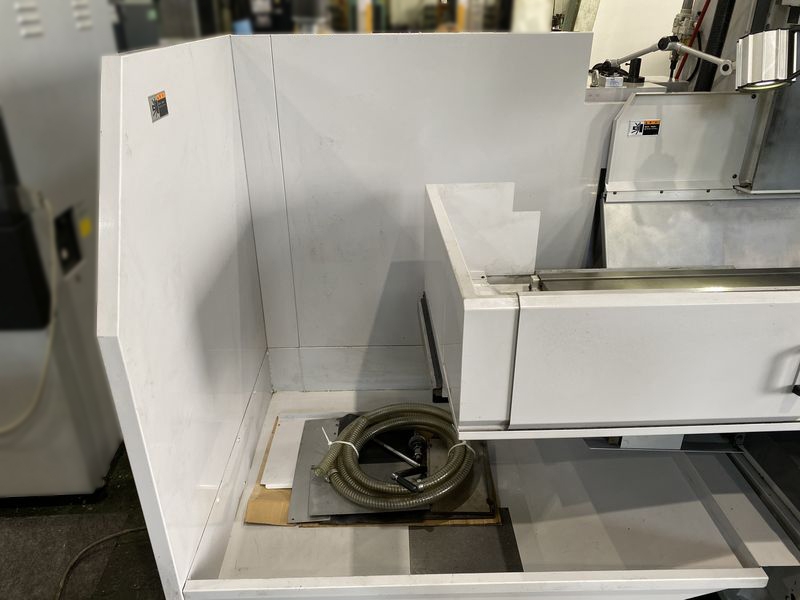

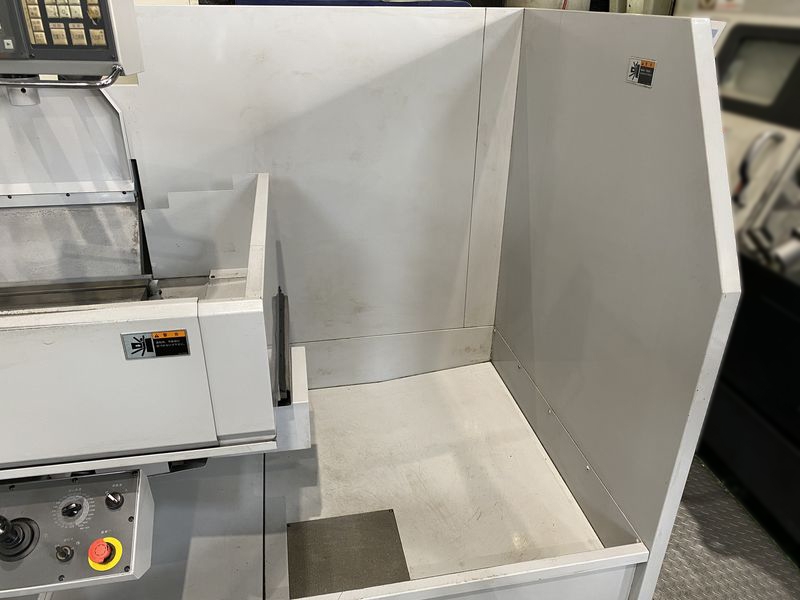

Table splash guard
Partition type
Pull stud type tool attachment/detachment device (BT50)
High-speed spindle specification 3000 rpm Inverter control Override
No cutting fluid device

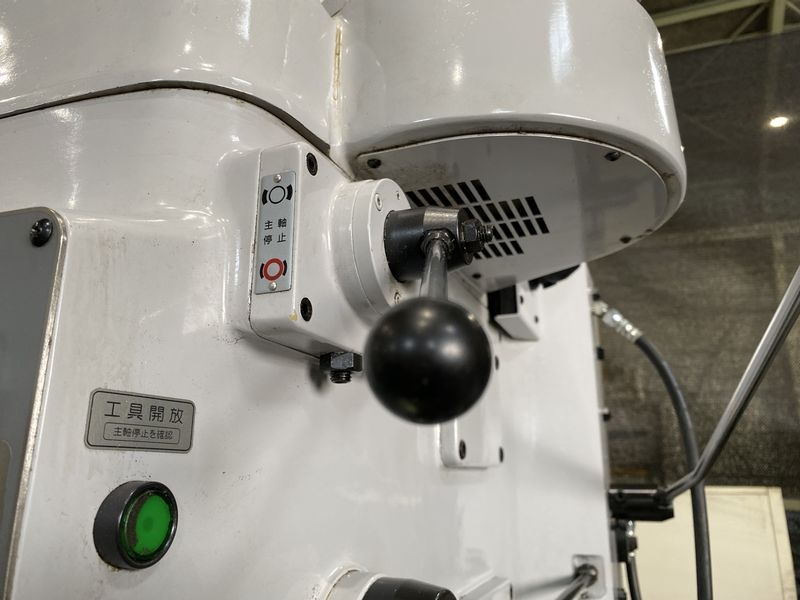

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
