MACHINE TOOL SALES

DETAIL

Item No

0000000989

Type

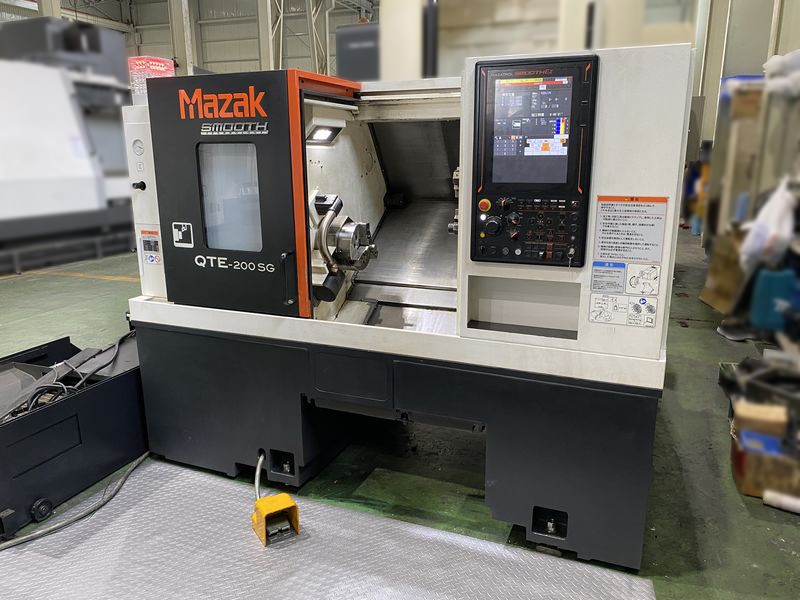

CNC Lathe
Maker
MAZAK
Model

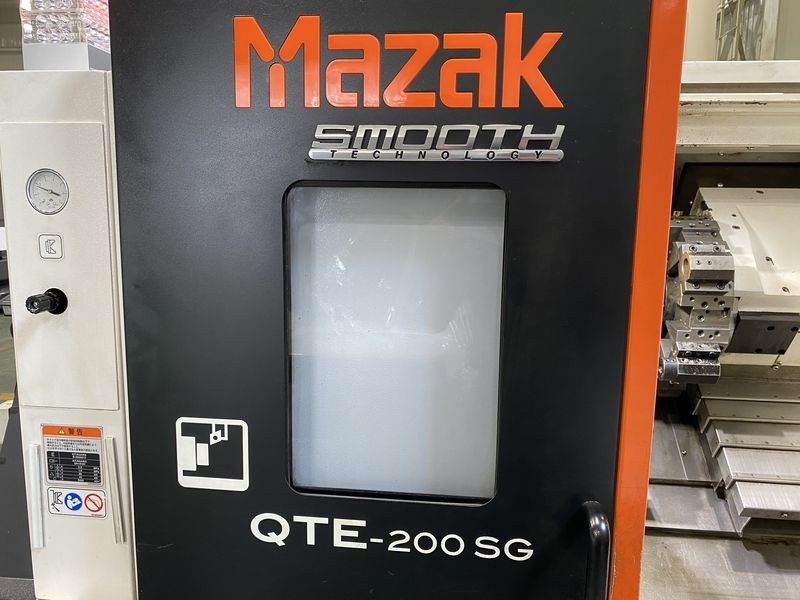

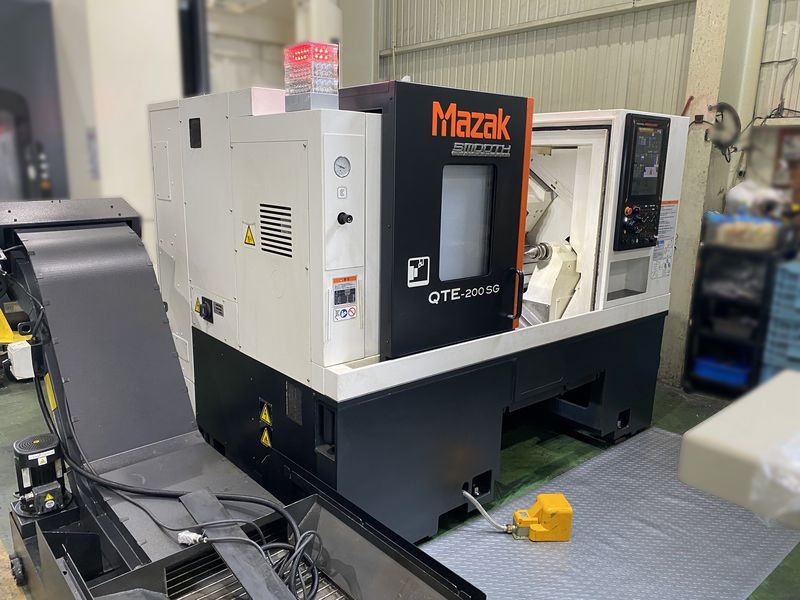

QTE-200 SG/500U
MFG Year
2021
Movie
Specification
1 2
Comment

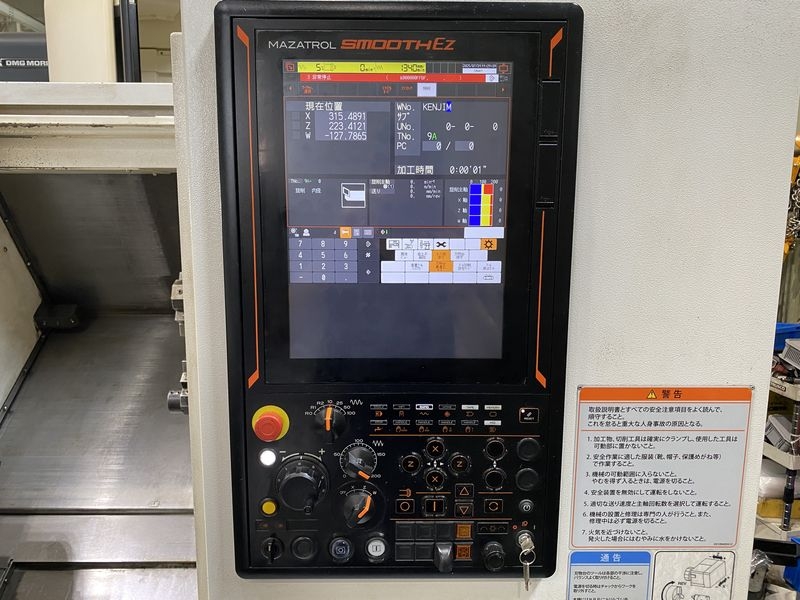

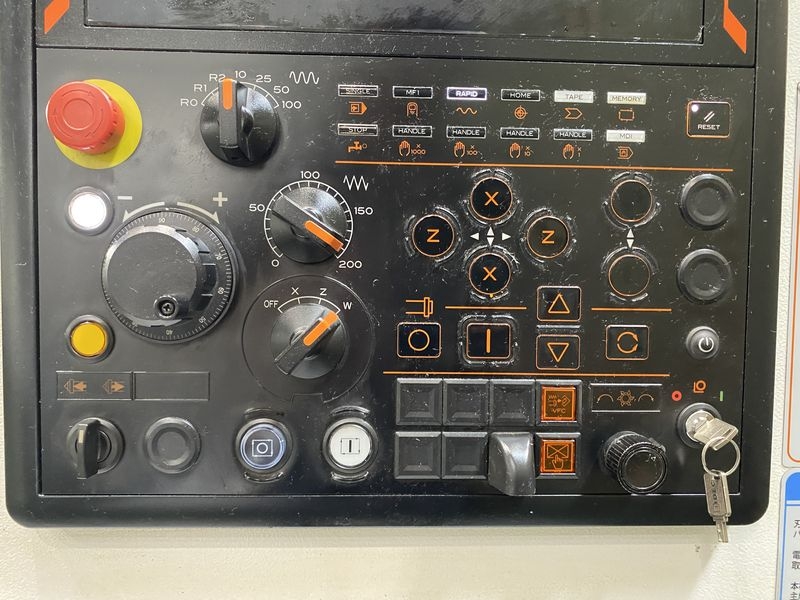

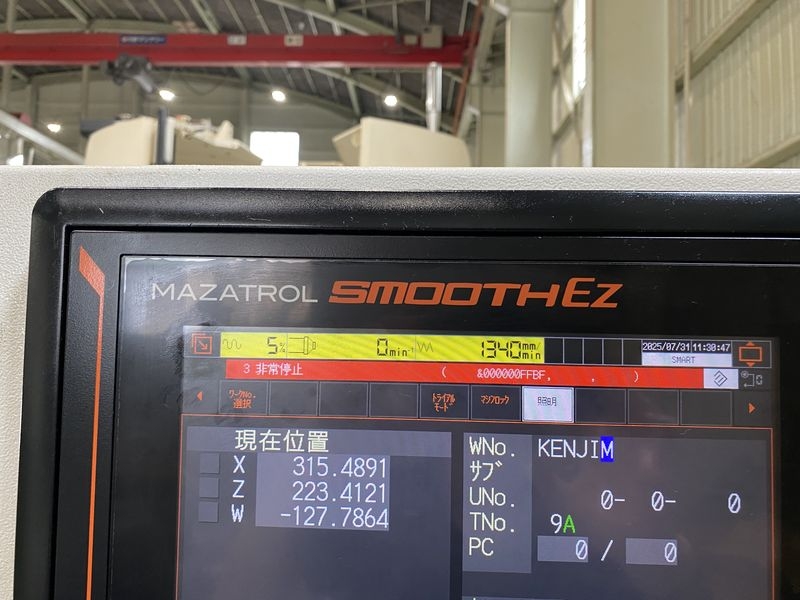

Controller : MAZATROL SmoothEz
Maximum swing: φ580 mm
Max. work diameter: φ350 mm
Standard work diameter: φ248 mm
Max. work length: 520 mm
Travel X: 195 mm Z: 560 mm
Maximum spindle speed: 5,000 rpm
Through-spindle hole diameter: φ61 mm

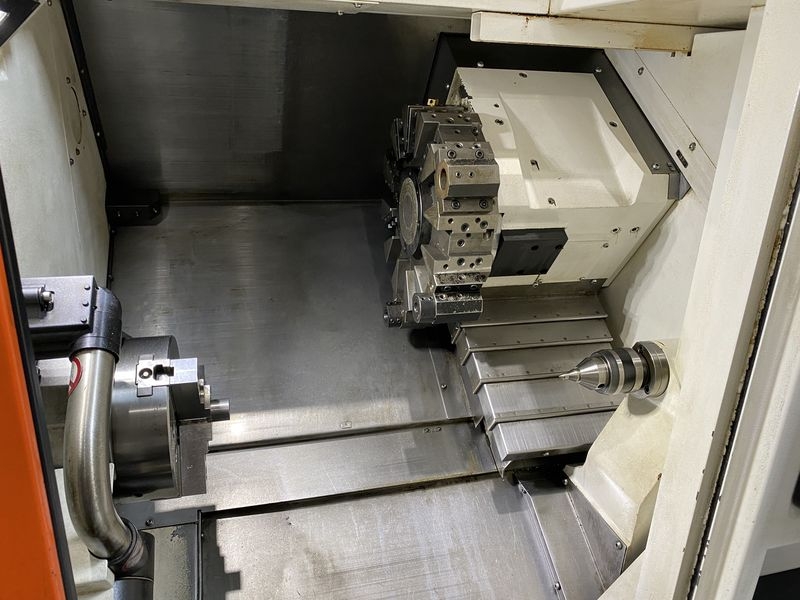

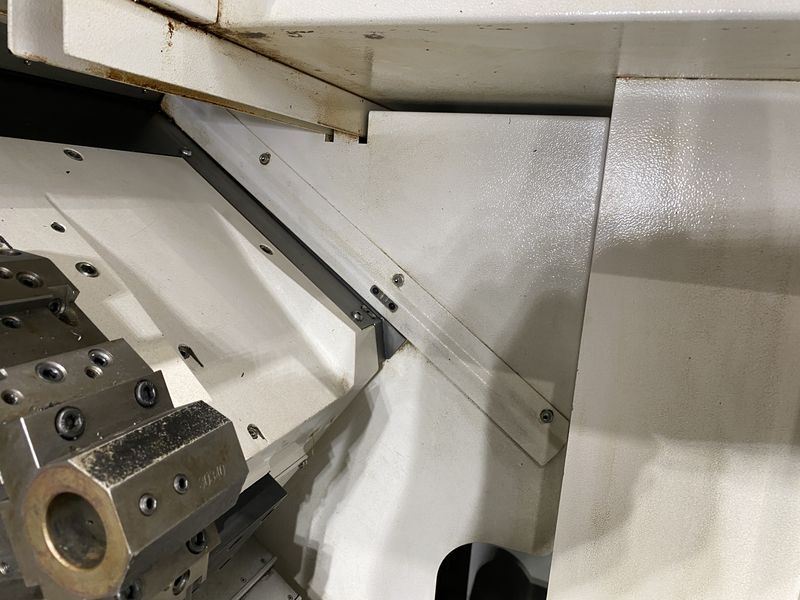

Tool rest type: 12-sided drum
Tailstock travel distance: 530 mm
Tail rest taper hole: Dead center MT No.5

Required floor space: 2,200 x 2,390 mm
(including rear-discharge conveyor)
Machine height: 1,700 mm
Machine weight: 4,800 kg


12D tool rest specification (bolt-on)

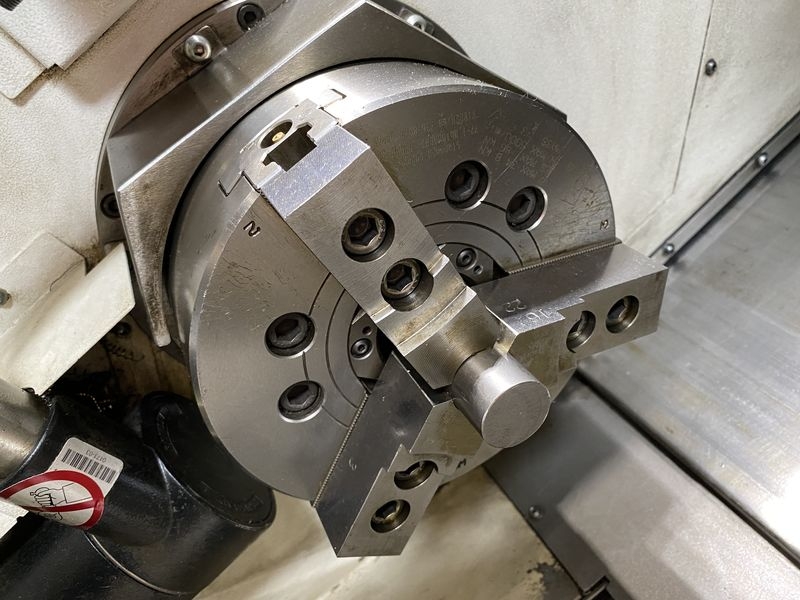

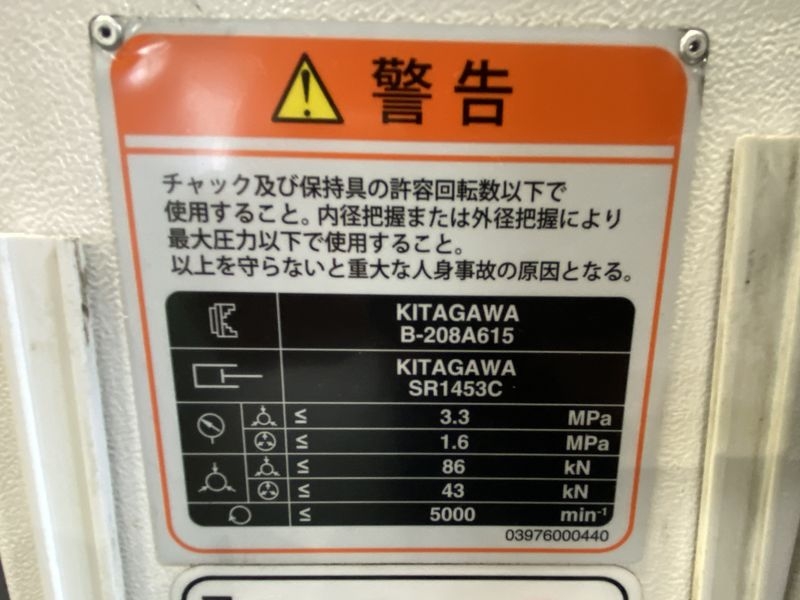

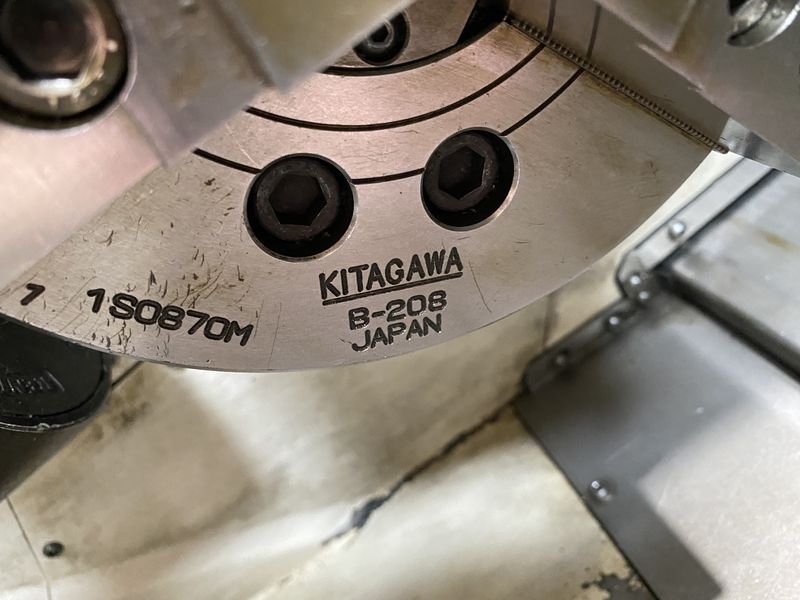

8-inch hollow chuck B-208A615 (Kitagawa)

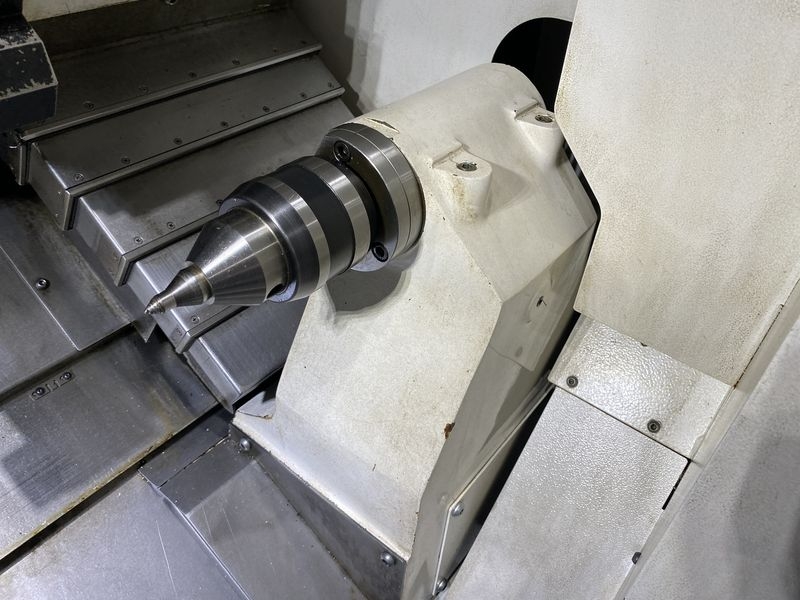

NC tail stock

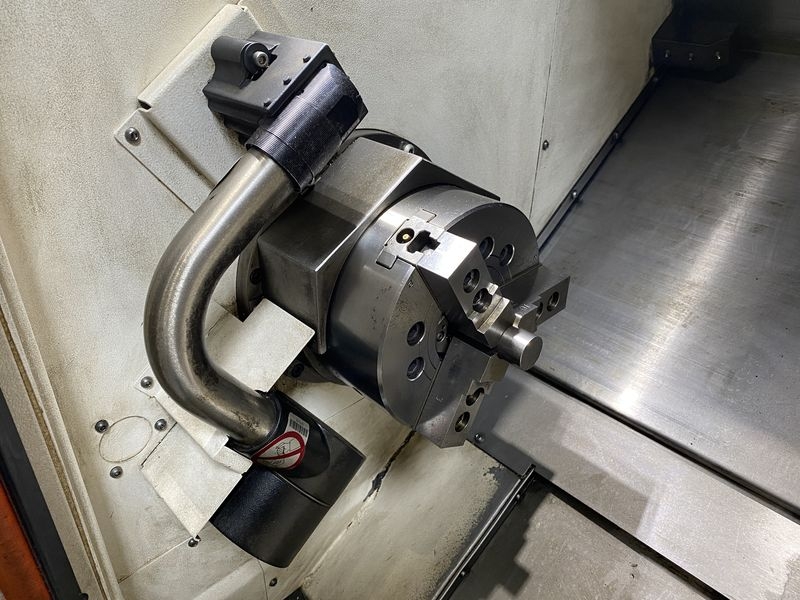

Tool Eye (automatic)

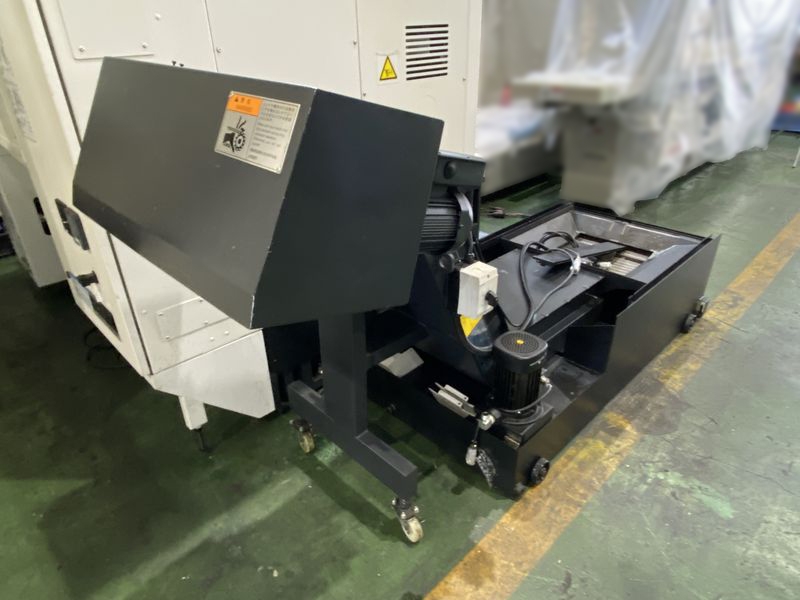

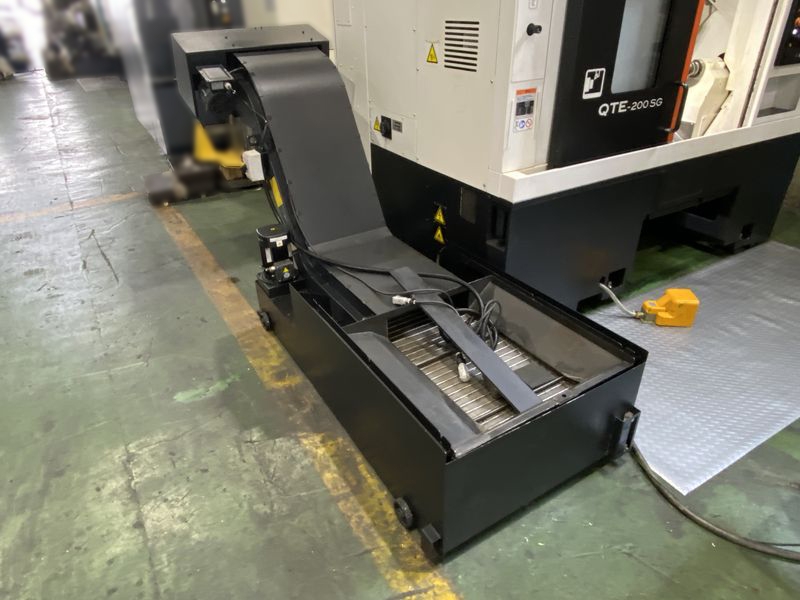

Chip conveyor (rear-loading hinge type) 500U
Thread cutting function
Relocation detection device

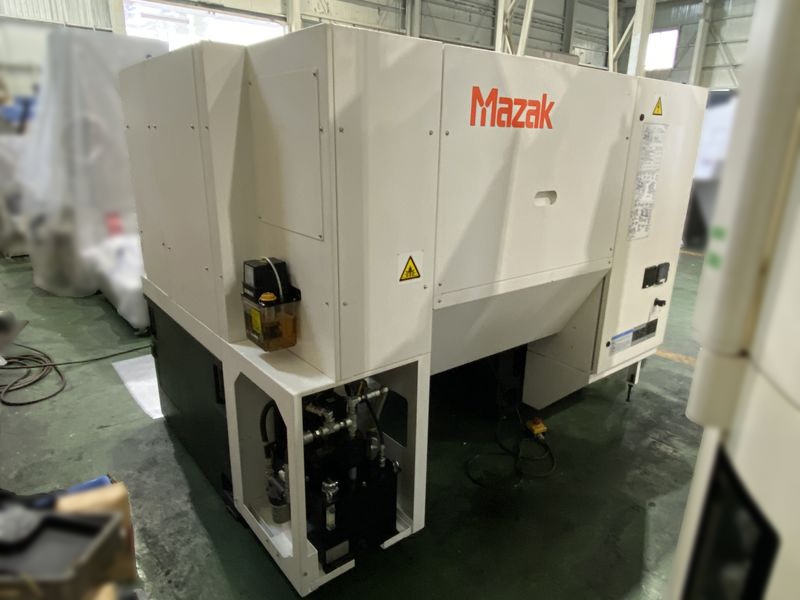

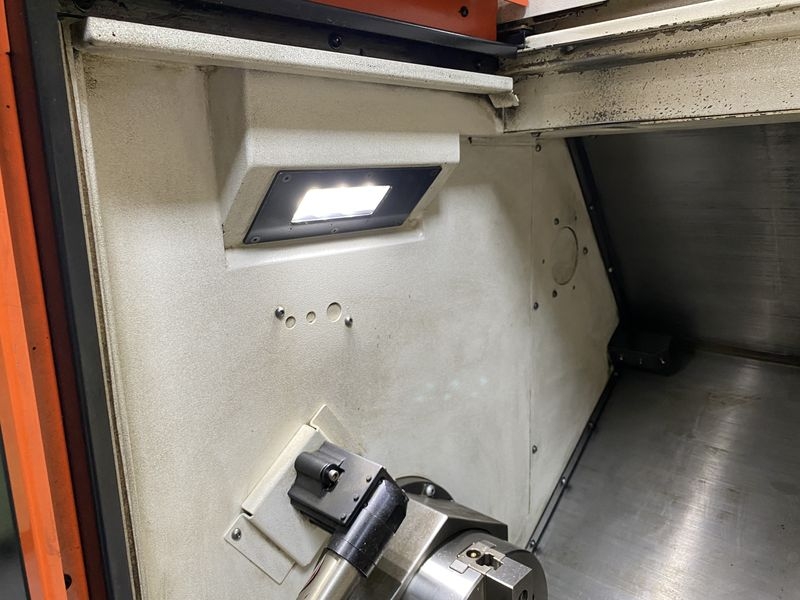

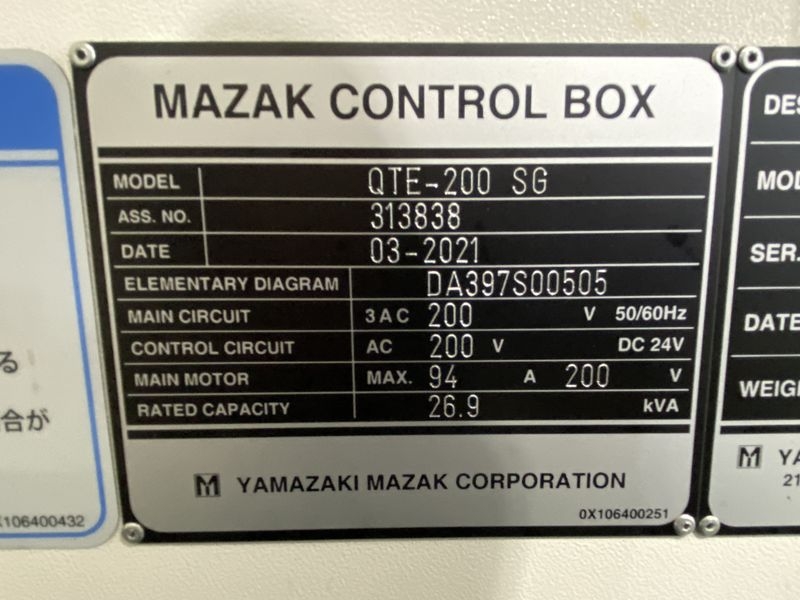

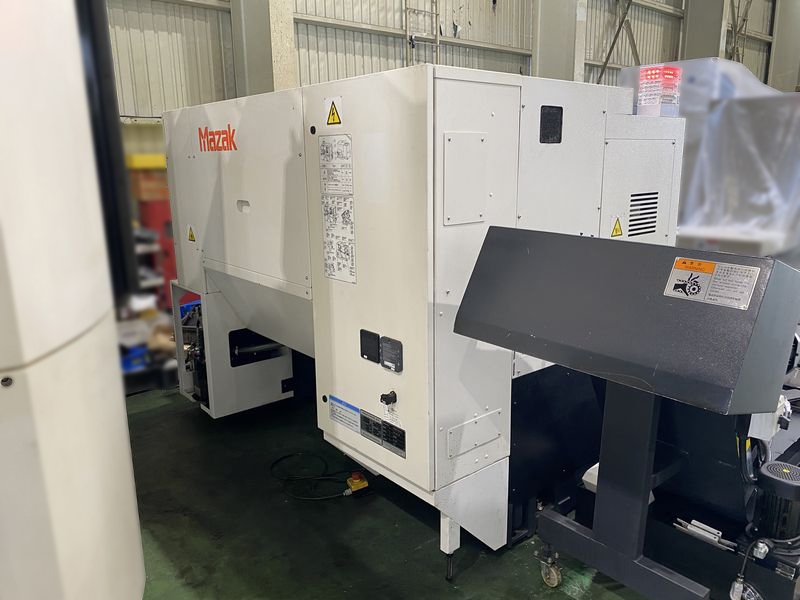

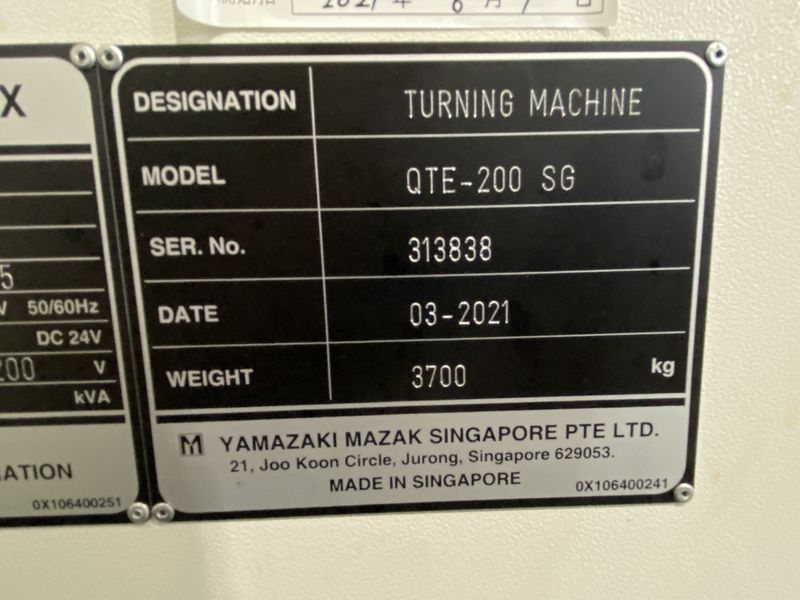

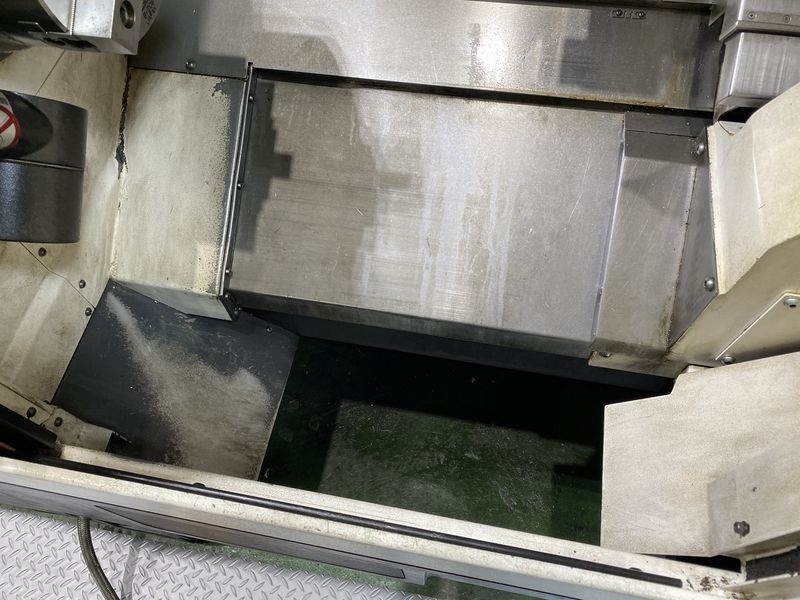

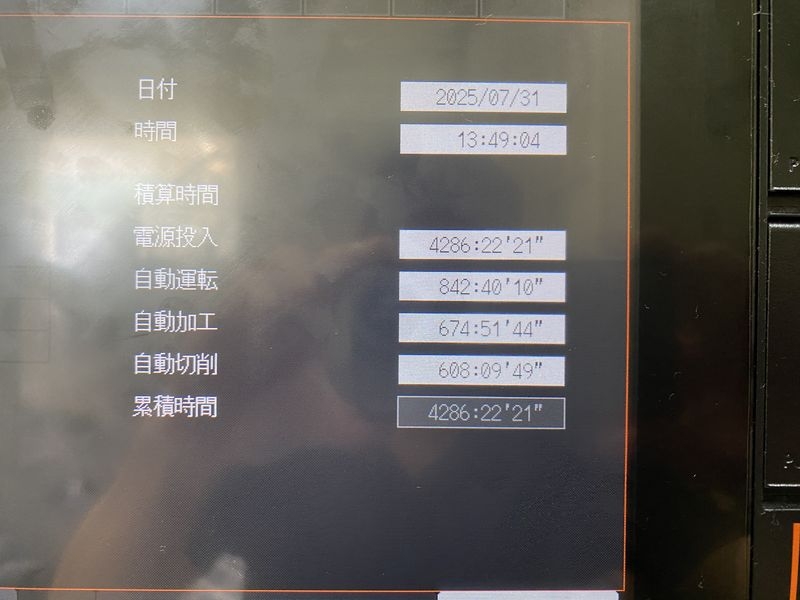

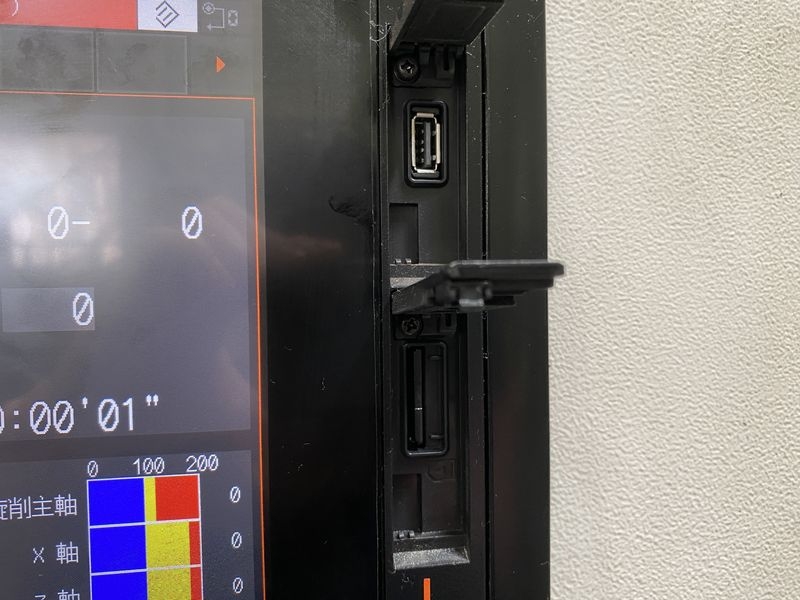

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
