DETAIL
- Item No
0000000996
- Comment

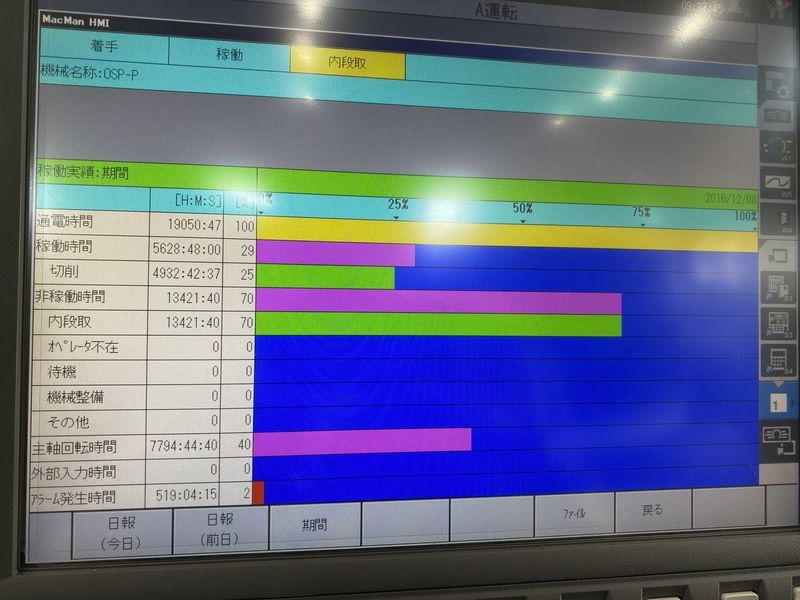

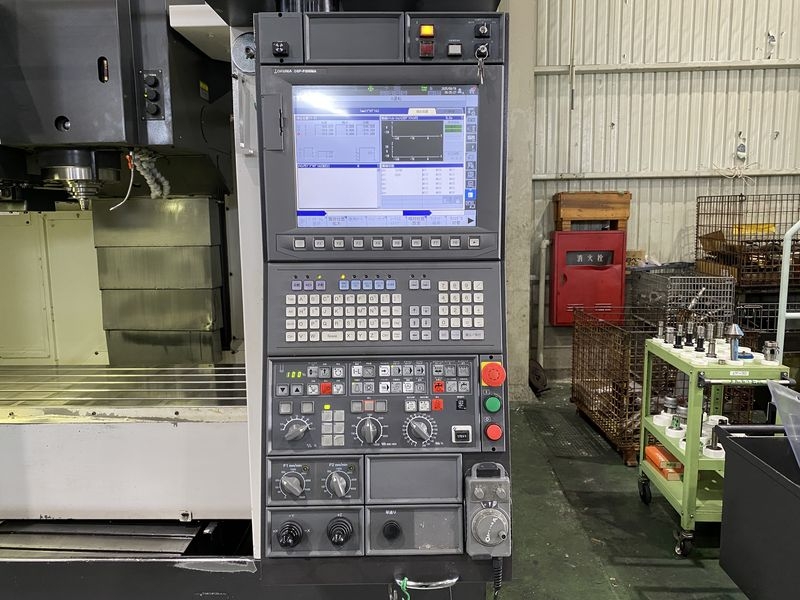

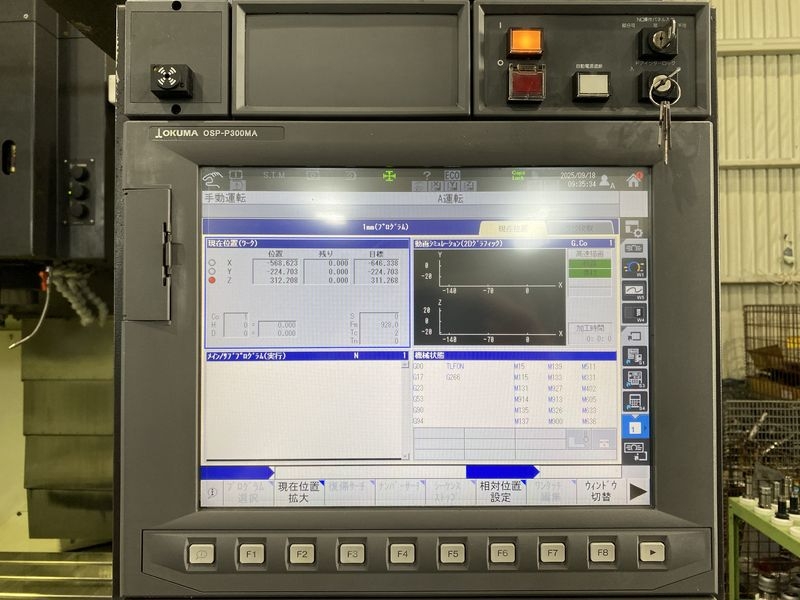

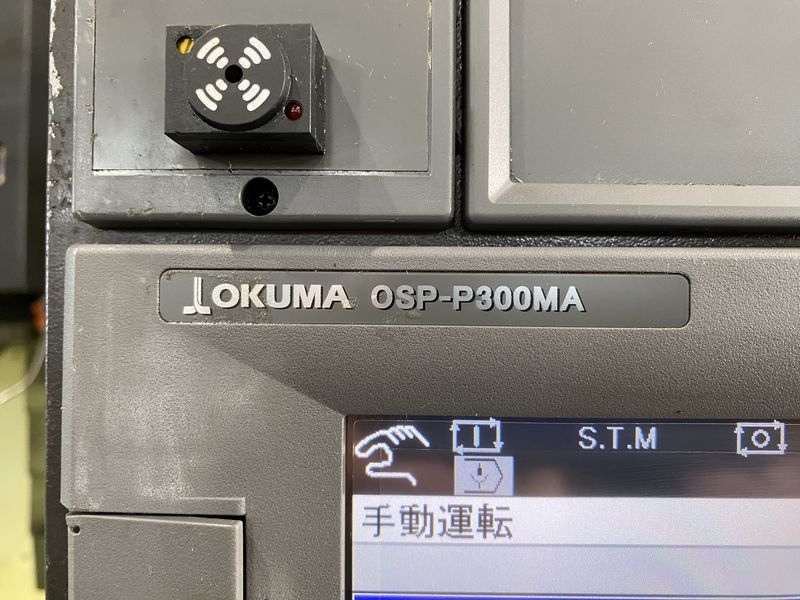

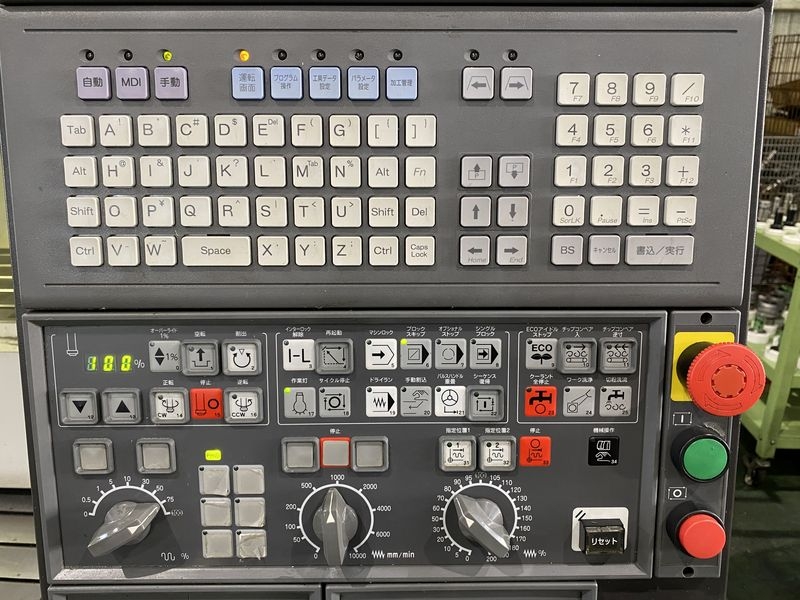

- Controller : OSP-P300MA

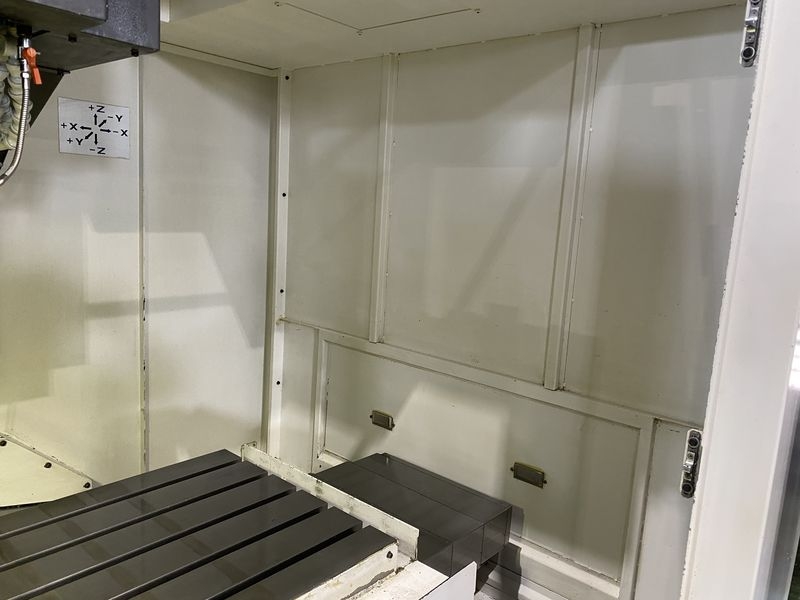

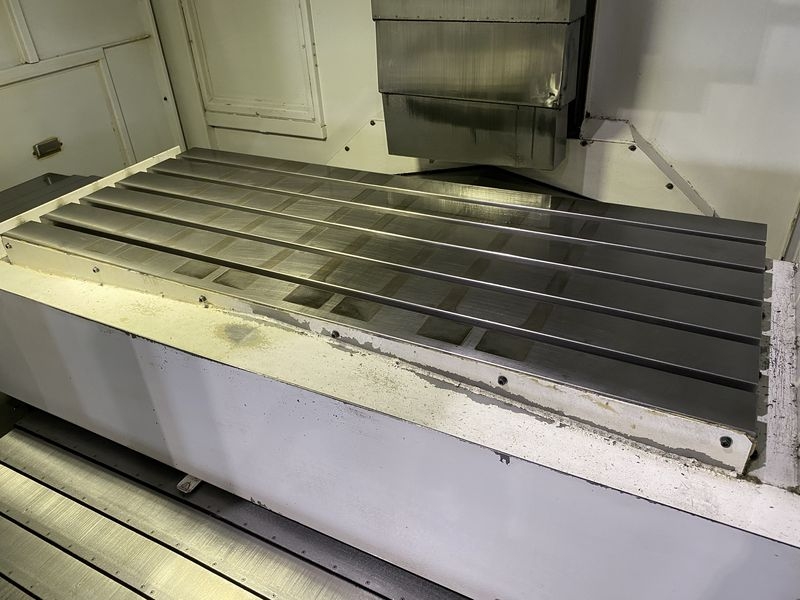

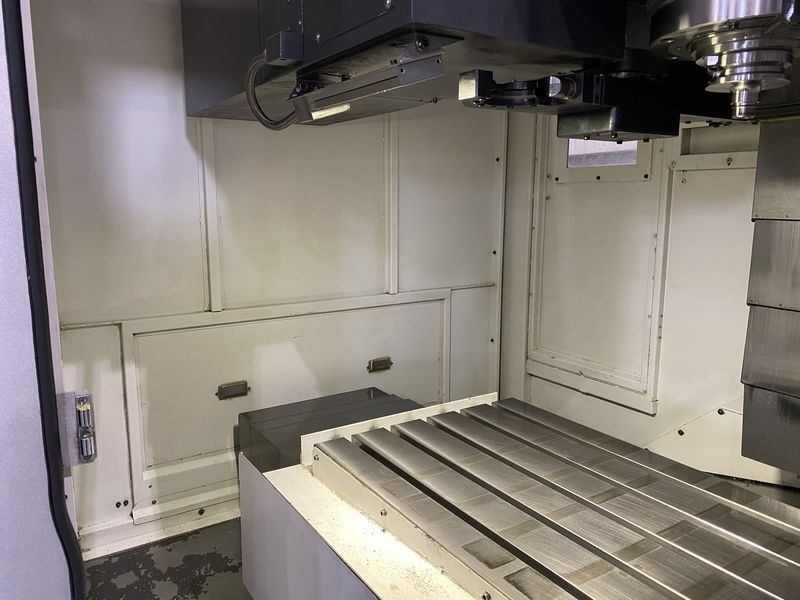

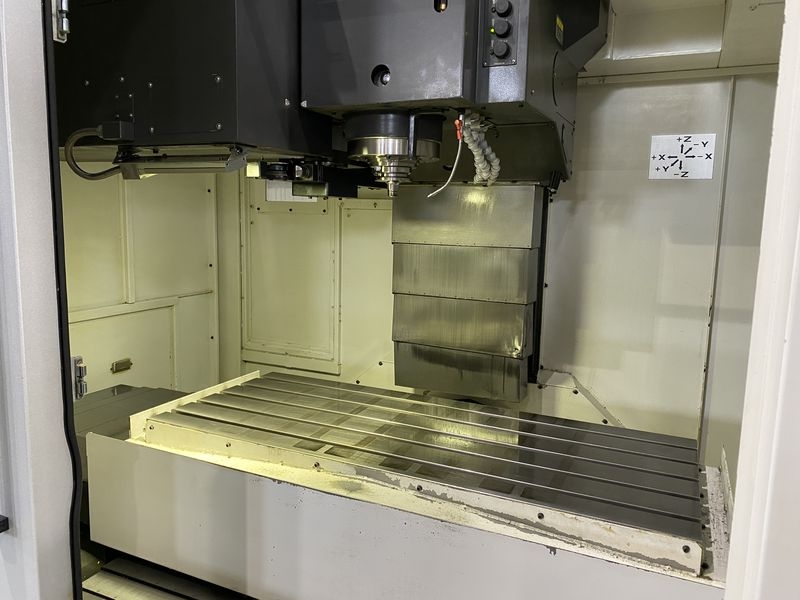

Table size: 1,350 x 560 mm
Maximum load capacity: 1,000 kg
Travel : X : 1,050, Y : 560, Z : 520 mm
Distance from spindle nose to table top : 170～690 mm

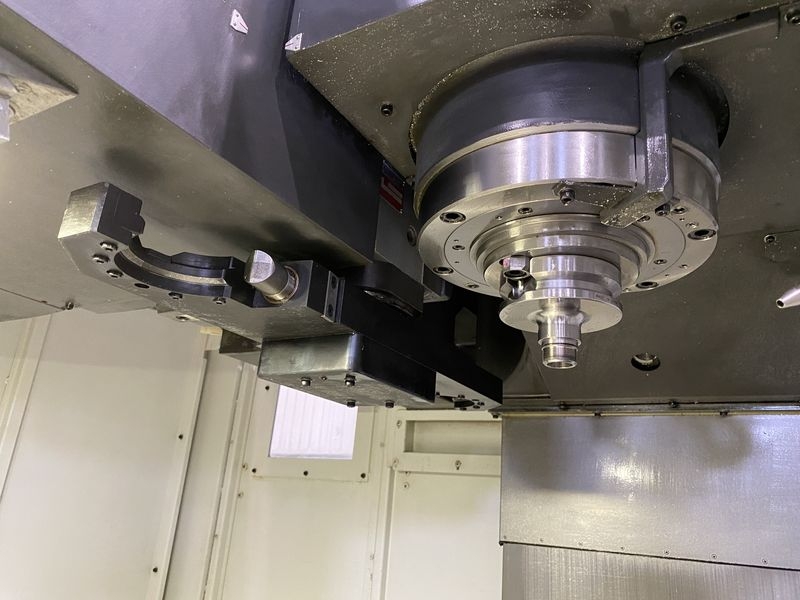

Spindle taper : BBT50 (BIG Plus)
Spindle speed : 30～6,000 rpm

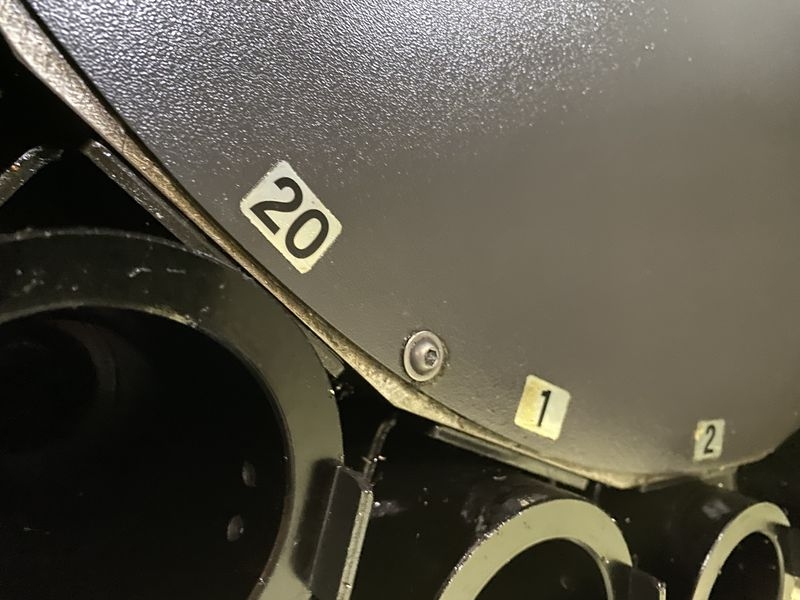

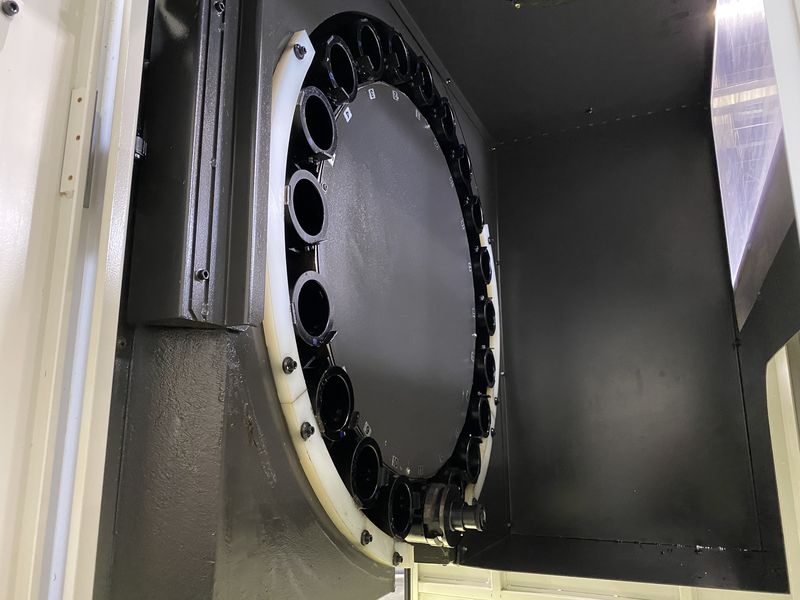

ATC : 20 stations
Floor space : 2,650 x 3,285 mm
Height : 2,760 mm
Machine weight : 9,100 kg

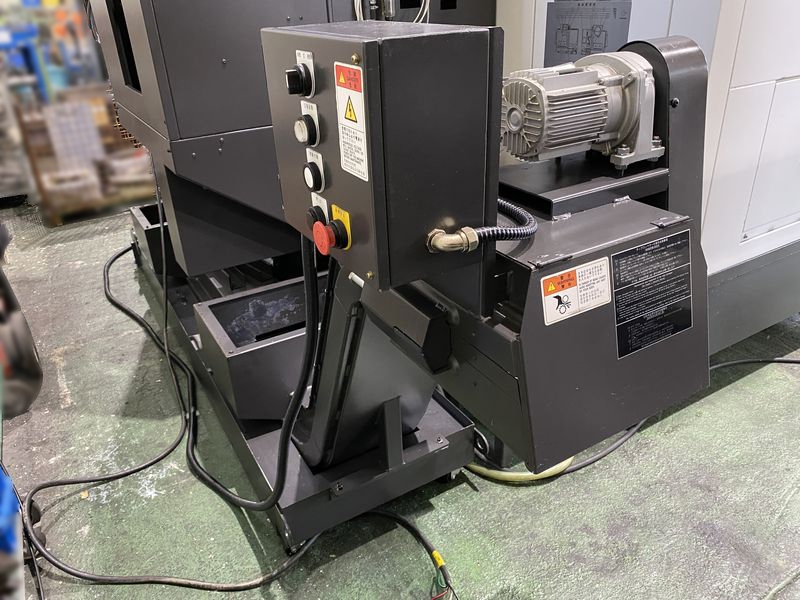

Hinged lift-up chip conveyor (rear, left discharge)

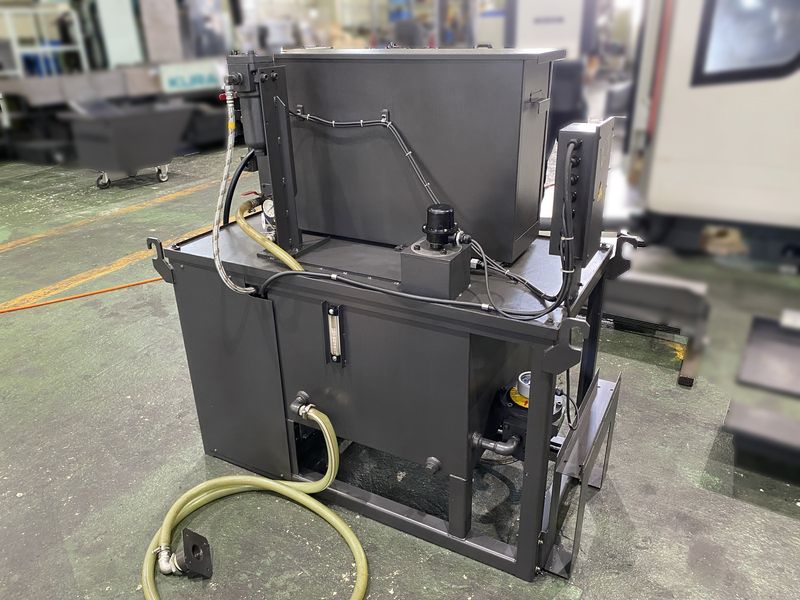

Spindle center through (coolant 7.0 MPa)
Pull stud bolt type: MAS2
Chip air blower

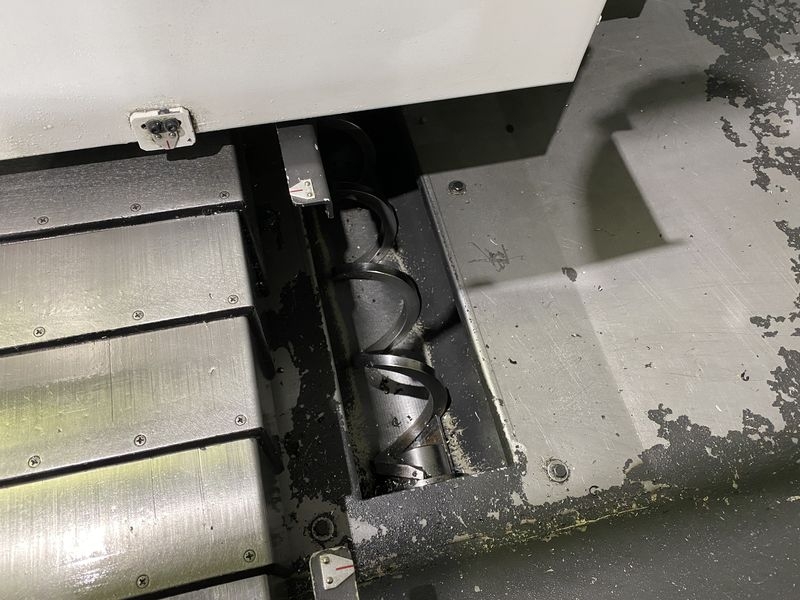

In-machine coil conveyors (two, left and right)
Helical cutting
Arbitrary angle chamfering
Synchronized tapping
Unidirectional positioning
DNC-T1
Large capacity storage: 320 mm
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
