DETAIL
- Item No
0000000999
- Type

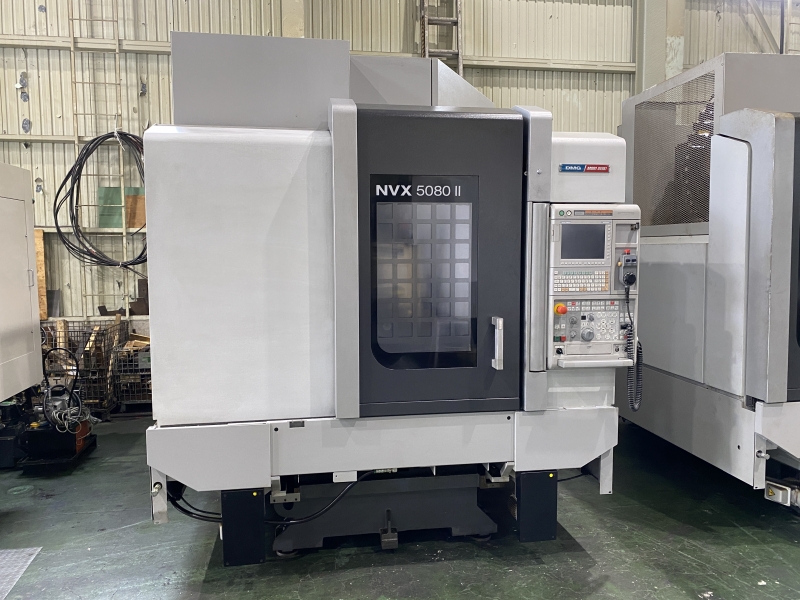

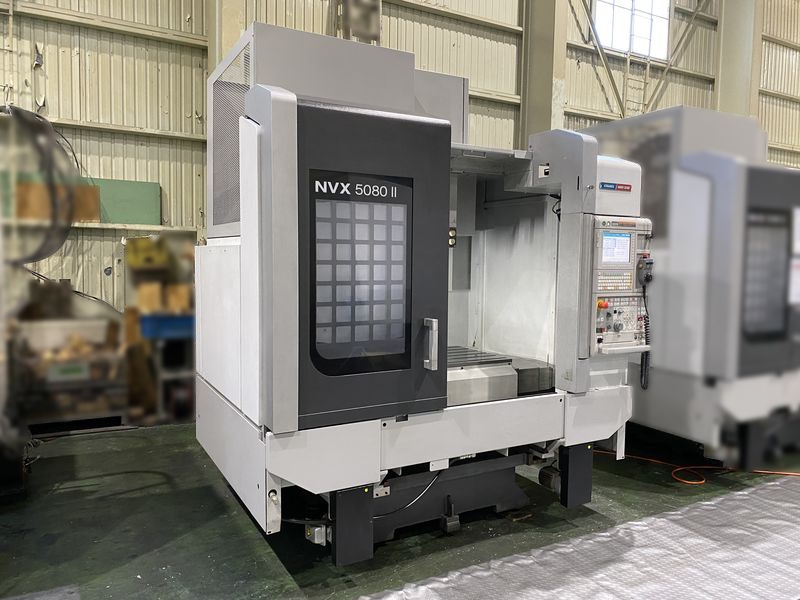

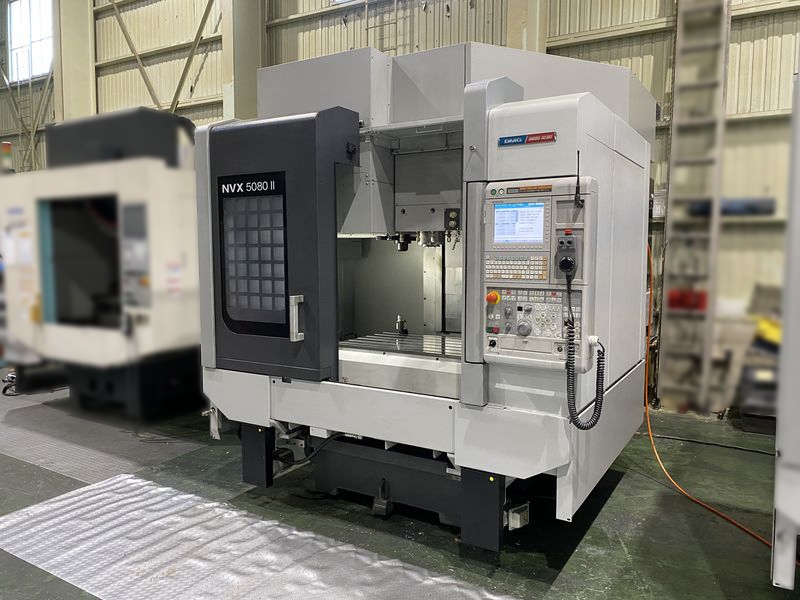

- Vertical Machining Center
- Maker
- MORI SEIKI
- Model

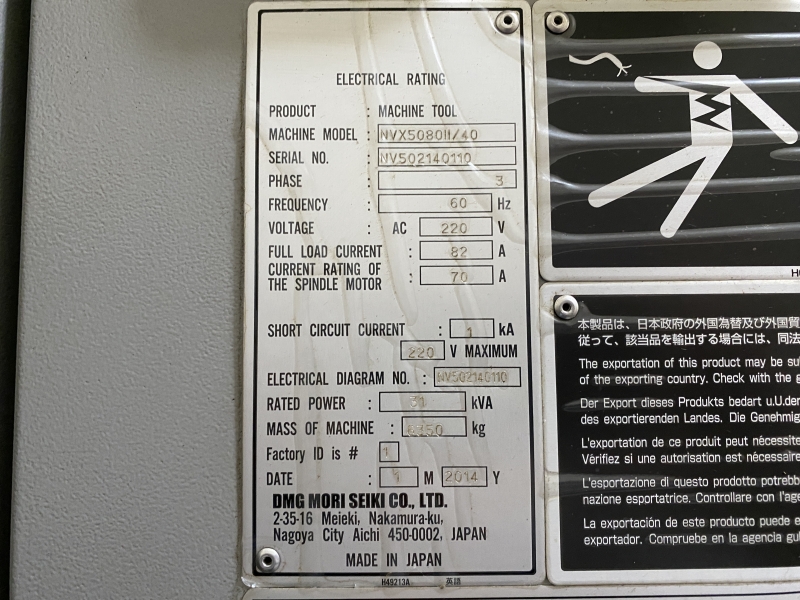

- NVX 5080II/40 (No.NV502140110)
- MFG Year
- 2014
- Movie
- Specification
- 1 2
- Comment

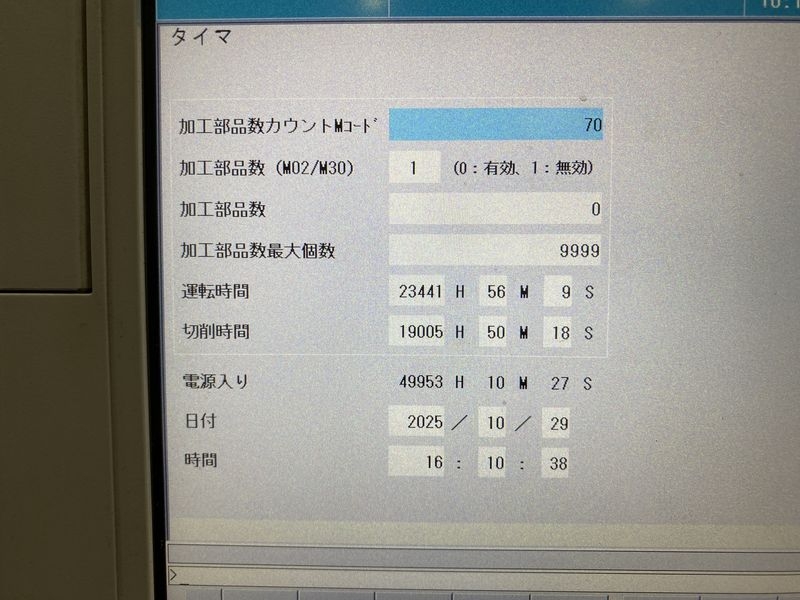

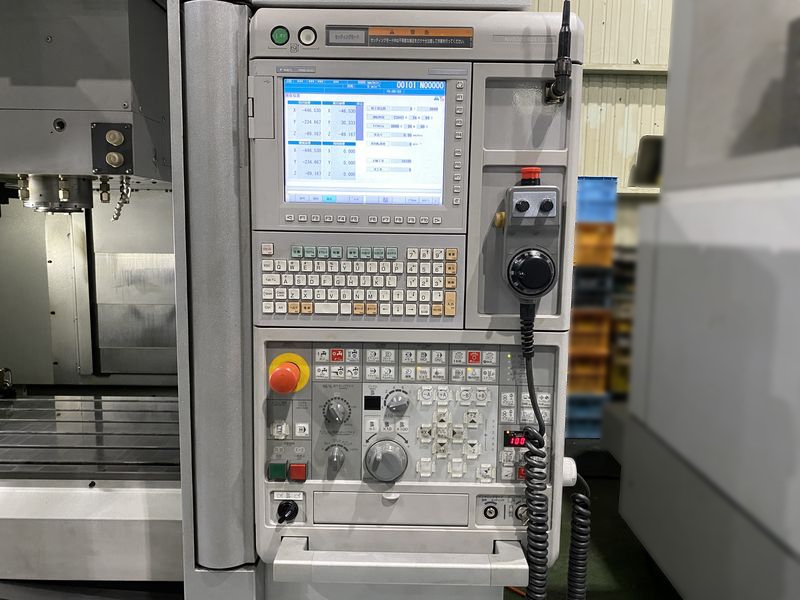

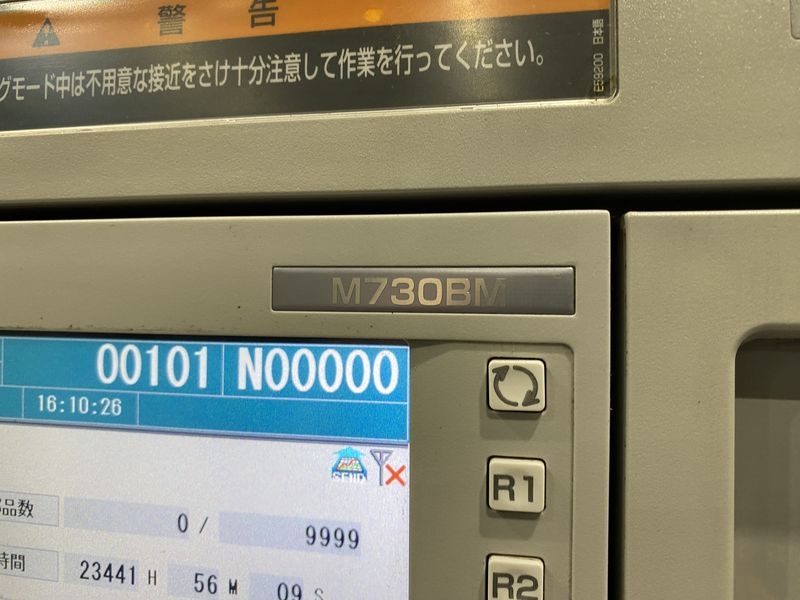

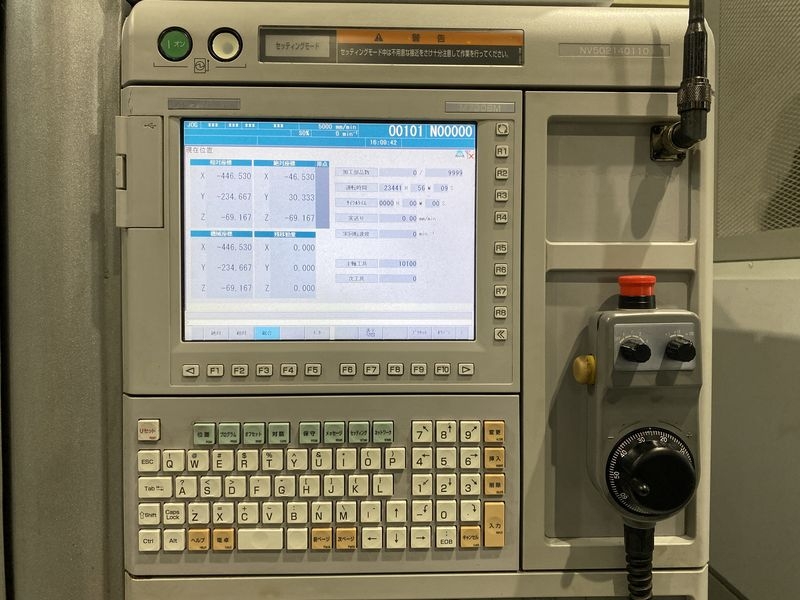

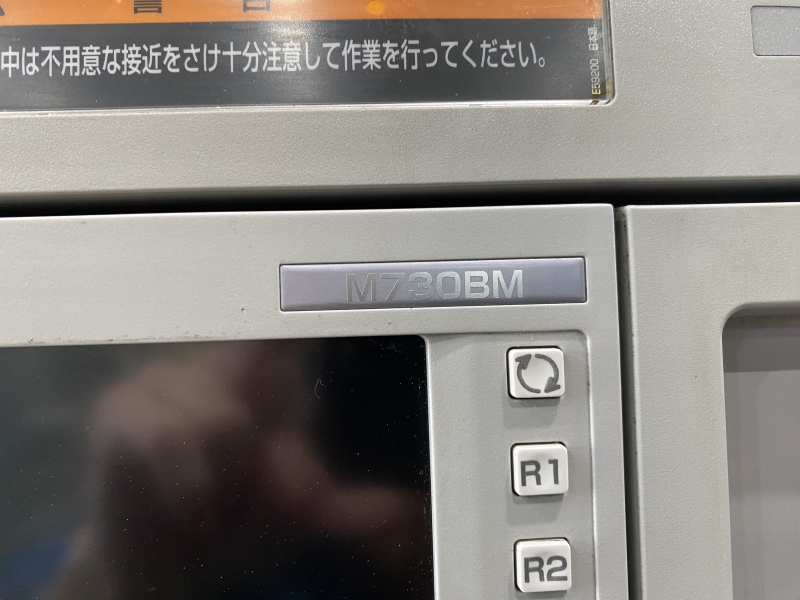

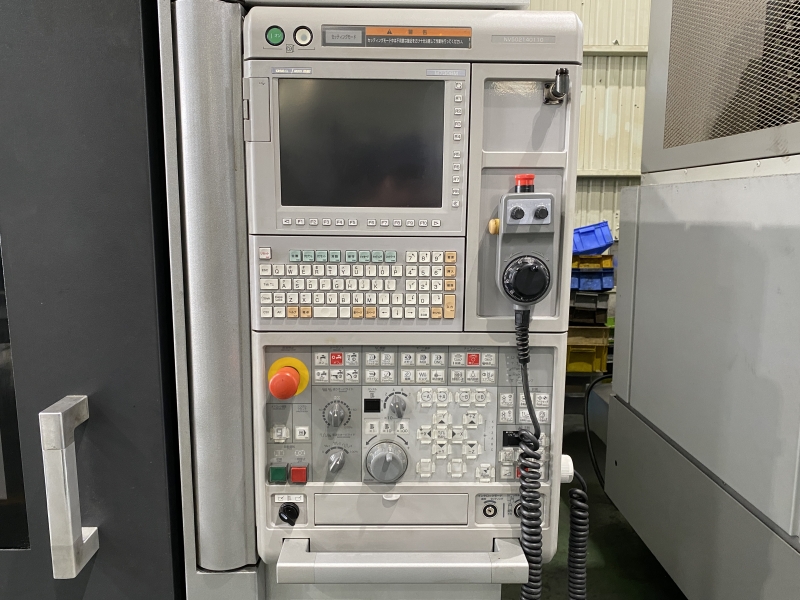

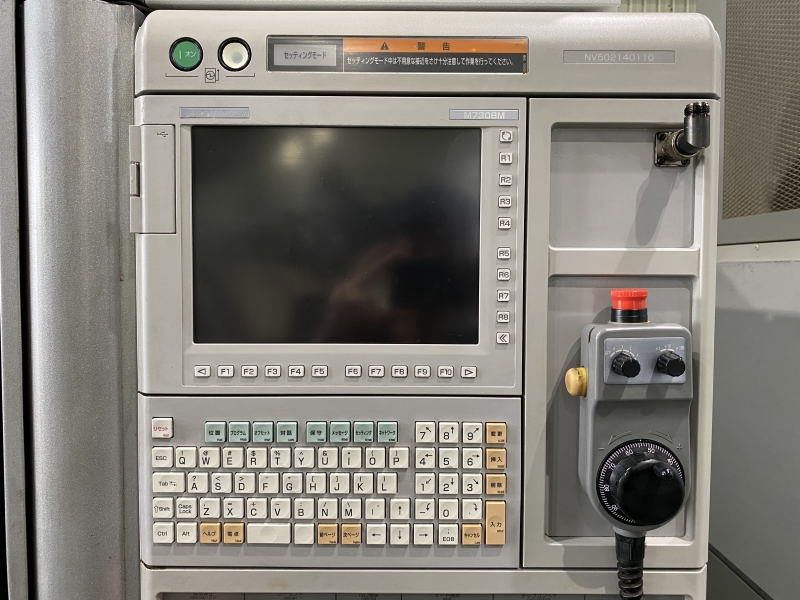

- Control : MELDAS M730BM

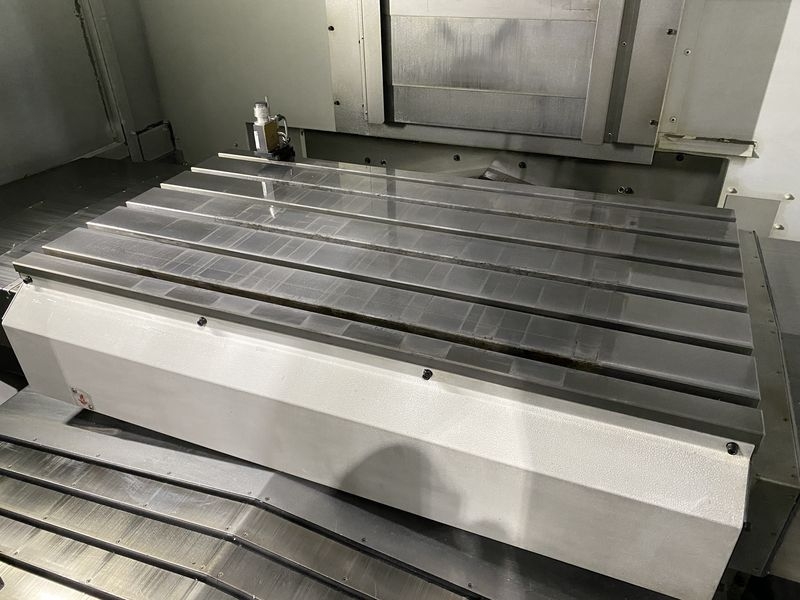

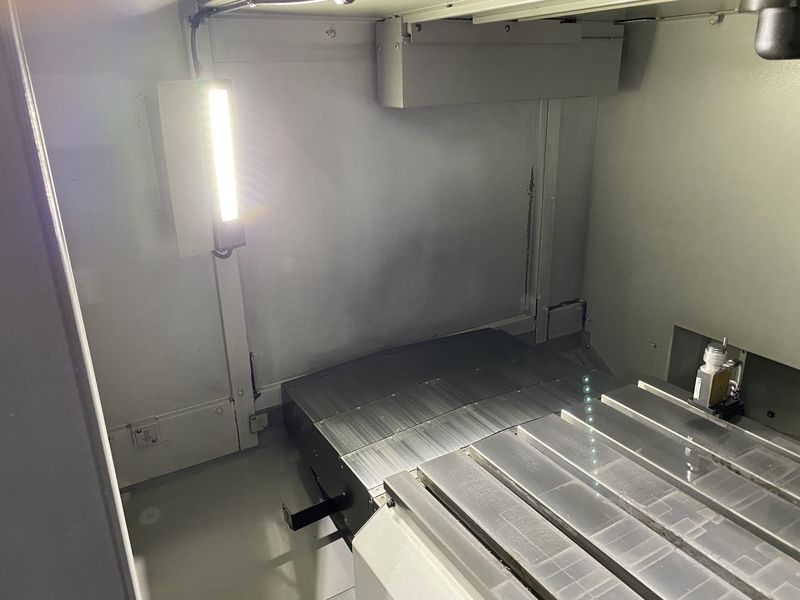

Table size : 1,100 x 600 mm
Max. load capacity : 1,000 kg
Travel X : 800 Y : 530 Z : 510 mm
Distance from spindle end to nose : 150～660 mm
Spindle speed : 13,000 rpm
Tool shank : BBT40 (BIG Plus) MAS1
ATC : 30 stations
Required floor space : 3,314×3,613 mm
Machine height : 2,597 mm
Machine weight : 6,400 kg

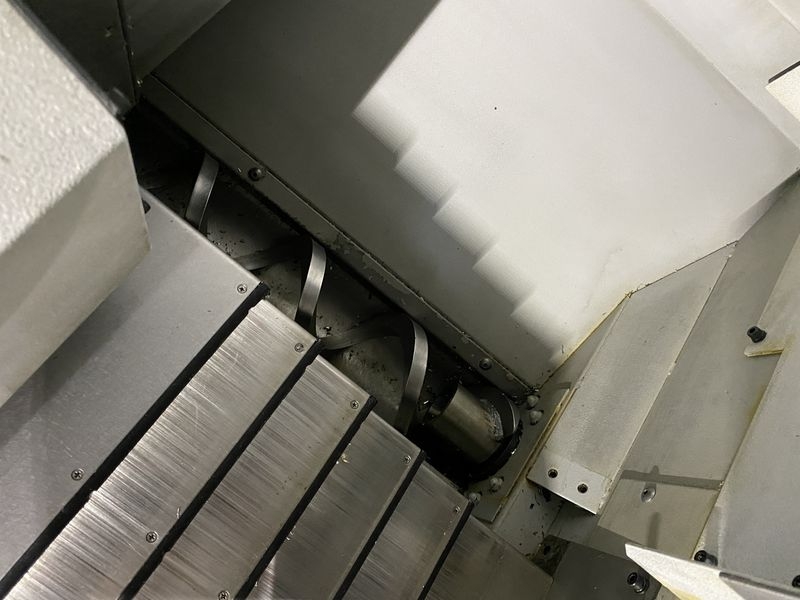

In-machine coil conveyors (two, left and right)

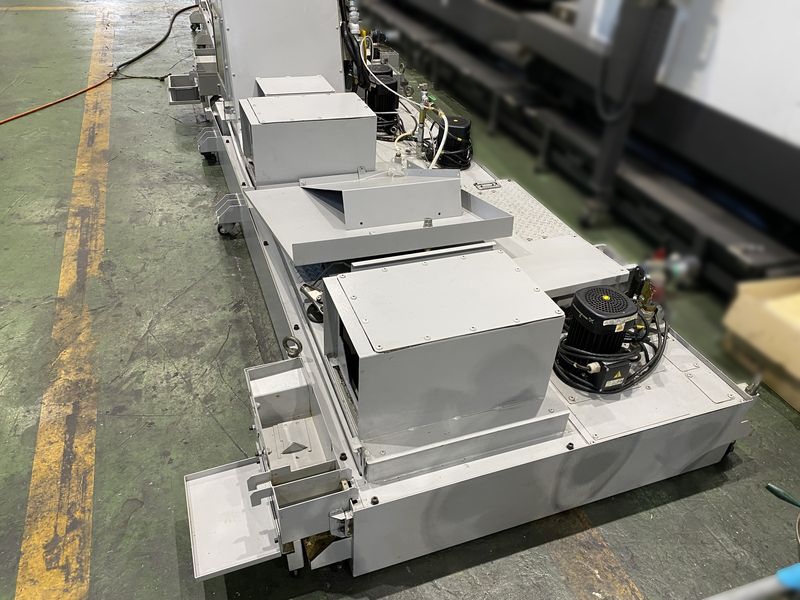

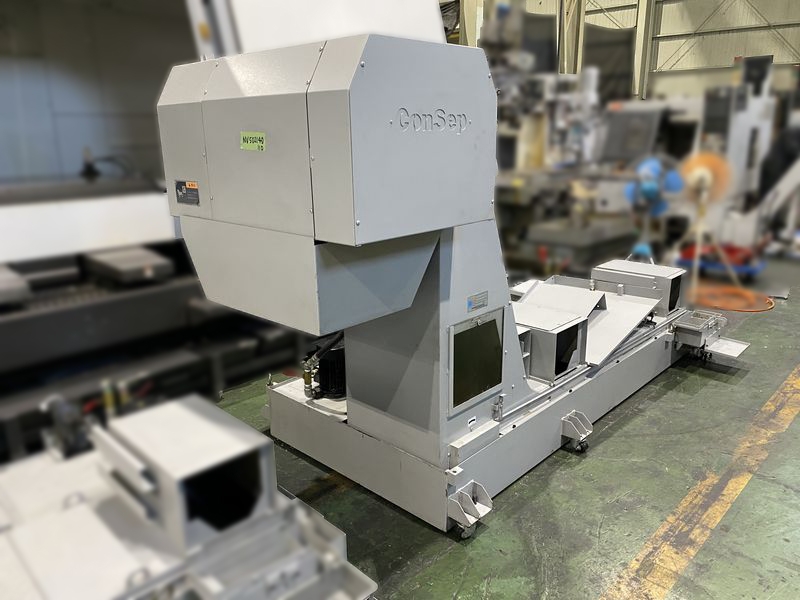

Scraper-type chip conveyor (rear discharge, left)

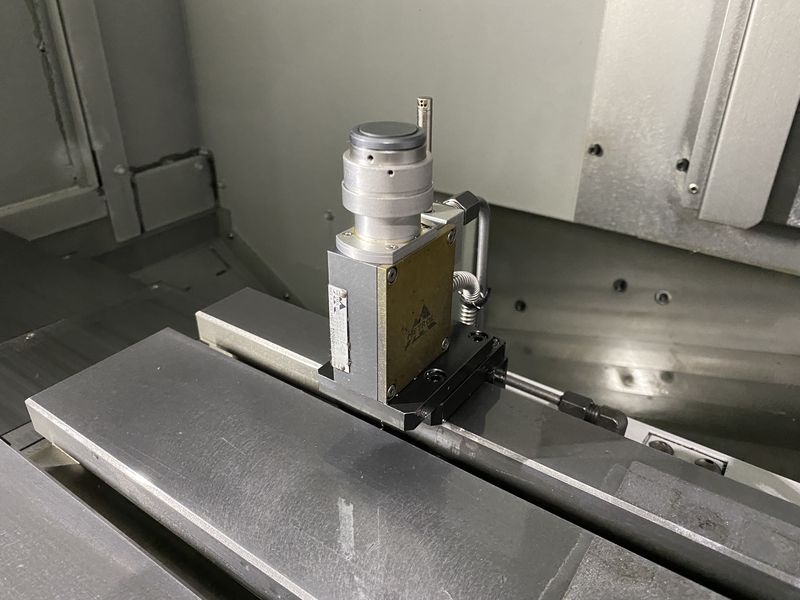

Tool length compensation and tool breakage detection

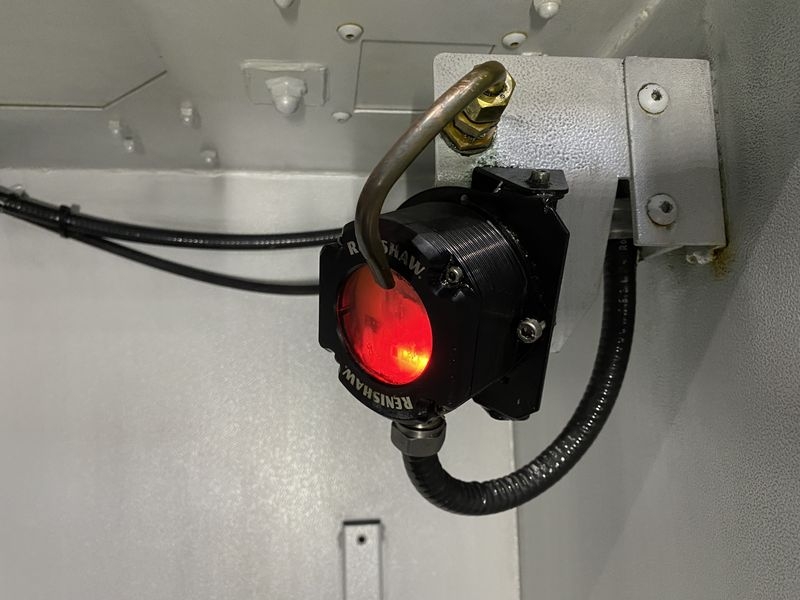

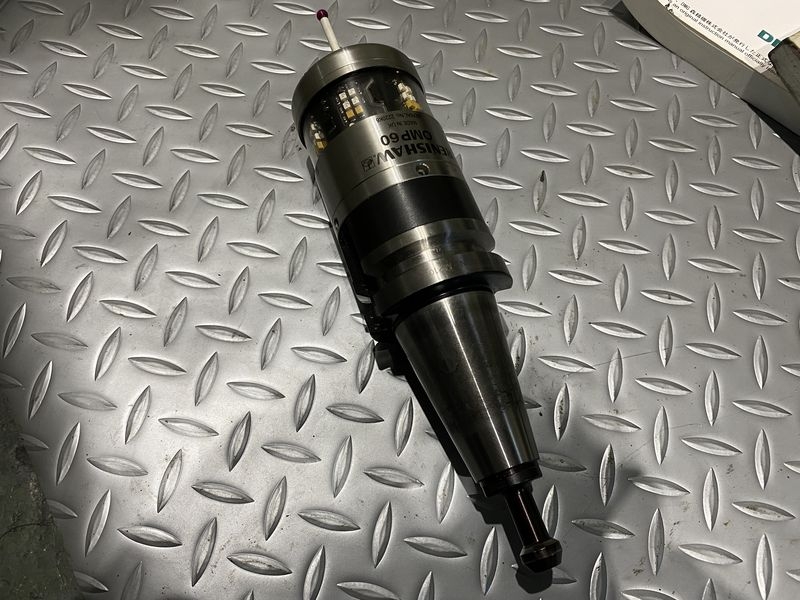

Touch sensor (Renishaw OMP60)
MAPPS IV
Program memory capacity: 600m
Number of registered programs: 400
Custom macro common variables: 200
Coordinate rotation
Relocation detection function
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
