DETAIL
- Item No
0000001033
- Type

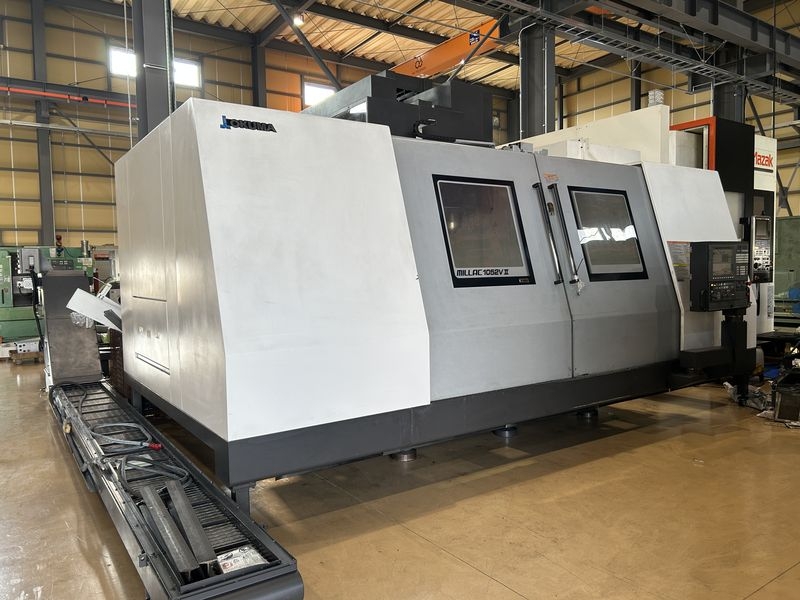

- Vertical Machining Center
- Maker
- OKUMA
- Model

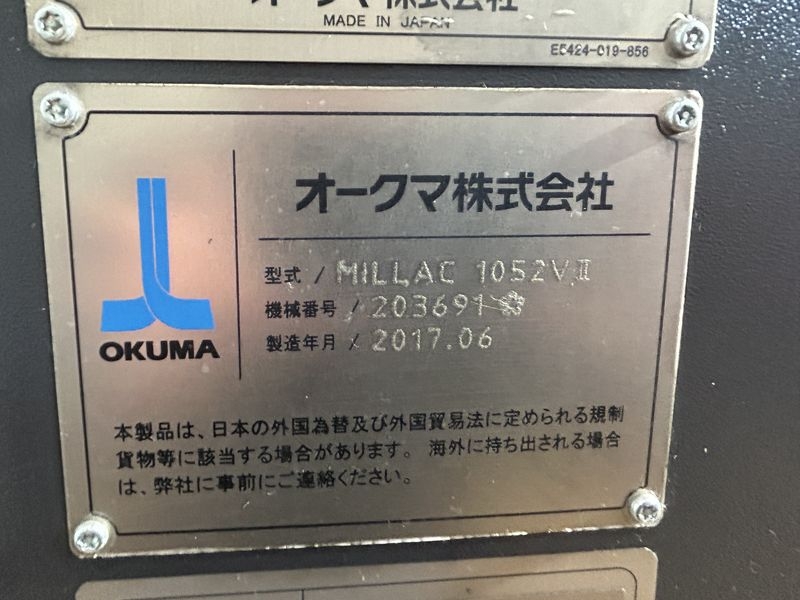

- MILLAC-1052VⅡ
- MFG Year
- 2017
- Movie
- Specification
- 1 2
- Comment

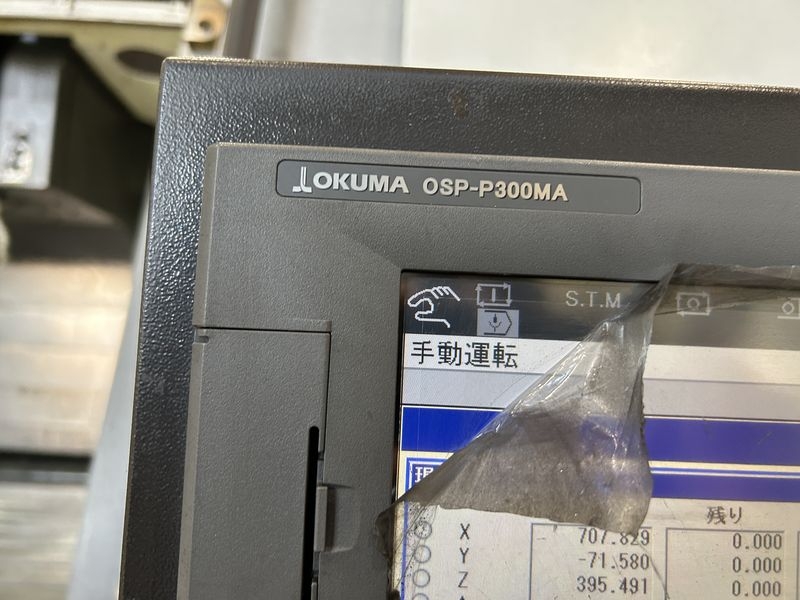

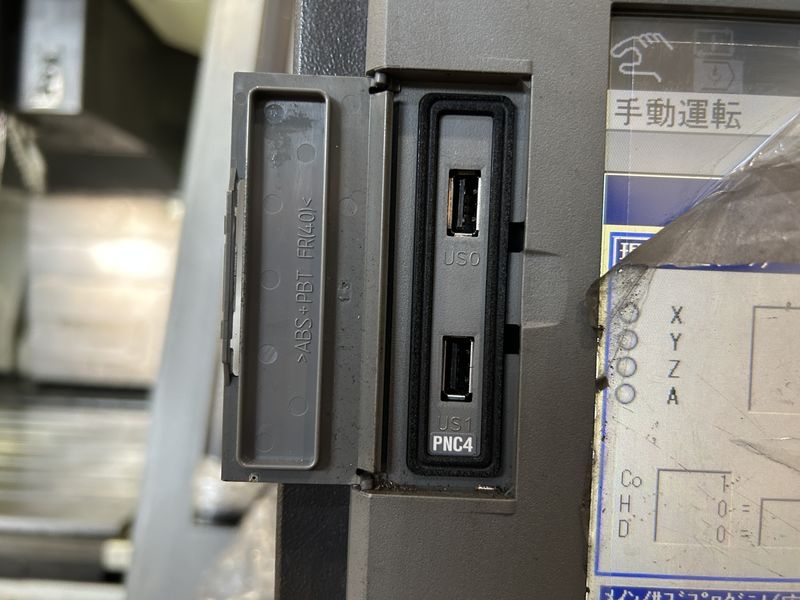

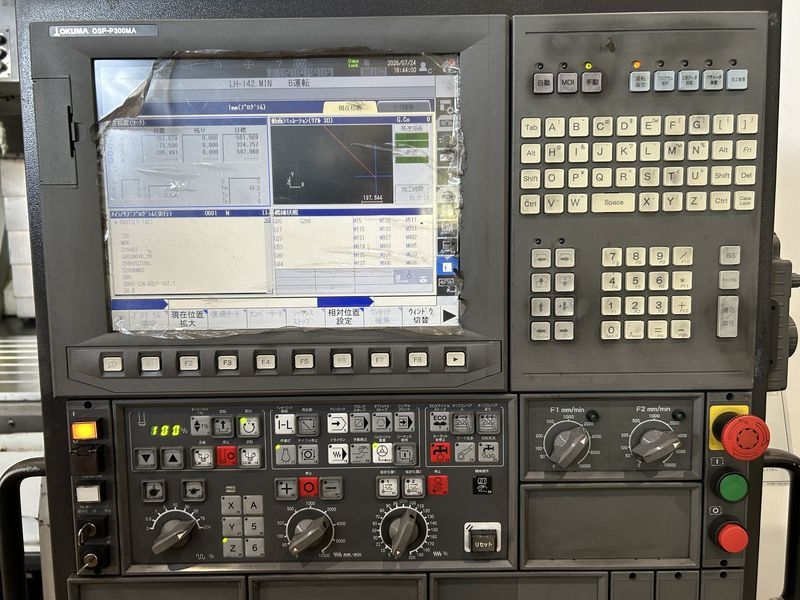

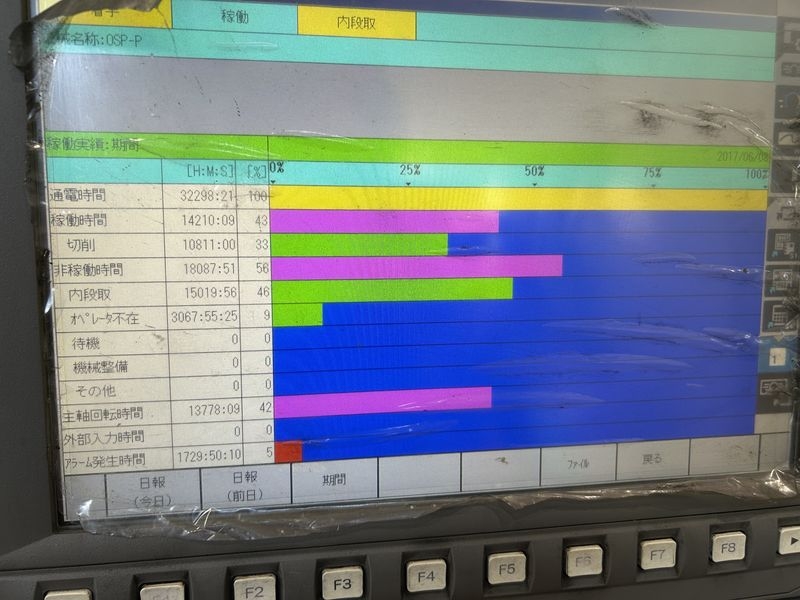

- Controller: OSP-P300MA

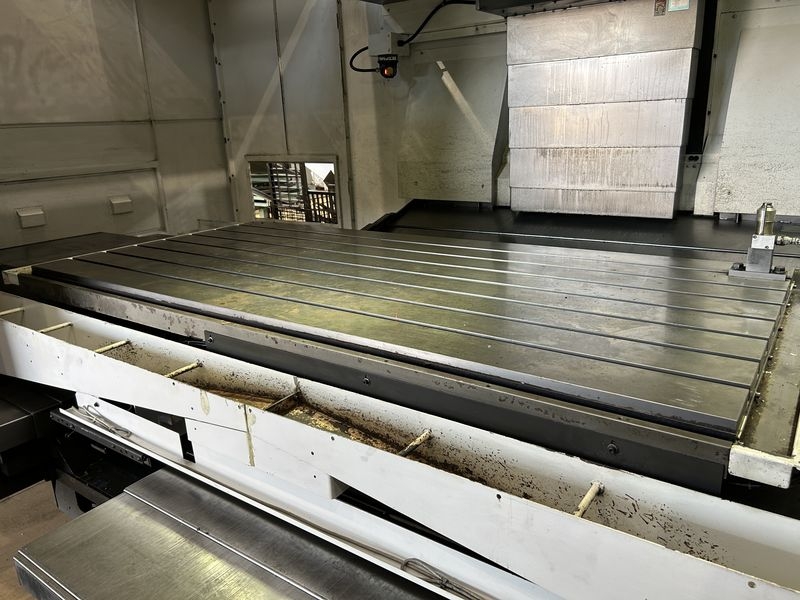

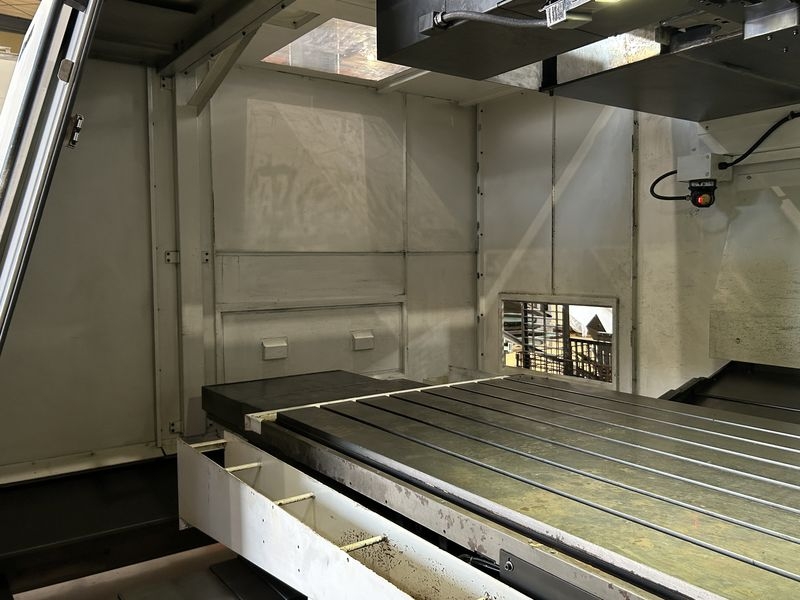

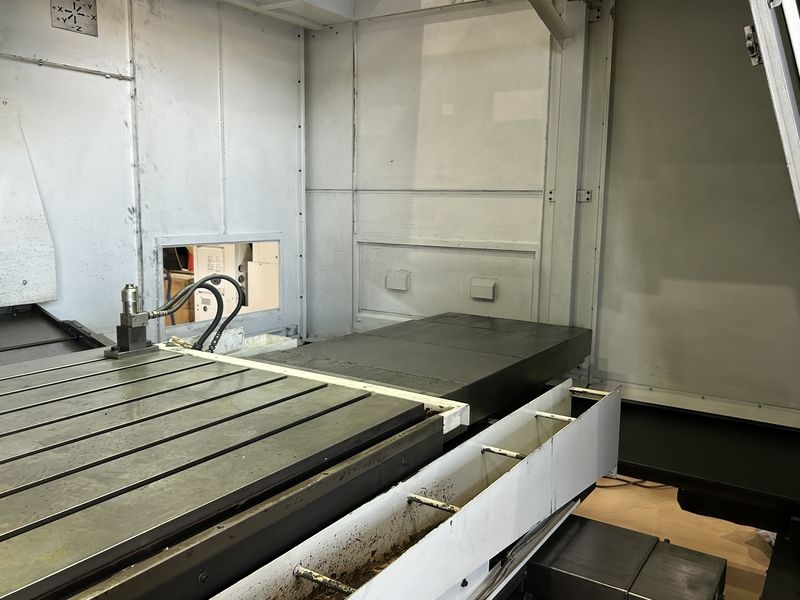

Table size: 2,200 x 1,050 mm
(with additional 2‑axis tilting table)
Max. loading capacity: 5,000 kg
Travel (X, Y, Z): 2,050 x 1,060 x 800 mm
Distance from spindle nose to table top: 200～1,000 mm

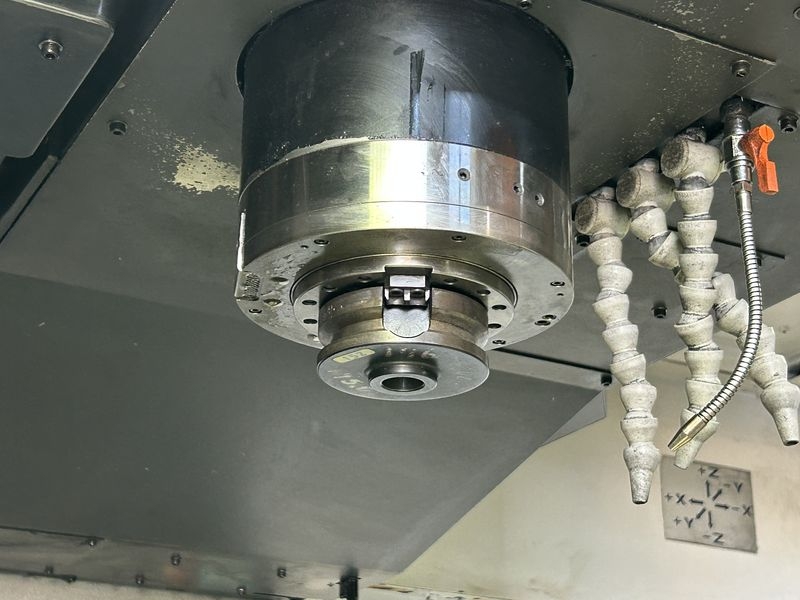

Spindle taper: BBT50 (BIG Plus)
Spindle speed: 50–12,000 rpm
Tool storage capacity: 54 tools
Required floor space: 6,760 × 4,470 mm
Height: 3,520 mm
Machine weight: 25,200 kg

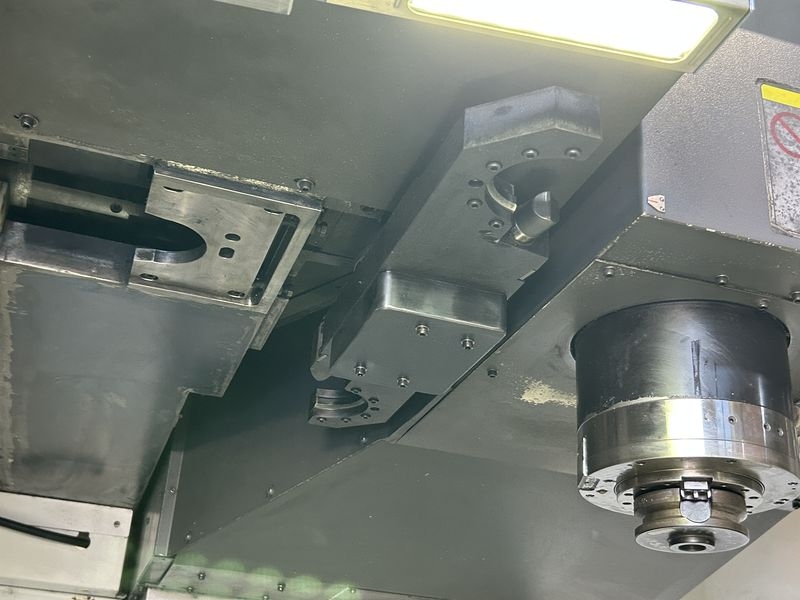

Additional 1‑axis rotary table included

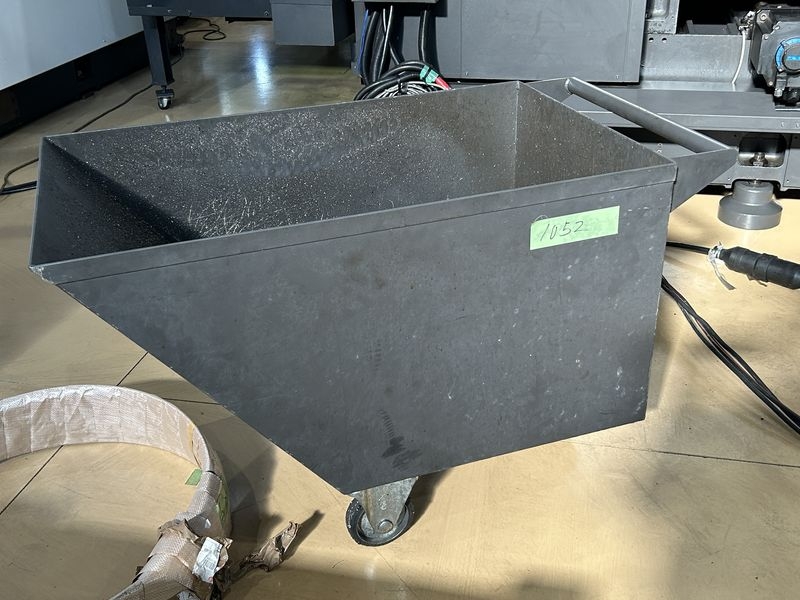

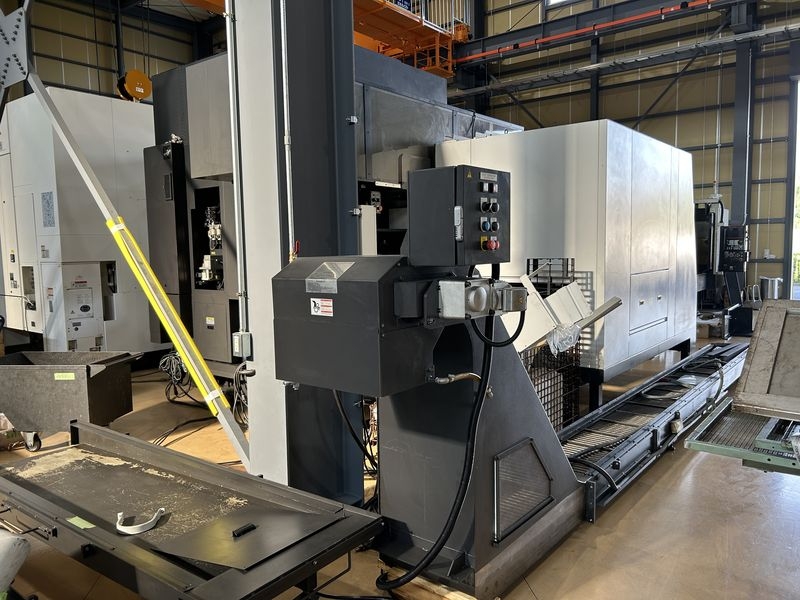

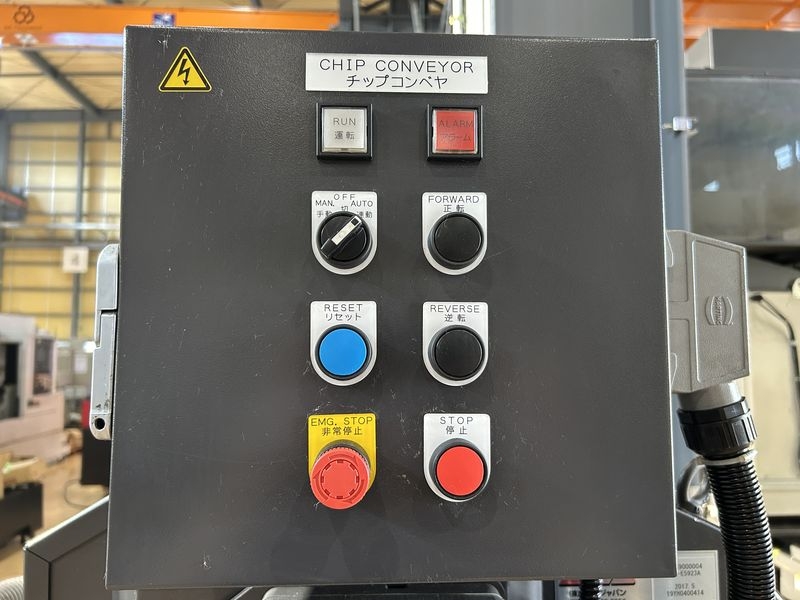

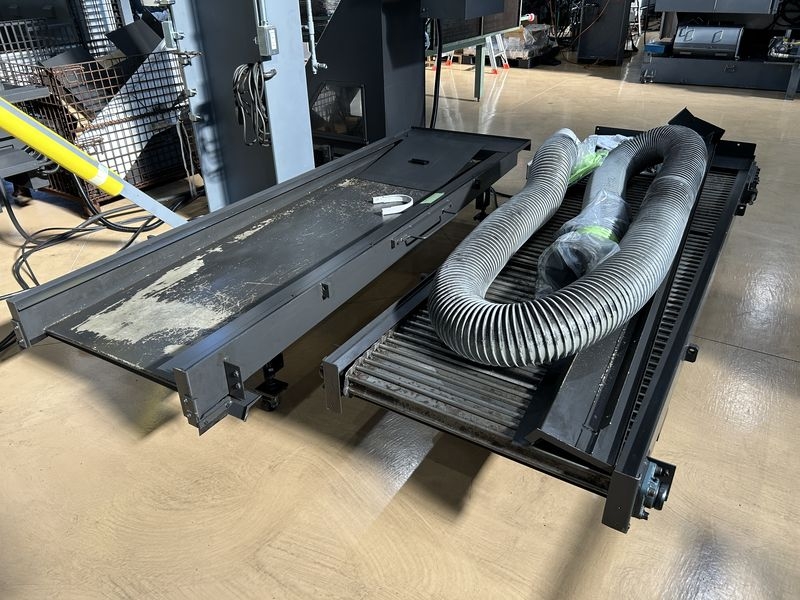

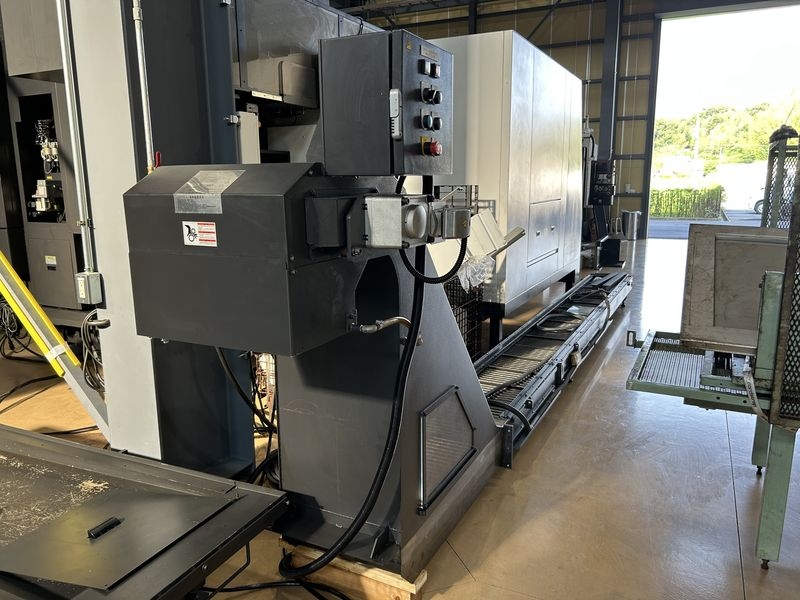

Chip conveyor (left‑side discharge)
Spindle center‑through (air & coolant 7.0 MPa)
Tool breakage detection and tool length measurement

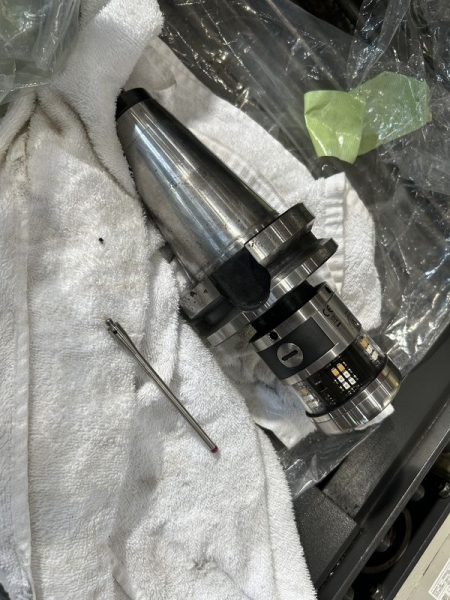

Touch probe (for workpiece measurement)
Helical cutting
Synchronous tapping II
Programmable mirror image
Arbitrary‑angle chamfering function
Cylindrical side machining function
SUPER‑NURBUS function
Mist collector
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
